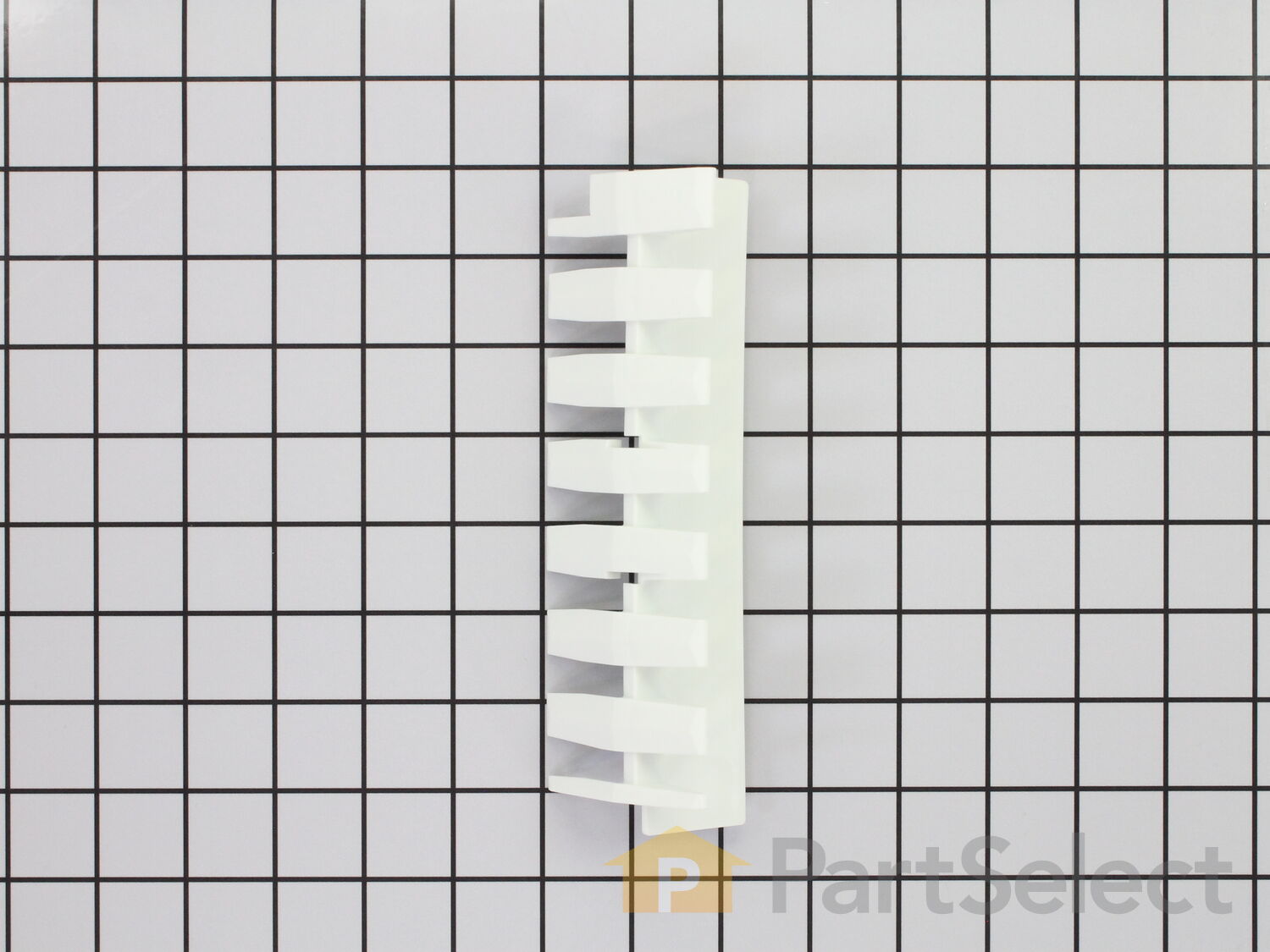

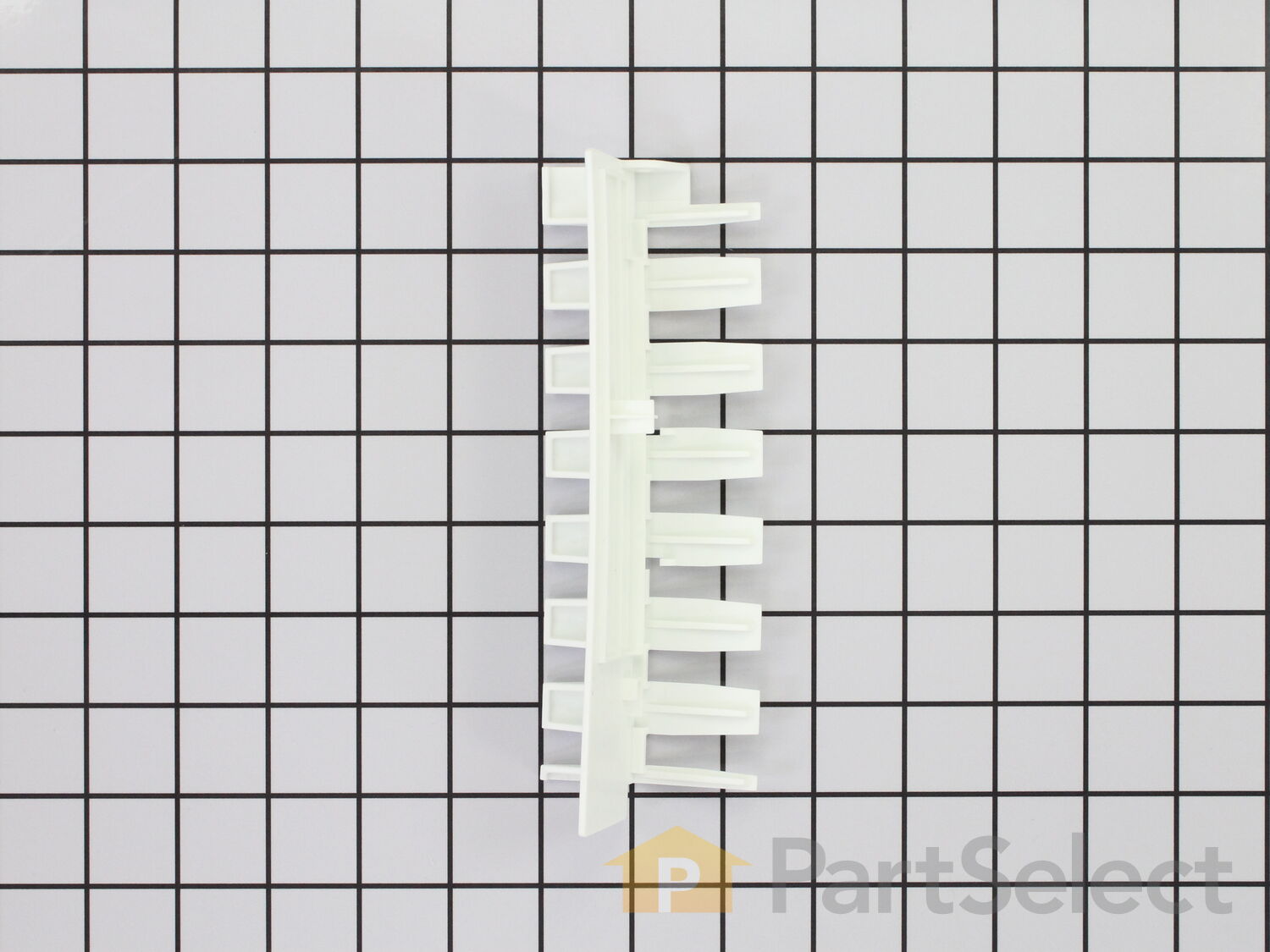

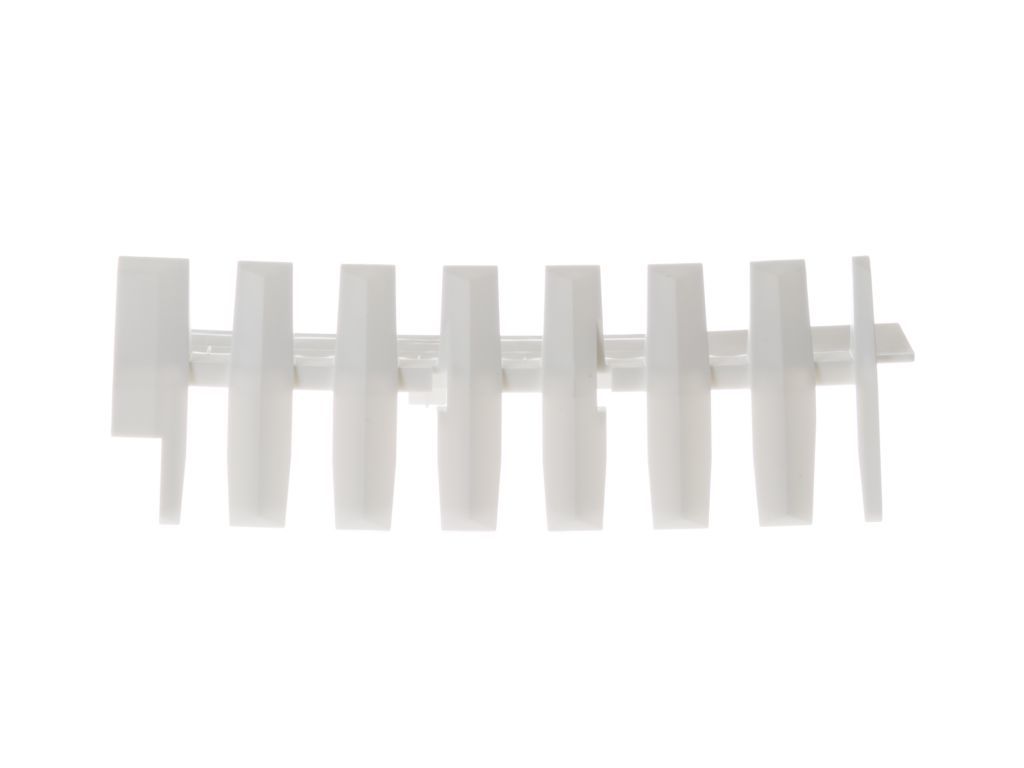

This part strips the ice from the icemaker mold during the ejection cycle. Used on rear mount icemakers.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Ice maker not making ice | Ice maker won’t dispense ice
This part works with the following products:
Refrigerator.
Part# WR29X10085 replaces these:
AP4413586, 1477633, WR29X10085, WR02X11548
Customer Reviews
Average Rating:
★★★★★
★★★★★
13 Reviews
4.8
Filter By Rating:
5 Stars
11
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Rose Ann P - February 25, 2019
Verified Purchase
Ice maker stripper arm
Received in good condition and easy to install. Ice maker working great!
★★★★★
★★★★★
Tim P - February 6, 2019
Verified Purchase
Worked as expected
All good
★★★★★
★★★★★
Joel B - January 29, 2019
Verified Purchase
Ice maker Part
The part works great. Installation was easy
.The ice maker is working better than ever.
★★★★★
★★★★★
Richard L - May 22, 2019
Verified Purchase
ice maker repair
Working great! Easy fix FAST SHIPPING!!!!!
★★★★★
★★★★★
Stephen P - September 30, 2020
Verified Purchase
Ice maker stripper arm replacemet
The part was a perfect replacement simple to install and the ice maker works great.
★★★★★
★★★★★
Percival M - October 19, 2020
Verified Purchase
easy repair
Part in great condition. Worked as expected
★★★★★
★★★★★
Anthony M - April 16, 2019
Verified Purchase
Simple install and it worked
Replacement part worked like a charm. Would use Part Select again.
★★★★★
★★★★★
Sander S - October 24, 2018
Verified Purchase
Easy repair
Part worked out great. Fast delivery.
★★★★★
★★★★★
John S - October 29, 2018
Verified Purchase
Easy
It was easy to pop in new part from YouTube instructions. I actually ignored removing the ice maker and just installed the new part with the ice maker was in place in back of freezer. The plastic fingers seem to take a lot of stress which is why old part broke off fingers and eventually fell off. I hope the new part lasts.
★★★★★
★★★★★
Myriam R - September 18, 2019
Verified Purchase
Ice maker stripper arm got us ice again!
The diagram of the refrigerator online was VERY helpful! Instead of calling an appliances repair company, I ordered the part and put it in myself after following the instructions on YouTube! Amazing what you can do yourself and thank you PartSelect!
< Prev
1
2
Next >
Customer Repair Stories
Average Repair Rating: 4.2 / 5.0, 9 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
The left three tines bind and break off because they don't match the part removing the ice.
The right side of the three left three tines must be shaved about 1/8" to allow the ice remover blades to pass unimpeded.The part should be manufactured better.
Robert from CHARLESTON, SC
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Icemaker stripper arm tine broke off (by me), causing ice to remain and not discharge normally. The cause was a stripperarm tine becoming caught under an opposing tine in the icemaker preventing it from discharging ice altogether.
Installed the new stripper arm per instructions - an easy installation. After a few cycles the original problem happened again, the stripper arm tine caught under an opposing tine stopping the unit from operating. I removed the stripper arm, after marking where it was caught, and filed it down so it wouldn't catch anymore. Icemaker works
... Read morefine now. Troubleshooting tip. If a stripper arm tine is caught under an opposing tine, gently slide a screwdriver between them to release it without breaking the tine. Remove the arm, file it down 1-3 mm, and reinstall.
Read less
Errol from Mill Creek, WA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
45 of 61 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
ice maker was making no ice.
snapped in the new stripper arm where the defected one was.
Amy from Henderson, NY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
3 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Icemaker iced up completely; wouldn't drop ice. Water was dripping all over freezer.
I had to thaw the icemaker with a heat gun to remove it. Prior to repair, I watched your video of removal and replacement of icemaker. Found everything to be as explained in video. It was not necessary to remove the cover plate below the ice maker, since the electrical connection was visible and available after removing the ice maker.
... Read more Except for dropped screw, everything went as planned. Presently making ice at a frantic pace.
Since I'm confined to a wheelchair, my wife had to remove the icemaker which was no problem then with it on the table I was able to install the new stripper arm which was also no problem. The icemaker now works great and thanks to Partselect for their quick delivery and great prices.
Walter from Hixson, TN
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
2 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dead ice maker.
Replaced ice maker. Required the removal of one screw and disconecting the control cable.
tab on right top, flat insert on left. Pull up, toward you and to the right. It pops off. No tools needed.
Kevin from Anaheim, CA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
6 of 10 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
broken tine on stripper left one cube to jam the ice maker
There were no fastening hardware. The plastic stripper just snaps in place. I had to be patient and could not get it out until I put upward pressure on the stripper.
William from Abita Springs, LA
Difficulty Level:
A Bit Difficult
Total Repair Time:
Less than 15 mins
10 of 18 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water leaking into ice compartment; stripper broken
We called a repair man in to do the work. Not sure what all he used, but he was finished within an hour.
Ask our experts a question about this part and we'll get back to you as soon as possible!
7 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Hubert
October 31, 2017
How does the stripper arm go back in the ice maker? I.E. Which side snaps in and where? I assume the side with the little extenders goes to back. Give me the details step by step. Thanks
For model number PCF23MGWABB
Hi Hubert, Thank you for the question. First you need to remove the ice maker from the appliance.Once removed you can bend or flex the stripper arm a bit to release it from the slot in the front housing of the ice maker. Next release the other end of the stripper from the pin on the end of the ice maker. To install the new one you need to line up the end of the stripper arm with the small hole with the pin on the ice maker, insert the pin on the ice maker into the hole on the end of the stripper arm.Next flex the arm a bit to fit the front of the arm stripper into the slot at the front housing of the icemaker. Good luck with the repair!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Debbie
January 16, 2018
I need to replace the stripper arm for our ice maker, model wr30x10044 in our GE profile refrigerator.
For model number PSS26LSRESS
Hi Debbie,
Thank you for your question. There is a video on our website that you can reference on how to install the stripper arm. The refrigerator in the video may not show exactly like the one you have, but it will give you a general idea on how to install the part. You will find the video under part number PS2378115. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Jerry
February 25, 2018
Where do I find the video that explains how to install this part?
Hi Jerry, Thank you for the question. You will find the video under part number PS2378115. I hope this helps.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Diane
June 13, 2019
I need an arm stripper replacement part for my GE profiler refrigerator ice maker? Is that part available or do i need to purchase a new ice maker?
For model number PSS26MSRDSS
Hello Diane, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number PS2354686, Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Bob
August 27, 2019
The ice stripper has got stuck on the ice removal arms. Is there a remedy for this issue.
For model number PSS26NG
Good Day Bob. Thank you for your question in regards to your unit (Model Number PSS26NG). We would recommend reaching out to the manufacturer at 800-626-2005 as they may be able to help you troubleshoot this issue. Best Regards.
Was this helpful?
Thank you for voting!
Michael J
March 6, 2018
Ice maker dispenses ice but will only dispense crushed ice and not whole cubes. What part do i need?
For model number PSS23MSWASS
Hi Michael,
Thank you for your question. According the GE website, "It is normal to get a slight amount of crushed or broken ice cubes before or while dispensing cubed ice. This is most common after crushed ice was used and you then select cubes. The remaining chips in the crusher blades or the bottom of the bucket get picked up as cubed ice is dispensing.
When cubed ice is selected, dispensing cubes requires energizing a lever behind the ice bucket to open a flap and allow whole cubes to come out. If an ice cube gets behind the ice bucket, this can prevent the lever from working. Remove the ice bucket and check for ice that may have fallen behind the bucket.
If no ice cubes are behind the bucket, try to dispense ice with the bucket removed. Shut the door, press the ice dispenser and listen for a loud snapping noise. If no snap is heard service will be needed. If you hear a snap, reinsert the bucket and try Cubed ice again. If still no cubes, then check for frozen ice in the bucket.
To remove and check the ice bucket:
Pull the ice bin out by lifting it up in front and sliding it forward.
Check for and remove clumped or shaved ice in the bin.
If ice remains, run the bin under warm water until the ice melts completely. Dry the bin thoroughly.
Reinstall the ice bin by pushing it all the way back against the freezer wall.
Allow time for Icemaker to cycle again – to make cubes.
Select CRUSHED ICE and then CUBED ICE.
Try the dispenser again" I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Diane
June 13, 2019
I'm looking for an arm striper for my ice maker. I believe it is an older model. Can i get a replacement part?
Hello Diane, thank you for contacting us, In order for us to locate the correct parts and repair information we will require the model number of the fridge. Once you have located the model number please feel free to resubmit the question and we will be happy to help you. Look forward to hearing from you!
Was this helpful?
Thank you for voting!
