Part Location Diagram of WPW10323373 Whirlpool Mixer Washer
See part 11 in the diagram
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

1-866-319-8402 Monday to Saturday
8am - 8pm EST

customerservice@partselect.com

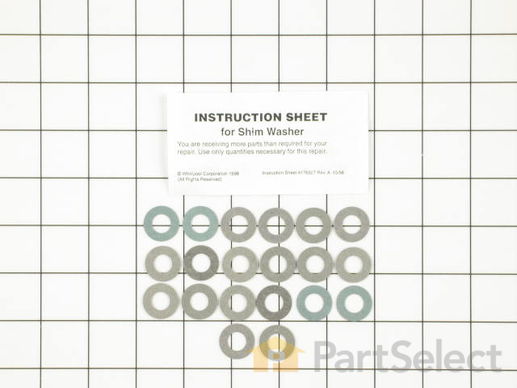

Mixer Washer WPW10323373

A Bit Difficult

30 - 60 mins

Rated by verified customers
$ Price Match Guarantee
$ 9.45
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS11752846
Manufacturer Part Number WPW10323373
Manufactured by Whirlpool for KitchenAid, Whirlpool
Product Description

Mixer Washer Specifications

These washers are above and below the worm drive gear on your mixer.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Why buy the real thing?

OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.

OEM from PartSelect

  • Genuine brand name Checkmark
  • Guaranteed to fit Checkmark
  • Superior quality and durability Checkmark
  • 1 year warranty Checkmark

Generic

  • Unknown manufacturer X mark
  • No fit guarantee X mark
  • Inconsistent quality and lifespan X mark
  • Limited warranty and support X mark
You May Also Need ?
Troubleshooting
This part works with the following products:
Mixer.
Part# WPW10323373 replaces these:
3180161, 4159529, 4159530, W10323373
Back to Top
Customer Repair Stories
 Average Repair Rating: 2.7 / 5.0, 3 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Worm gear was worn out .
I watched the university of YouTube videos, and followed their instructions.
Other Parts Used:
Mixer Washer Mixer Worm Gear
  • Peter from SALADO, TX
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers, Wrench (Adjustable)
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
stripped worm gear
i disassembled the mixer until i could remove the worm gear; is in a housing that that includes another gear and shaft. make sure you have a magnetic tray to put parts in as you work or you will spend more time looking for parts than reassembling the mixer. once you have the gear housing out you will need a small diameter punch to drive out the pin that holds the gears in the housing(i used a 5/32 transfer punch.) make sure you punch the pin out where it will be caught or you will need to order that part because you will not find it. after knocking the pin out it is just a matter of removing the old gear, putting the new one in, and reversing the steps and getting everything reassembled.
Other Parts Used:
Mixer Washer Mixer Worm Gear Mixer Transmission Case Gasket
  • dale from AMSTERDAM, OH
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Gear-worm teeth stripped, teeth on pinion shaft worn to sharp edge and case gasket dried out. Not bad for a 20 yr. old mixer.
Looked at the mixer schematic form your website,which made it easy for me to take it apart. Once it was apart & all the grease removed I disassembled & cleaned all the drive parts. Saw what was warn, ordered the parts from you. Three days later received the parts, everything fit perfect. Added grease,assembled the mixer and it ran perfect, good for another 20 yrs. Thank you for making it so easy to repair an old mixer in just over two hours. Rolf
Other Parts Used:
Mixer Washer Mixer Worm Gear Mixer Transmission Case Gasket Mixer Shaft & Pinion
  • Margaret from DEXTER, NY
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Pliers, Screw drivers
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Model Cross Reference
This part works with the following models:
PartSelect Number: PS11752846
Manufacturer Part Number: WPW10323373
Brand
Model Number
Description
KitchenAid
3K45SS
Mixer
KitchenAid
3K5SS
Mixer
Whirlpool
3KSM150PSTAQ0
Mixer
KitchenAid
3KSM150PSTAQ5
Mixer - Kitchenaid Stand Mixer
Whirlpool
3KSM150PSTBM0
Mixer - Stand Mixer
KitchenAid
3KSM150PSTBM5
Mixer - Kitchenaid Stand Mixer
KitchenAid
3KSM150PSTBW0
Mixer - MIXER
KitchenAid
3KSM150PSTCB0
Mixer - MIXER
KitchenAid
3KSM150PSTCL0
Mixer - MIXER
KitchenAid
3KSM150PSTCU0
Mixer - MIXER
Whirlpool
3KSM150PSTDR0
Mixer
KitchenAid
3KSM150PSTDR5
Mixer - Model # 3ksm150pstdr5 Official Kitchenaid Stand Mixer
KitchenAid
3KSM150PSTER0
Mixer - MIXER
KitchenAid
3KSM150PSTER5
Mixer - Model # 3ksm150pster5 Official Kitchenaid Stand Mixer
KitchenAid
3KSM150PSTGA0
Mixer - MIXER
Whirlpool
3KSM150PSTIC0
Mixer
KitchenAid
3KSM150PSTIC5
Mixer - Model # 3ksm150pstic5 Official Kitchenaid Stand Mixer
Whirlpool
3KSM150PSTLR0
Mixer
KitchenAid
3KSM150PSTLR5
Mixer - Kitchenaid Stand Mixer
Whirlpool
3KSM150PSTMH0
Mixer - Stand Mixer
KitchenAid
3KSM150PSTMH5
Mixer - Kitchenaid Stand Mixer
KitchenAid
3KSM150PSTMY0
Mixer - MIXER
KitchenAid
3KSM150PSTOB0
Mixer - MIXER
Whirlpool
3KSM150PSTPA0
Mixer - Stand Mixer
KitchenAid
3KSM150PSTPA5
Mixer - Model # 3ksm150pstpa5 Official Kitchenaid Stand Mixer
Whirlpool
3KSM150PSTPK0
Mixer
KitchenAid
3KSM150PSTTG0
Mixer - MIXER
Whirlpool
3KSM150PSTVB0
Mixer - Stand Mixer
KitchenAid
3KSM150PSTVB5
Mixer - Kitchenaid Stand Mixer
KitchenAid
3KSM150PSTWH0
Mixer - MIXER
