Price Match Guarantee
Same-day Shipping All Original Manufacturer Parts Genuine Quality 1 Year Warranty
Easy

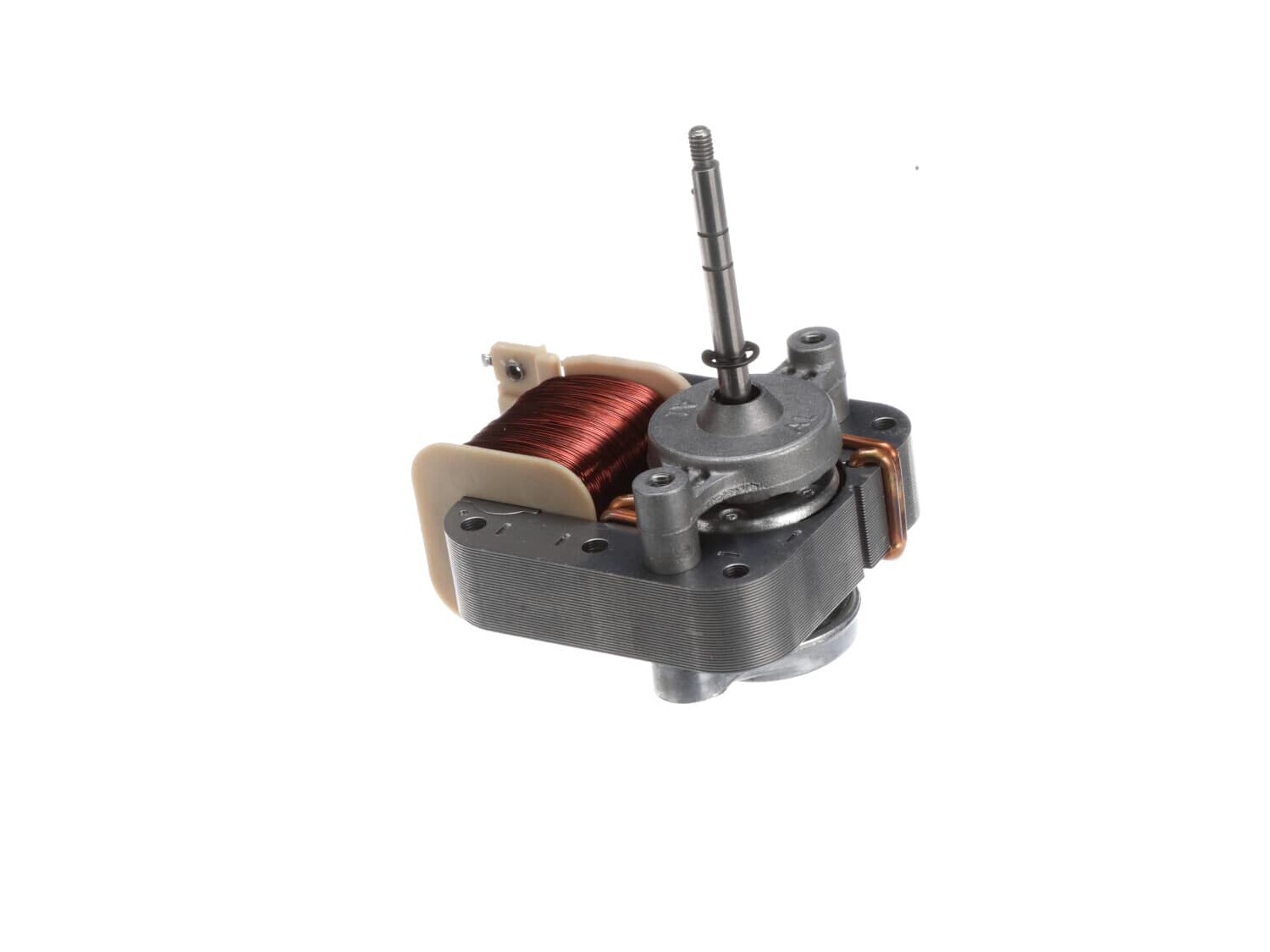

11735747-1-M-Samsung-DG31-00005C-Convection Fan Motor (Lower)
Part Location Diagram of DG31-00005C Samsung Convection Fan Motor (Lower)
See part 10-1 in the diagram
( Grid squares measure 1x1 inch )
11735747-1-S-Samsung-DG31-00005C-Convection Fan Motor (Lower) 11735747-2-S-Samsung-DG31-00005C-Convection Fan Motor (Lower) 11735747-3-S-Samsung-DG31-00005C-Convection Fan Motor (Lower) Part Location Diagram of DG31-00005C Samsung Convection Fan Motor (Lower)
Customer Service Representative

Get in touch, we're here to help!

1-866-319-8402 Monday to Saturday
8am - 8pm EST

customerservice@partselect.com

Convection Fan Motor (Lower) DG31-00005C

★★★★★
★★★★★
2 Reviews

Easy

30 - 60 mins

Rated by verified customers
$ Price Match Guarantee
OEM badge Official OEM Part Guaranteed to Fit
$ 136.95
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS11735747
Manufacturer Part Number DG31-00005C
Manufactured by Samsung for Samsung

Jump to:

Product Description

Convection Fan Motor (Lower) Specifications

This genuine OEM left-threaded convection fan motor is responsible for spinning the fan blade, ensuring even circulation of hot air within your oven for consistent cooking. It is typically located behind a removable cover at the back of the oven. Signs of a faulty motor include rattling, squealing, or slow and irregular fan rotation. Neglecting to replace the motor can result in uneven browning or undercooked portions in your food. To remove the motor, you will need a screwdriver and a socket set. Consult your user guide for instructions on accessing the back panel of your oven. Remove the mounting screws and the fan cover, then the nut securing the fan. Slide out the fan and motor assembly from your oven. Remember, the motor is sold separately from the fan, so consider this when purchasing a replacement.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Why buy the real thing?

OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.

OEM from PartSelect

  • Genuine brand name Checkmark
  • Guaranteed to fit Checkmark
  • Superior quality and durability Checkmark
  • 1 year warranty Checkmark

Generic

  • Unknown manufacturer X mark
  • No fit guarantee X mark
  • Inconsistent quality and lifespan X mark
  • Limited warranty and support X mark
Back to Top
You May Also Need ?
Affresh Dishwasher Cleaner Tablets - 6
$21.95
  In Stock
Washer Affresh Cleaner
$19.95
  In Stock
Affresh Washing Machine Cleaner Tablets – 6 Count
$27.95
  In Stock
Refrigerator Produce Preserver
$17.80
  In Stock
Refrigerator Deodorizer
$29.86
  In Stock
Affresh Ice Machine Cleaner
$26.95
  In Stock
Back to Top
Troubleshooting
This part works with the following products:
Range, Wall Oven, Microwave Oven Combo.
Part# DG31-00005C replaces these:
111798
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
2 Reviews
5.0
Filter By Rating:
  • 5 Stars
    2
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Joe C - November 21, 2019
  Verified Purchase
Worked as expected, Fast Shipping
The part was easily identified on the Web, Ordered, Shipped, Received & Done Hope this one last longer than the original which came with this Samsung Convection oven that is almost three years old.
★★★★★
★★★★★
Joseph M - November 30, 2019
  Verified Purchase
Part received as orgered
The part came quickly and was packaged and protected very well. I searched several vendors for this part and this company was by far the least expensive. I ordered a second part that was not in stock but received it as quickly as most vendors send parts that are in stock. Highly recommend using this company.
  • 1
Back to Top
Customer Repair Stories
 Average Repair Rating: 3.0 / 5.0, 2 reviews. What's this?
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Convection oven fans were noisy.
This oven has two fans that counter rotate. One spins clockwise, the other counterclockwise. Because of this, the motors and the fan blades are different. The schematic shows the counter clockwise rotating fan with a right hand threaded shaft/nut on the bottom and the clockwise motor and fan with the left hand nut on the top. My range had the motors in the exact opposite orientation, but the fan blades on the motors as shown on the schematic. The incorrect assembly at the factory (I bought new in the box, so I know this is the first repair) meant that nether fan blade was turning the correct direction. So do yourself a favor, be sure you’re buying the right motor (clockwise or counterclockwise) and be sure you put the right fan blade on the right motor. The Samsung motor ending in F is the counterclockwise motor that has the right hand threaded shaft the clockwise motor with the left hand threaded shaft ends in E.
Read less
Other Parts Used:
Convection Fan Motor (Lower) Convection Fan Motor Assembly
  • Sue from De Soto, IL
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers, Socket set
12 of 19 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Bearing went out on the fan
Slide out the stove. Unplug the electricity. Remove the back panel with a screwdriver. Then go inside the oven and remove the two Philips head screws holding the fan cover. Then remove the nut holding the fan. Note, it is a left handed nut, so turn it right to loosen it. Pull off the fan. Return to the back and remove the nut and two screws that hold the fan. The fan slides right out. The only problem I had was that the electrical contacts on the new motor were wider than the original. I had to break the plastic so I could separate the wire leads, so that they would fit the new motor. Works like a charm.
John
Read less
  • John from NASHVILLE, TN
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers, Socket set
6 of 12 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

3 questions answered by our experts.
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jim
September 13, 2021
I have a Samsung range with Flex duo. What is the part number for the fan motor for the lower oven compartment?
For model number NE5897110WS
PartSelect logo
Hello Jim, thank you for writing. The Lower Oven Convection Fan Motor is PartSelect Number PS11735747. Good luck with your repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
John
March 14, 2024
Samsung Model NE58H9950WS dual oven, upper & lower. Lower oven makes strange chattering sound when turned on, sounds like fan motor is bad. Not sure if part # PS11720787 is correct (or PS11720787). Lower Oven.
For model number NE58H9950WS
PartSelect logo
Hi John, thank you for reaching out. Based on the description, you probably have an issue with the oven convection fan assembly, part number PS11720787. You may need to replace it to fix the issue. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Related Parts:
Convection Fan Motor Assembly
$143.95

  In Stock
Jackie
November 14, 2024
I have a Samsung range that has trouble heating, I had someone look at it and said both my fan motors are frozen and my circuit board needs replacing. May I have the correct part numbers for these items. My range also has the additional letters AA on the end of the model number not sure if that matters.
For model number NE58K9500SG
PartSelect logo
Hello Jackie, thank you for your question. The Convection Fan Motor is PS4240737. The Range Convection Fan Motor Assembly is PS11720787. The Convection Reverse Fan Motor PS4241514. The Board is PS8764881.

Was this helpful?
Thank you for voting!
Related Parts:
Fan Motor
$137.95

  On Order
Range Convection Motor Assembly
$132.95

  In Stock
Display Board
$325.87

  On Order
Convection Fan Motor Assembly
$143.95

  In Stock
  • 1
Back to Top
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11735747
Manufacturer Part Number: DG31-00005C
Brand
Model Number
Description
Samsung
DOB30M977DM
Wall Oven - Wall Oven
Samsung
DOB30P977DS
Wall Oven - Double Wall Electric Oven
Samsung
DOB30P977SS
Wall Oven - Wall Oven
Samsung
DOB30T977DS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOB30T977SS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOC30M977DM
Wall Oven - Wall Oven
Samsung
DOC30M977DS
Wall Oven - Wall Oven
Samsung
DOC30P977DS
Wall Oven - Wall Oven
Samsung
DOC30T977DS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP36C86DLM
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP36C86DLS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP36M86DPM
Range - Dual Fuel Steam Range
Samsung
DOP36P86GLS
Range - Convection Gas Range
Samsung
DOP36T86DLS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP36T86GLS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP48C86DLM
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP48C86DLS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP48C96DLM
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP48C96DLS
Range - Dual-Fuel Range
Samsung
DOP48M86DLM
Range - Dual-Fuel-Steam-Range
Samsung
DOP48M96DLM
Range - Dual Fuel Steam Ng Range
Samsung
DOP48M96DPS
Range - Dual-Fuel Steam Range
Samsung
DOP48T960DS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP48T960GS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
DOP48T963DS
Microwave Oven Combo - Mwo : Microwaveoven
Samsung
NE58F9500SS
Range - ELECTRIC RANGE
Samsung
NE58F9710WS
Range - ELECTRIC RANGE
Samsung
NE58H9950WS
Range - ELECTRIC RANGE
Samsung
NE58H9970WS
Range - ELECTRIC RANGE
Samsung
NE58K9430
Range - 5.8 Cu. Ft. Slide-In Electric Range
