Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

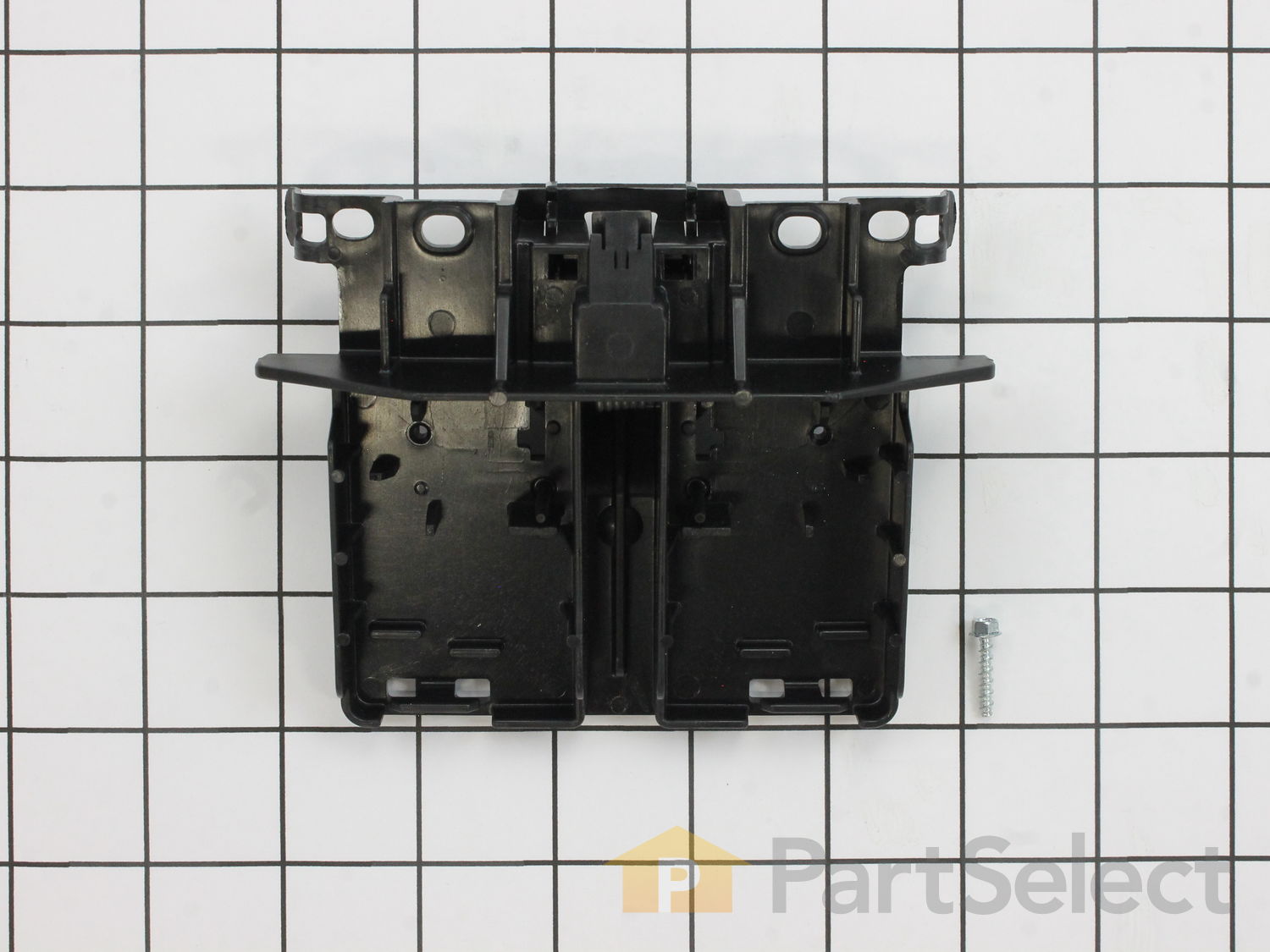

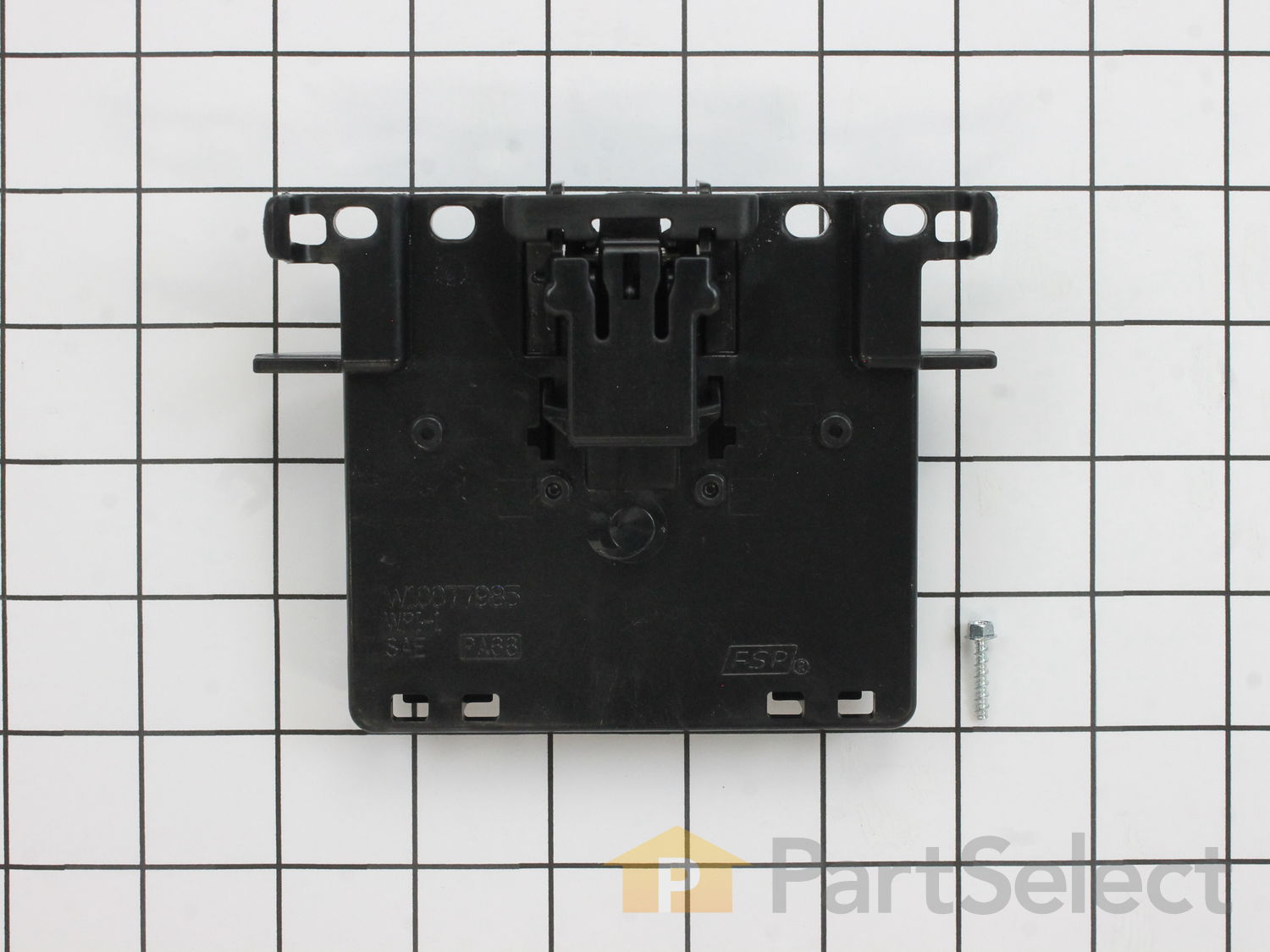

As per the factory, this is an updated latch and you will need to order the strike as well - as per your model number.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Murray M - November 3, 2018
Verified Purchase
KitchenAid Dishwasher Door Latch
This part was waiting for me to install. So easy, it took less than ten minutes to install. I can't believe I put up with the old one for two years propping a stick against the door. Relief!
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 3.8 / 5.0, 8 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
first latch broke, then appliance wouldn't start
First I ordered and replaced latch assembly...very easy and straight forward. When dw wouldn't start I ordered a door switch which I observed was worn down. After that, everything works like new. Instructional video was perfect! Just follow the steps, go slow, and don't over tighten. Easy! Total cost less than $80.
Craig from LK HAVASU CTY, AZ
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door latch not working
Watch a YouTube video to replace the latch. The strike, removes easily by gently prying out with a screw driver on both sides. You do NOT have to pull out the dishwasher as some you tube videos show.
We have been living with this problem for a couple of years. My wife resorted to leaning a chair with a bag of potatoes against the door. As time went on, she had to use heaver and heaver potatoes. Soon, nothing would hold the door shut. As a last resort (after calling Kitchen Aid and finding out my extended warranty that was paid for 5 y
... Read moreears wouldn't cover the repair due to some technicality), I decided to try and replace all three items that could contribute to the door not staying shut. The Strike Plate, Door Latch and Door Seal. Parts were easy to find on the web site and delivered from PartSelect in record time. The installation was fairly easy. I loosened the star head screws holding the Stainless outer front panel to the inner panel. These are located all around the inside of the door. The Stainless front panel then separated a bit, like a "V". I didn't completely remove the front panel as there seemed to be some wires connected that I didn't want to mess with. So I just tilted it forward and reached inside to remove the 2 screws holding the door latch. Replaced it and the door seal. Removing the strike plate required slipping a knife under the plate and releasing the spring prongs from he sides. It all seemed very intuitive. Even though we were expecting to be dishwasher shopping the next day - The door stayed shut and has worked great now for a month.
After replacing the door latch which was not faulty I learned fron a local appliance repair company the door was distorted as a result of an earlier failure of the cable assembly breaking. The door opened with such great force hiting my leg and apparently distorted the door or machine frame. The fix was to bundle a towel and place it be
... Read moretween the door and dishwasher sides, one at a time, and forcing the door in a closing direction to bend the door and frame. After several attempts the door now closes well and remains shut during the cycle.
Read less
David from New Baltimore, MI
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers
10 of 11 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Lights flashing, wouldn't turn on
First changed motherboard and door switch, which didn't fix the problem. Inspected door latch and saw that one of the tabs was broken. Replaced latch and problem solved.
chris from Novato, CA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
10 of 13 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door Pops open when running
I changed the Springs,Cables,Hinges (both) also changed both latches one on the door and the striker on the top of the tub. Problem still exists. Call worldpool today they never heard of this issue but if you google kitchenaid Dishwasher door pops open you get all kinds of hits.. You guys were great no problem with the parts..
Replaced strike plate...but may not have needed it ...He used a screw under the front of the strike plate as a wedge to increase tension...He said this has happened to this model before and an old tech told him about this fix... It must be a defect in the model that after a while the strike plate needs more tension..sent unopened ,u
... Read morenused parts back
Unit started only intermittently and then finally fail to start at all.
Unplugged unit from power source.Removed the screws fastening the interior panel to the door. Removed latch assembly from the door after disconnecting two wires to the microswitch. Removed microswitch from the latch assembly, then installed same microswitch in new latch assembly. Re-connected wires and re-installed latch assembly. Re-inst
... Read morealled interior panel with screws. Re-connected unit to power source. Tested unit. Has started reliably ever since.
Read less
Joseph from Gilroy, CA
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
13 of 15 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
5 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Phyllis
January 22, 2018
Can this be installed by the owner or do you have to have a repairman do this
For model number KUDP02CRWH3
Hi Phyllis,
Thank you for your question. You could definitely install this yourself if you think that you could do it. Here is a video that should show you how that installation goes: https://youtu.be/oLZ-7Py_hFQ . Good luck with your repair.
6 people found this helpful.
Was this helpful?
Thank you for voting!
Shayne
January 13, 2020
My dishwasher control panel lights up when i push normal wash but will not flash twice when i push start. As a result the wash cycle fails to start. I am assuming that the problem is the door latch. Do you have any guidance? Can i return the part if this does not fix the problem?
For model number KUDP01FLSS6
Hi Shayne, thank you for your question. Generally for an issue like this the door latch would be one of the parts to check. If that part is fine you may want to check the wiring for any damage. If those parts are both fine then it may be your control that is the issue. We have a 30 day Return Policy. More information can be found here: https://www.partselect.com/Thirty-Day-Returns.htm. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
James
November 23, 2019
It want to replace the door latch assembly. I've watch your video an see there a 2 pairs of wires. My existing latch assembly has only one pair.Of wires. What can I do?
For model number KUDP02CRWH1
Hi James, assuming the model number is correct you may need only the one wire I would contact the manufacturer to makes sure. Thank you for your question and good luck with your repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Jim
March 7, 2023
My dishwasher pops open during wash cycles. There seems to be a variety of possible solutions when I googled the problem. Is there a likely fix for this problem? There just doesn't seem to be enough tension on the latch. There seems to be the right amount of tension on the door springs. There is no noticible wear on the latch assembly although the unit is about 20 years old. I have tried bending down the strike plate a little bit and did not make a difference. It currently takes a fair amount of force to push the door shut to get it to latch.
For model number KUDS01FLSS1
Hello Jim, thank you for reaching out. According to our research, you may need to check the following parts: the door balance link kit, part number PS972325, the left and right door hinges, part numbers PS11746184, and PS11746183. We hope this information is useful!
I am having the same issue as Shane, My dishwasher control panel lights up when i push normal wash but will not flash twice when i push start. As a result the wash cycle fails to start. Top you know if he ever solved his issue? Thanks
For model number KUDS01FLSS5
Hello Jim, thank you for your question. The door latch could be loose, bent, or broken. Check for any broken pieces and try tightening with a screwdriver. Part number PS886294. We hope this helps!
