Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

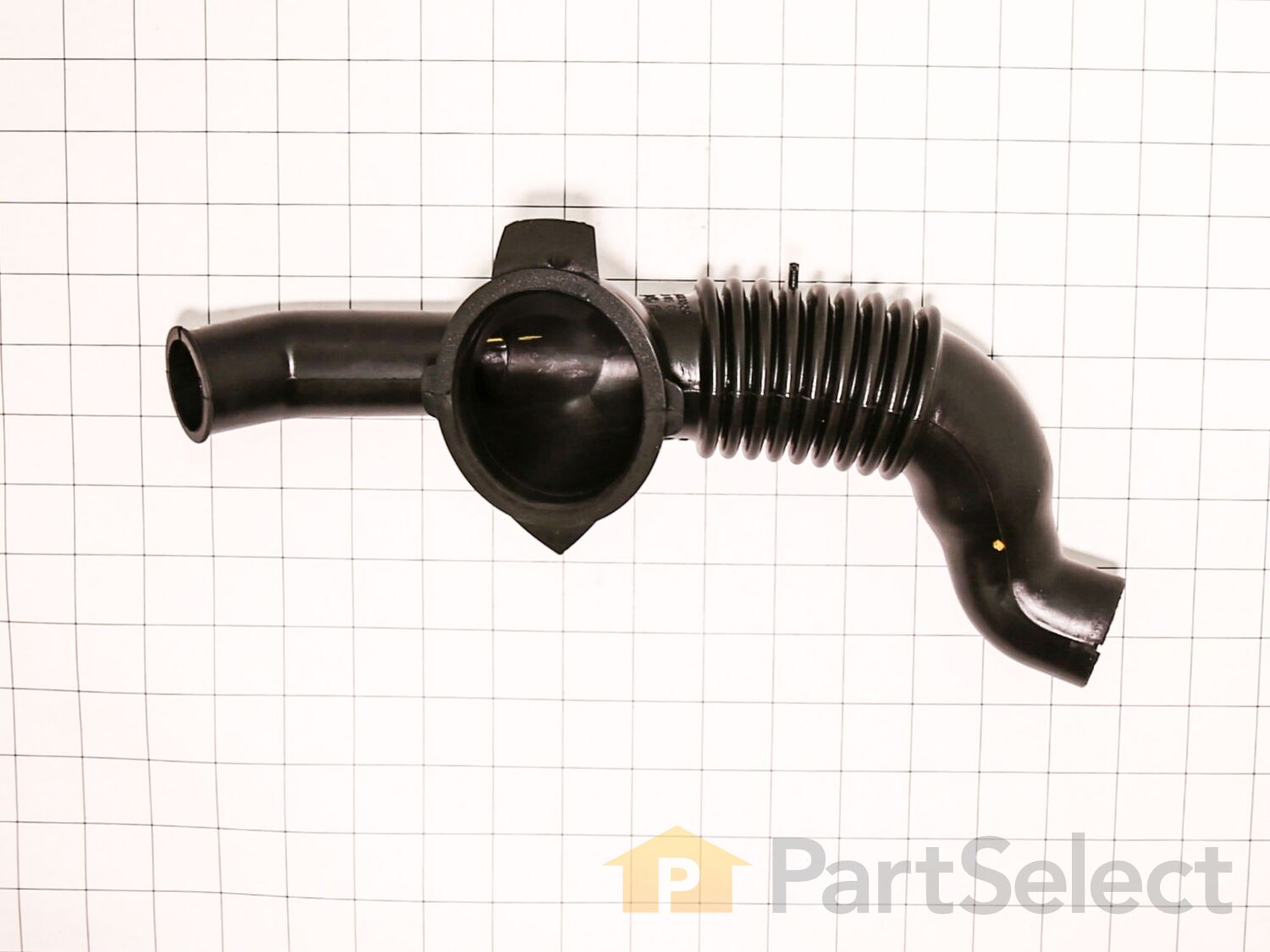

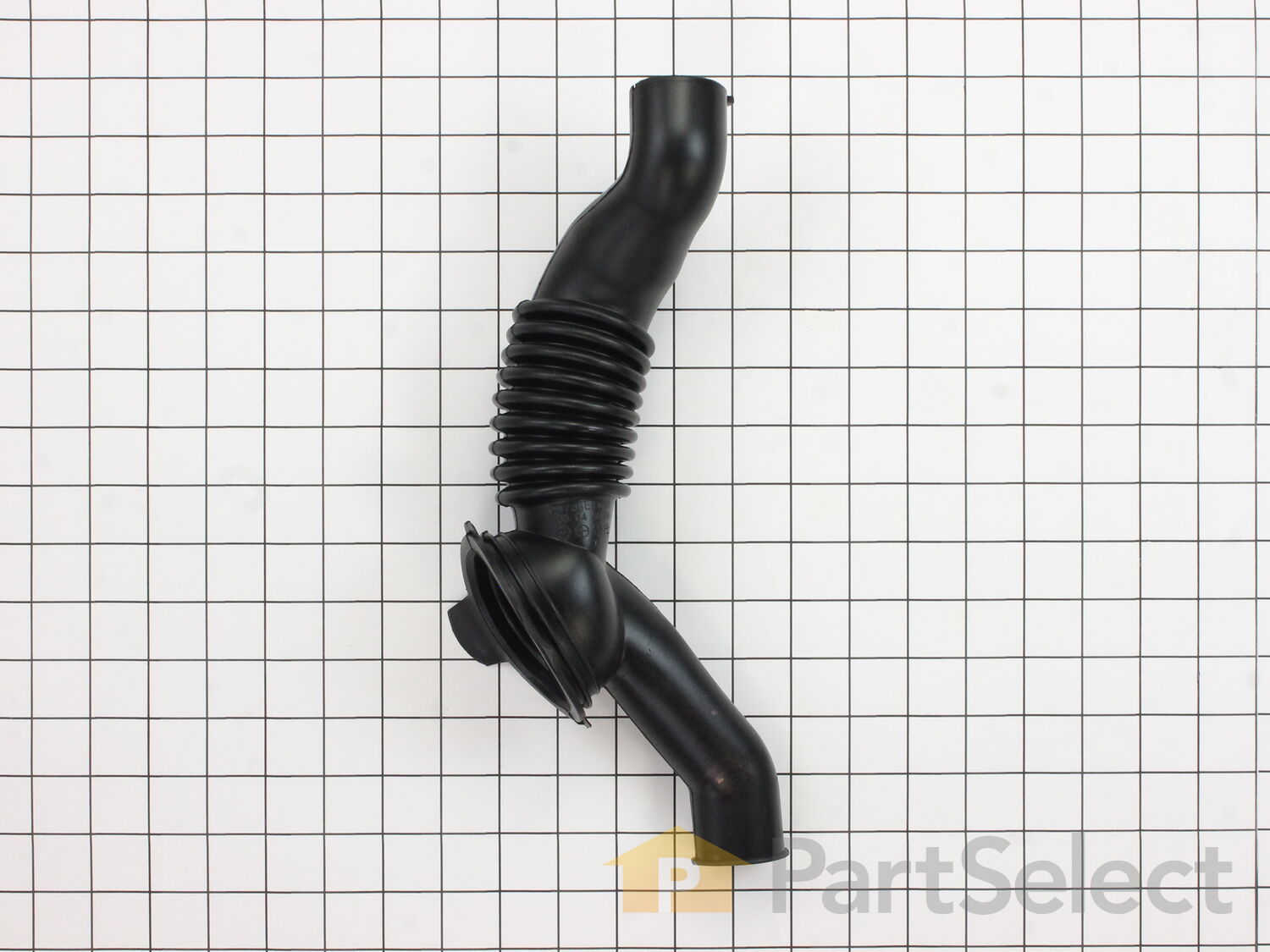

This is a tub-to-pump drain hose for a front load washer. The hose features flexible bellows which allow it to expand and contract when necessary. It carries the water from the tub of the washer to the drain pump so the used water can properly empty from the tub. This part is made of rubber, is black in color and measures 13 inches long. Be sure to drain the excess water from the washer before completing this repair. This is an authentic OEM part that is sourced directly from the manufacturer.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Alan B - November 26, 2018
Verified Purchase
Exactly what I needed
I just wanted to say thank you very much for the part and the video. I watched the video as I replaced the part. It was very thorough. My washer is up and running again 3 days after I ordered the part. Amazing! I could not do it by just taking the back panel off per the other instructions because my hands are too big, but the video was exactly what I needed. I repaired it with your help before the repairman could even come to look at it. Thank you, thank you, thank you!
★★★★★
★★★★★
Jim P - December 4, 2019
Verified Purchase
Easy repair with the help of their video!!
Great
★★★★★
★★★★★
Paula C - July 18, 2018
Verified Purchase
Satisfied Customer
Part came quickly and at a fraction of the cost of what the my repair man wanted to charge. A bit tricky to change, but we were able to do it with the help of a YouTube video. Might I add that we aren't Do It Yourselfers. Very satisfied with the part and the timely manner in which it arrived. Would definitely order from Part Select again.
★★★★★
★★★★★
Linda M - January 1, 2021
Verified Purchase
True match /easy install
The part was a perfect match, install was a breeze. Fast shipping.
★★★★★
★★★★★
James G - October 9, 2020
Verified Purchase
Worked great
It did the job.
★★★★★
★★★★★
Stanley L - February 12, 2021
Verified Purchase
LG tub to pump drain house
Great part fit well just a FYI. The clamp on the pump is different from the vent hose their close make sure you mark them i used the existing clamps.The part arrived early them promised thanks PartSelect Thum,s up. Stan
★★★★★
★★★★★
Candace C - September 6, 2023
Verified Purchase
Exactly what we needed!
Brand new part to replace our old one that had a very tiny hole in the bend. My husband swapped it out pretty easily and there have been no more leaks eversince!
★★★★★
★★★★★
Tonia H - October 8, 2022
Verified Purchase
Perfect fit
The part was in like new condition and fit perfectly. My first time switching tub to pump drain hose and was working in a tight area, so that was my only issue. It still didn't take more than an hour. The video provided helped alot.
★★★★★
★★★★★
John O - May 22, 2020
Verified Purchase
Part Came on time even with the virus
The part looked like the original. It’s installed and the washer is working again.
★★★★★
★★★★★
Christopher B - March 26, 2024
Verified Purchase
Exact fit
I’ve installed many parts saying OEM but this one really was.
THANKS
< Prev
1
2
Next >
Customer Repair Stories
Average Repair Rating: 3.3 / 5.0, 3 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Puddle On The Floor
Had a puddle on the floor under the washing machine. While I couldn't definitively confirm the source of the leak, I suspect it was the drain pump. As such, I replaced the drain pump and the drain hoses (one of those 'while you're in there' things). The toughest part of the whole job was moving the washer away from the wall. I was able to
... Read more leave the water hoses connected and just unplugged the electrical cord. Watched the YouTube video regarding the replacement and it was exactly what I needed. Just take your time and make sure everything fits together without force. In addition to the pump and the hoses, I had some drum shocks that I had previously purchased, but never installed. Replaced them at the same time. Everything fit together as expected and the washer works great. No leaks and reduced vibration. Good for another 15 years - hopefully.
Pull washer away from wall. Unplug cord and remove drain hose from receptacle. Remove 4 screws holding panel to rear of washer. Squeeze and slide back hose clamps on each end of drain hose and loosen center clamp with screwdriver. Remove old hose. Reinstall new hose in reverse order using existing clamps. Re-install back panel.
Leslie from STOWE, VT
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
49 of 67 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
A leak was created via puncture of metal part of bra that fell out.
Remove old one and replace. Just make sure it is all the way on and secure or you will have a huge mess on your hands.
Travis from Marietta, GA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
0 of 1 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
6 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Becky
June 4, 2019
Is there a way to check the drain pump to determine if its the culprit for the water not to drain. When filter removed water pours out from there just can't get it all to drain out due to no drain , no spin.
For model number WM3250HRA
Hello Becky, thank you for writing. The first thing to check would be if the impeller spins or not. If the impeller does not spin, then the Drain Pump is faulty. You can also test the voltage of the Drain Pump with a multi-meter. It needs 120 volts to run correctly. We hope this helps.
6 people found this helpful.
Was this helpful?
Thank you for voting!
Mike
February 28, 2019
How do you remove front panel so i can replace water guide hose as itunes do not cover newer models
For model number Wm5000Hva
Hi Mike,
Thank you for your question. There is a video listed with the part on our website that you may reference on how remove the front panel. I hope this helps. Thank you and have a great day!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Beth
January 31, 2023
Is there a way to determine the source of my leak without taking the front panel off? Water drips underneath from the front edge center (under the drum) and left (under the tub-pump drain). With the top off, I can't see any water drips, so it's not anything with water intake. I'm thinking tub to pump hose or gasket around the door.
For model number WM2050CW
Hi Beth,
Thank you for your question. Based on your description, the leak is likely coming from the area around the pump. To verify exactly where it is coming from, you will need to remove the front panel. If you have any questions, please let us know. We look forward to hearing from you!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Paul
March 22, 2023
Description does not talk about the part of the hose that also goes to the back o the machine!!
For model number WM3670HWA
Hi Paul, thank you for reaching out. We have found a relevant video for your assistance. You may need to watch the video from the seventh minute onward. We hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Alan
September 15, 2023
Machine was not draining and pump has been replaced. No that I have seen it run, it will not will not switch to spin and still will not drain.
For model number WM2250CW
Hi Alan, thank you for reaching out. Based on our research, you may need to check the drain hose, part number PS3527285, as it could be kinked or clogged with debris from your clothing. You may need to replace it to fix the issue. We hope that helps!
Cleaned drain filter and it was full of pieces of plastic, cleaned and put back now water pours out when washing… what could be broken in there causing leak?
For model number Wm2455hw
Hi Sandra, thank you for your question! There is a black rubber "O" ring under the screw cap, which provides a watertight seal when the cap is screwed on tight. Check that it is not split, cracked, or worn, creating an imperfect seal when the cap is screwed on so that the water can get through. If it is broken or damaged, you will need to replace it with part number PS3522306. Please reach out to customer service if you need help placing an order. Glad to be of help!
