Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

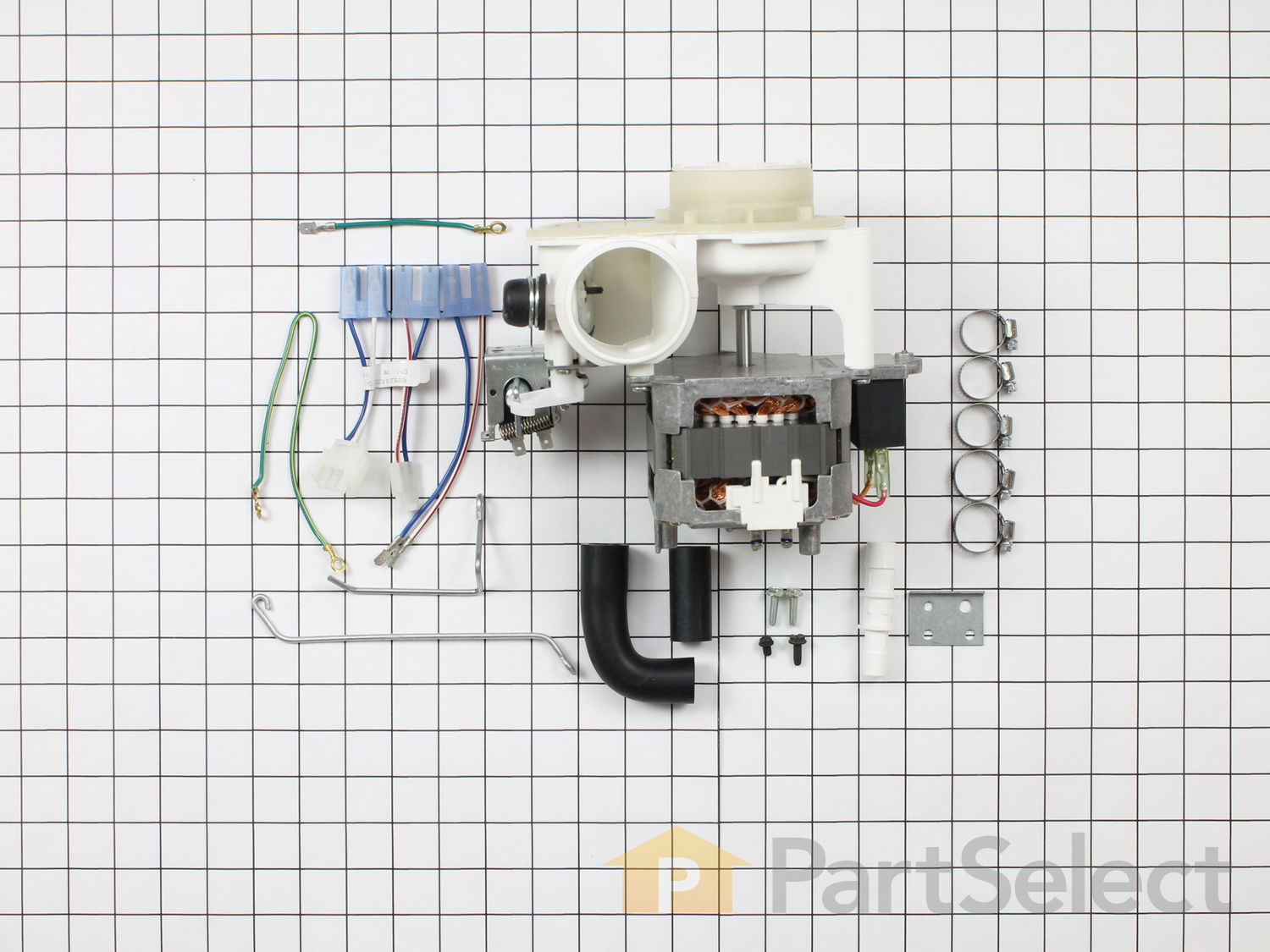

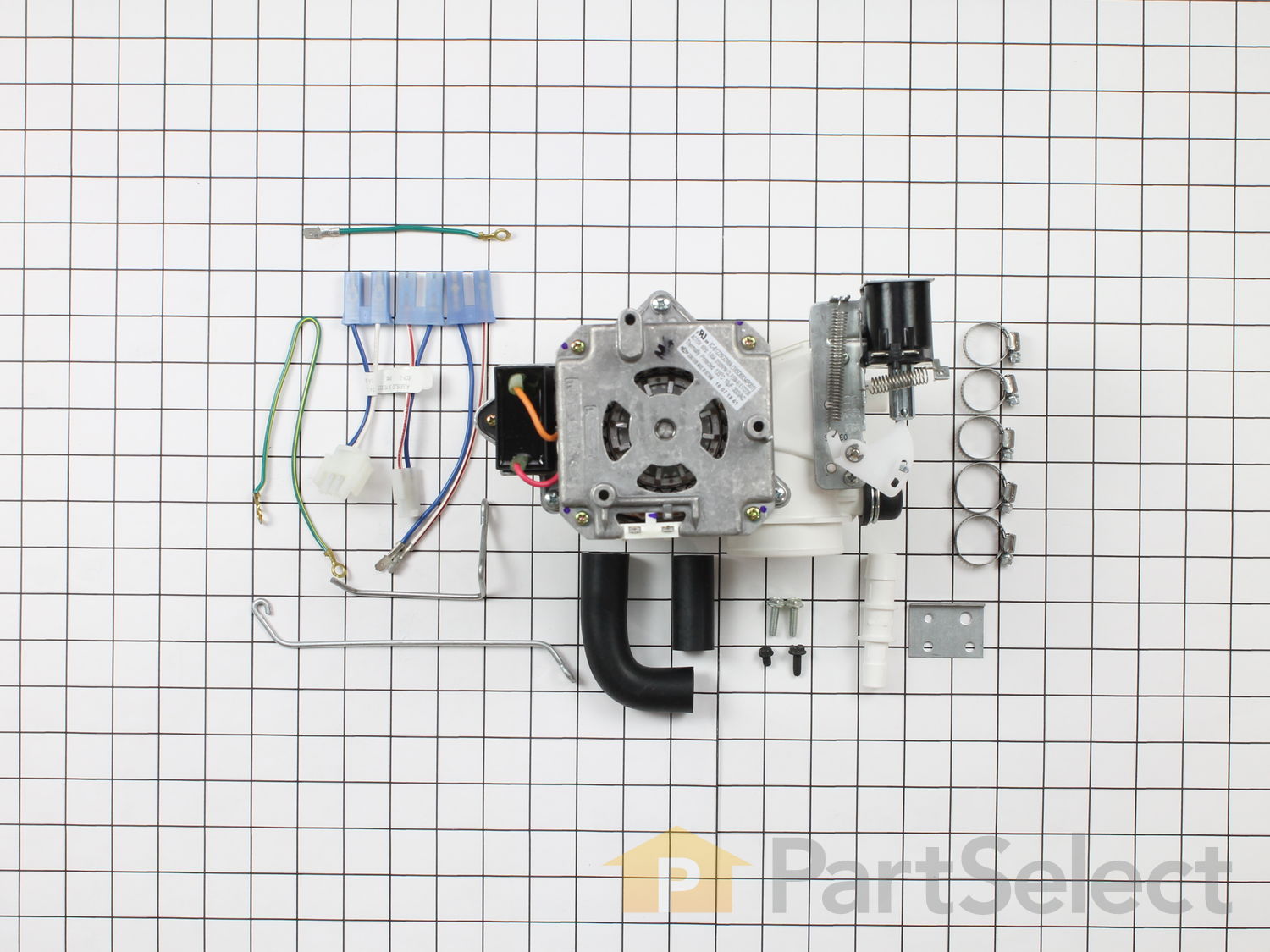

This is a pump and motor kit for your dishwasher. This assembly replaces many old-style pump and motor kits that were manufactured since 1970. The instructions are included with this kit in to assist you. Take note that this is a completely redesigned kit by the manufacturer and now includes the drain solenoid. You may need to replace this part is if your appliance is leaking, not draining properly, noisy, or will not start or clean your dishes properly.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Wayne C - October 22, 2023
Verified Purchase
Dishwasher pump
I had never worked on a dishwasher before but to my surprise it was fairly simple to install and is now working perfectly.
★★★★★
★★★★★
Christopher G - February 5, 2020
Verified Purchase
Easy to install
I replaced the pump unit on a 35 year old dishwasher with this unit and it is like it's brand new. It's quieter and has more power as you can hear it spray much harder. Dishes come out perfect now.
★★★★★
★★★★★
William M - June 16, 2018
Verified Purchase
Worked like a champ!
The part was packed extremely well and and showed up in a couple of days. Thank you PartSelect for your amazing service and massive inventory!
★★★★★
★★★★★
James A - October 31, 2018
Verified Purchase
GE dishwasher
Part came fast and in excellent condition. I had to find out whichever designed motor I was replacing. Thankfully my dishwasher was produced after 2000, so very little had to be done for final installation. In fact, it took longer to set the dishwasher on it's side and set up for water leak collection than it was to replace the actual motor assembly. The dishwasher works much quieter and does a better job at cleaning the dishes. I've used your company beforehand with the same great results. Thanks again and will use your company again for any other reparing to get done.
★★★★★
★★★★★
Brian S - September 13, 2018
Verified Purchase
Super easy install
Super easy to install. My issue was the dishwasher would empty the water as soon as it went in. I knew the solenoid was bad but I got the complete motor kit. It was SOO much quieter that the original. Fixed 2 problems with one part
★★★★★
★★★★★
Geraldsnyder - April 21, 2022
Verified Purchase
Perfect Replacement
Part was easy to install except for the new motor hanger near the door end of the dishwasher. It was a little tricky to figure it out, but once installed correctly the new assembly works great - no leaks!
★★★★★
★★★★★
Robert A - April 2, 2019
Verified Purchase
motor and pump kit
perfect fit. exact replacement.
★★★★★
★★★★★
Mark S - June 19, 2018
Verified Purchase
Part arrived as promised - Easy repair
Part was an exact fit, and installation was as described. Very pleased.
★★★★★
★★★★★
Hector R - May 12, 2018
Verified Purchase
Flawless replacement
The kit was an exact match. Replacement was easy and quick. Worked on first try. It took maybe 30 minutes to complete the repair. A lot cheaper than buying a new washer.
★★★★★
★★★★★
Paul M - June 24, 2018
Verified Purchase
moter was shorter had to change moter support matching screws was pain in ass
the machine works great now better then spending 500$_600$for new one
< Prev
1
2
Next >
Customer Repair Stories
Average Repair Rating: 3.1 / 5.0, 57 reviews.
What's this?
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Motor and pump kit was easy, but the panel was a bit difficult. Lining up pnl to mount and adding the nut plates.
Remove two front mount screws from counter top Lower dishwasher floor feets Pulled electric leads cover and disconnect electric leads Pulled dishwasher out and leaned on it's back Sorry missed a step turn off breaker to dishwasher Removed water line and drain hose Removed motor/pump using only a socket setup
... Read moreand cross tip screw driver Installed new motor/pump using same tools as removal Stand dishwasher back up push back into space and reconnect all item mention in removal Turn back on breaker Ops check dishwasher Done.
Unscrewed unit from counter and loosened legs using adjustable supports under dishwasher. After switching off water under sink and power at circuit breaker, removed motor and pump assembly and replaced with repair kit.
Philip from Rockville, MD
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
pump seized up
replaced pump and motor with new one. worked but pump would not empty the water. ordered additional parts check valve,seal and box that check valve screwed into. did not fix problem. Got to looking at replacement pump and discovered thet discharge solonoid was not completely opening the discharge port. I could hold it down manually and
... Read morethe machine would empty. I reported the problem to parts select and they without question shipped me a new pump and motor. took the dishwasher out of the wall again and swapped them out, and now it works fine. the repair was easy and simple. the difficulty was taking the dishwasher out and reinstalling it 3 times. I will use parts select again if the need arises.
Read less
JIMMY from BURNET, TX
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Wrench (Adjustable), Wrench set
1 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
poor dish washing
Read directions. They were poorly drawn. Set them aside. Opened up unit on December 26th. I made careful observation of the wiring, two hoses, one metal bracket, the hose two clamps, and then proceeded. Instructions said 1 to 2 hours, to complete. Ha Ha, perhaps if you've done it before. It was actually really closer to four hours.
... Read more When done, it worked perfectly. The best part, my wife said: "This was the best Christmas present ever!" That made my day! Dishes are clean again, just like new! Thank you: www.PartsSelect.com.
Read less
THOMAS from LACONIA, NH
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
4 of 5 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Leaking from the pump.
The part that took the longest was taking the washer out from under the counter. The fix was the easy part = 15 to 20 minutes no problems. After putting the washer back and reconecting everything,the first cycle I had some leaking around one of the two big clamps. I had to pull it out again and move the clamps around and tighten them. Muc
... Read moreh better the 2nd time around, Good to go!! HAPPY WIFE HAPPY LIFE !!!! Good Luck !!
We ordered our motor and pump assembly. When it arrived we followed the instructions that came with it. We had no problem with the instructions. We found it to be really easy. I was very happy since this happened 4 days before Thanksgiving. Thanks for the easy instructions, my husband got my dishwasher repaired in plenty of time for our T
... Read morehanksgiving family get together.
Read less
Gloria from Vian,, OK
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Wrench set
3 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Not Draining, Leaking
Unplugged unit, unscrewed screws on top of dishwasher attached to countertop, undid water supply and drain hose that goes into tee with garbage disposal. Using crescent wrench turned front leveling screws up all the way and slid/rocked dishwasher out from under the counter - I had no problem leaving back leveling screws down. Turned dishw
... Read moreasher over on some towels (it WILL leak some water so spread out some towels!) so it was oriented like the directions that came with pump and motor. The directions were good, although color or a picture might have been more helpful. CHECK the new pump/ motor unit CAREFULLY for any loose debris from packing etc. I had a small piece of plastic that was in the top of the motor that goes in the dishwasher bottom that rattled around after I installed everything and put it back. I was able to get to it from the drain assembly in the tub but it made a heck of a racket at first. All in all, I had a great experience. I'm glad I ordered the pump and motor even though I only thought I needed the drain solenoid because when I took the old unit out, the prop on the old impeller was almost gone. Easy to order, good customer service (I called with a question and talked to a wonderful customer service representative!), good directions and easy to do. I'd say a 4 out of 10 in terms of difficulty. Thanks PartSelect!
Originally replaced solenoid without pulling unit out, but continued to leak. Purchased the entire motor and pump kit; pulled unit out, turned it on end and replaced the motor. The only problem was that no new ground screw was sent with the kit and the existing screw wasn't quite short enough to connect. Either the hole on the replacem
... Read moreent kit needs to be deeper or a bond screw needs to be sent that will fit the new kit. We had to find our own screw that would fit properly.
Read less
Betty from Saluda, VA
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
0 of 1 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dead spot in motor/pump seal leak
I had a problem where the GE dishwasher would randomly stall upon startup due to a dead spot in the motor which prevented it from energizing. I removed the dishwasher's bottom access panel to inspect it and found that not only was the motor dead but it had a sizable leak emanating from the pump seal. I removed the dishwasher from under th
... Read moree cabinet area and turned it over to make it easier to replace the motor and pump assembly which only took a matter of minutes; the most difficult part of the repair being the reinstalling of the dishwasher. The replacement motor/pump assy was not only modified from the original parts but it is also much quieter than the original. I also have to commend PartSelect on their very speedy delivery which was only 2 days. All in all with a couple of minor modifications that was taken care of with the included parts the repair went very easy.
Read less
Warren from Glendale Heights, IL
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Wrench (Adjustable)
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water leaking onto the floor
I removed the dishwasher, removed the front kick panel, layed the dishwasher on its back, loosened the clamps and removed the old motor and pump assy. Cleaned up the area where the unit was, Installed the new unit, tightened the clamps and it was done. Probably took around an hour because of my cleaning up the sealing areas.
Ask our experts a question about this part and we'll get back to you as soon as possible!
19 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
John
January 31, 2018
My dishwasher will not fill with water. Replaced inlet valve, float is fine, water pressure fine. Water line not clogged. Help
For model number GSD2030Z02WW
Hi John, Thank you for the question. I suggest replacing the Timer, PartSelect Number PS260070. The timer tells the valve when to open and allow the appliance to fill with water. Hope this helps!
Hi Jerry, Thank you for the question. Sounds like the Drain Solenoid is defective and needs to be replaced. PartSelect Number PS260117.Good luck with the repair!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Felix
August 5, 2018
When my dishwasher starts it's first cycle it washes fine but after the first drain starts, it stops completely and turns off and doesn't drain. I have to reset it just th get it start again if it does start. Is motor/pump assembly the problem?
For model number GSD5560G00SS
Hello Felix, thank you for your question. If the unit is washing, starts draining, but then stops and turns off the issue is most likely the Motor and Pump Kit WD26X10013. I would remove the bottom spray arm and clean out under the impeller and screen to be sure there is nothing obstructing the drain pump and motor before ordering, but if its clean and there are no obstructions you will want to replace the aforementioned part. I hope this helps!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Larry
January 9, 2019
Kenmore model 665.14815n611 parts list and repair instructions. Fills with water and drains but doesn't turn spray arms.
For model number 665.14815n611
Hello Larry, Thank you for the question. This sounds like an issue with the Circulation Pump, PartSelect Number PS11765854. This pump circulates the water tot he spray arms during the wash cycles. Here is a link to a video on how to replace a Whirlpool Circulation pump. Hope this helps!
https://www.youtube.com/watch?v=UYBYT1O730U
2 people found this helpful.
Was this helpful?
Thank you for voting!
Betty
February 6, 2018
I am looking at your motor and pump kit i need the black rubber cap and clamp for my dish washer it is leaking can i just buy that cap
For model number GSD500X-66WA
Hi Betty, Thank you for the question. Unfortunately the cap is only sold with the Motor and Pump Kit. Hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Youri
April 27, 2018
Hello! Can i replacement this kit to my dishwasher?
For model number GSD3210Z04AA
Hi Youri,
Thank you for your question. Yes, this part is listed under your model number and it is designed to work with your appliance. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Edisson
February 28, 2019
Pump model for this dishwasher !Please! Photo and price thank you !!
For model number Gsd2000gooww
Hi Edisson,
Thank you for your question. The part number listed under your model number for the motor and pump is PS260801. There are photographs listed with the part on our website that you may reference. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Tori
May 2, 2019
I just bought this motor and was sent wd26x10013. I installed it and started a test run, it worked for about 30 seconds and shut off. I couldn't get it to start back up so i reinstalled my old motor which worked but was getting old and it would not start up at all. I think it fried my machine.
For model number GSC3200G00BB
Hello Tori, Thank you for the question. I suggest testing the Interlock Switch, PartSelect Number PS1481922. It could have been shorted out when installing the motor. This part is a simple on/off mechanism that prohibits the appliance from operating when the door is open. If defective it will not allow the appliance to run. Hope this helps!
Hi! My range oven temp bottom stay on !When i turnoff the oven! How can be fixed help please ! Thank you!!
For model number JBS27WH2
Hi Edisson,
Thank you for your question. If your oven will not turn off, there are some parts that you will need to check to see which one is causing the issue. You will need to check the oven thermostat, the electronic control board and both the bake and broil elements. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
David
February 7, 2019
Cam you send me a picture of the lower spray arm assembly as i am not quite sure where the small rubber washer goes when i rebuild the arm back in place
For model number Gsd3000w20
Hello David, Thank you for your inquiry. Photos can be found on our website for the lower spray arm, along with an exploded diagram showing where each piece is located. https://www.partselect.com/ModelSections.aspx?ModelID=338031&ModelNum=GSD3000W20&mfgModelNum=&ManufactureID=2&Selected=00005708i03&Position=1&mfg=GE&Type=Appliance&Mark=3 Good luck with your repair!
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
