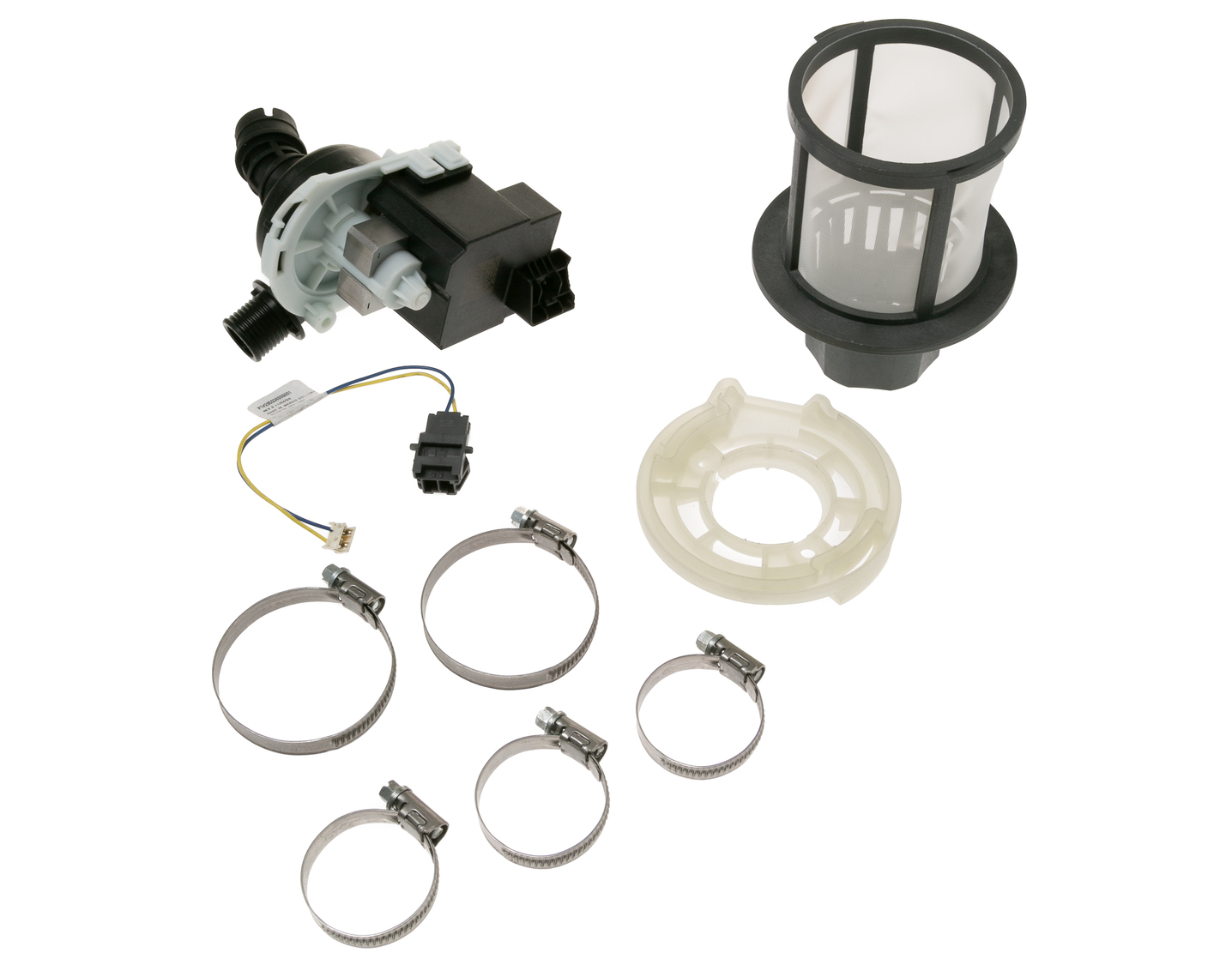

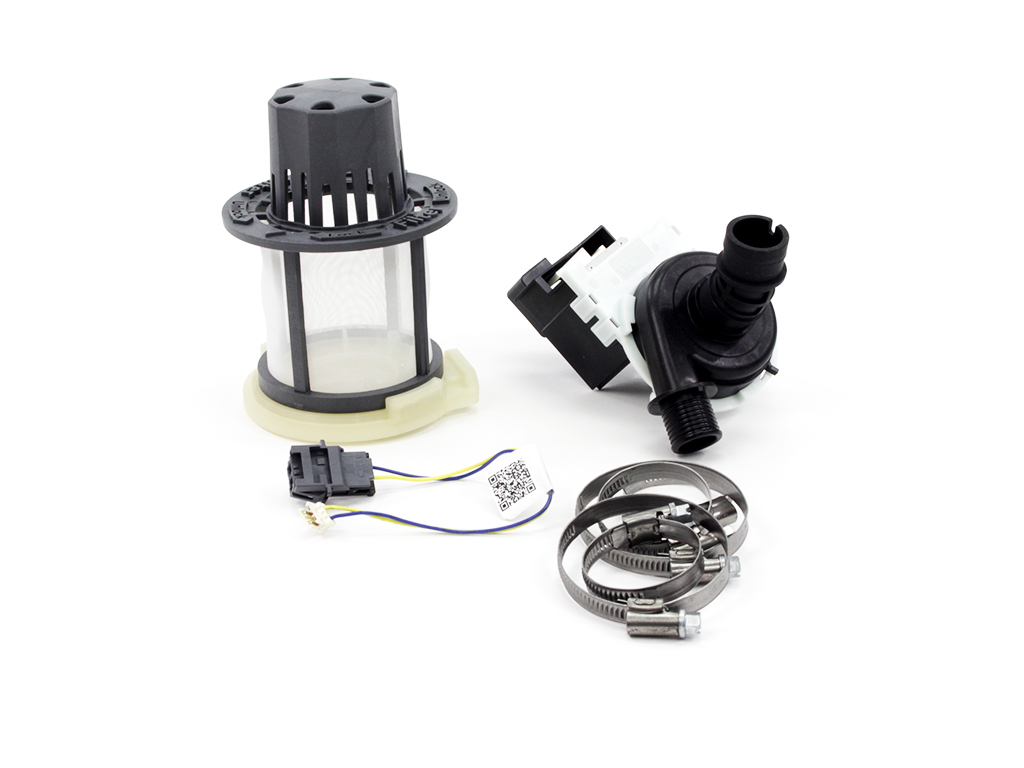

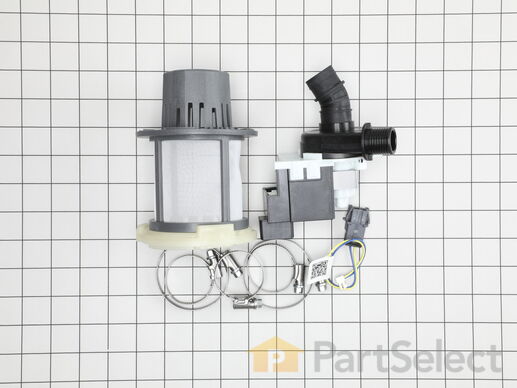

Dishwasher Single Speed Drain Pump Kit Specifications
This drain pump kit is for dishwashers. The drain pump kit removes the water from the dishwasher tub during the drain phase of the dishwashing cycle. The kit may include multiple parts; refer to your parts diagram for a complete list of parts included. Unplug the dishwasher and shut off the water supply before installing this part. Wear work gloves to protect your hands.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Trisha L - October 26, 2021
Verified Purchase
Very easy!
I probably looked at the problem longer that it took me to fix it. Dishwasher wouldn't drain and it wasn't clogged. Works great!
★★★★★
★★★★★
Sean W - June 8, 2021
Verified Purchase
Part fit and functioned perfectly
The part came quickly and was exactly what I needed. No issues, and a good price.
★★★★★
★★★★★
Dennis W - January 5, 2021
Verified Purchase
Not OE but it works
Overall shape was different compared to original. The bottom of pump was "flattened off" versus round. This actually allowed me to lower the dishwasher to give more access to controls on top. It was half the weight of original (or 1st replacement for the original) and different shape. Came with an adapter for electrical connection. My wife destroyed the original pump with non dishwasher friendly dishes. Replaced pump once with identical pump and only lasted a year. Ordered this replacement and it all hooked up and worked so we will see.
★★★★★
★★★★★
Marcelino O - September 11, 2021
Verified Purchase
perfect
the part was easy to install worked great thank you
★★★★★
★★★★★
Michael S - May 3, 2023
Verified Purchase
easy to order, arrived as specified
the part appeared new and was the correct part number
★★★★★
★★★★★
Maryjokietzman K - March 13, 2021
Verified Purchase
Drain pump for GE dishwasher
Arrived in 2 days! Working great now!
★★★★★
★★★★★
Todd T - January 29, 2024
Verified Purchase
Parts were in new condition and shipped fast.
The parts were in new condition and shipped fast. Installation was a breeze and Part Select site was extremely helpful in deciding what to try by symptom and some common sense!
★★★★★
★★★★★
John T - March 17, 2021
Verified Purchase
Super easy fix.
This was precisely the part I needed. It arrived in a reasonable time and took <15 minutes to install. Dishwasher is now back to 100% functional
★★★★★
★★★★★
Glenn B - June 5, 2022
Verified Purchase
Exact part,back in service.
Fast shipping,took me less than a hour to get dishwasher back in service.Thank you.
★★★★★
★★★★★
Michael S - July 10, 2021
Verified Purchase
Easy repair!!
The part fit perfect thank you!!!!
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 3.7 / 5.0, 8 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
would not drain water
2 hose clamps, connect the wire with the wire adaptor suppled
Ed from Cassopolis, MI
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Drain pump quit draining
My granddaughter's fian'ce actially replaced the pump. He pulled the dishwasher out, tipped it over and quickly and easily replaced the pump. I had already snapped the converter on to the pump so it was ready to hook up. I had read previous messages that this part had a converter. After putting the washer back in place we
... Read moreset it on a light wash to test it. It went very well.
Read less
Mary from KINGSVILLE, MO
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water would not drain.
Unhook water line . Turn off power to dishwasher. Remove dishwasher from under counter. Lay it on its back. Loosen clamps on drain pump and remove pump. Install new drain pump and tighten clamps. Be sure to put hanger in the hole on the pump. Very easy job. Reinstall water line and put dishwasher back under counter. Turn on power to dishw
... Read moreasher. Go to go.
Read less
Earl from WINCHESTER, TN
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set, Wrench (Adjustable)
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher Not Draining
The pump went out after a few months of very loud noise during the drain cycle and then one day no drain or noise. A bit of research shows that this pump goes out frequently on this model so I ordered a new pump after inspecting the old pump for a clog or snag on the rotors.
The Install: After removing the dishwasher from
... Read moreit's installed location and turning it on it's side (unplug water and electric of course), I was able to remove the pump from the two lines that connected it to the dishwasher and the drain line. I also had to unplug the pump from an electric connection to the dishwasher. Swapping out the new pump was the same but in reverse. Not a hard install, only simple tools required.
One note, my electric connection to the dish washer was different on this model pump since they changed the original part but there is an adapter included with this part so make sure it is in the box and fits before beginning.
Read less
Ivan from MANSFIELD, TX
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Drain pump would not work. Water left in the bottom of the dishwasher.
Dishwasher is under 2yrs old and suddenly failed to drain due to the drain pump not working. I read the reviews on how easy it was to change and went ahead and purchased one. After removing the screw from the appliance bracket under the counter and the two screws from the base plate, it was easy to pull the dishwasher from under the coun
... Read moreter and away to flip to its side. I would recommend draining the drain hose first and making sure no water is in the tub. Keep a towel nearby. Removing the drain pump was simple. I needed a nose tip pliers to remove one of the hose clamps and a screwdriver for the other clamp. Once the pump was removed, I opened the old pump by twisting the top part while pressing the tabs to remove upper housing. There was a broken piece of glass that had wedged itself in the mechanism which prevented the pump from working. I wish I had checked that first, before purchasing a new drain pump. I kept the old pump as a backup for the future. It took no more than 20 minutes to get the pump replaced and the dishwasher back in place. Dishwasher drains just as new. By the way, costed under $100 with delivery. An appliance repair company wanted $250!! Not the first time PartSelect saved me money and won’t be my last!
Read less
Ronnie from PHILADELPHIA, PA
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
6 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Drain pump needed replaced
The only directions that came with the new pump and filter, was how to replace the filter. I had to find a You Tube video to show me where the drain pump was located., and the way to get to it. I also had to figure out how the new pump was hooked up electrically, since the new pump did not work with the plug in on the machine.
Kim from BLACKFOOT, ID
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Wrench (Adjustable)
2 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Pump would not drain tub
Repair went fine, getting the right pump was the problem. I started with my local appliance parts house, they ordered part came in 3 days. Upon picking it up I noticed that the pump was shaped slightly different and the electrical hook up was totally different. Asking the parts guy what happened he said they must have sent the wrong pu
... Read moremp. Returned it for credit and ordered it again. Four days later the same exact thing occurs. Parts guy credits my account and says better go directly to GE. Wait 10 days for GE, for this part and once again same odd looking pump with wrong electrical plug. My son who is a welder by trade asks me if there is a packet of parts in carton and yes there is. He says that perhaps there is a converter for the electrical. That was the solution no one told us that pump was universal and needed the adapter. Not even the 2 different tecks at first house. Perhaps that should be stated in the part would have saved us tons of time. Thanks D
Read less
dennis from GRAHAM, WA
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers, Wrench (Adjustable)
7 of 8 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher Would Not Drain
I checked all the drain lines and filter for blockage. All looked good. I unplugged the unit and unscrewed the two screws adhereing the dishwasker to the counter. I shopvacced the water out of the bottom of the unit, slid it out, and carefully placed it on its back to access the pump. I unplugged the power to the pump, removed the int
... Read moreake and outake ring fasteners. Carefully removed the pump and inserted the new part, mopping up water as I went. Replace the rings, plugged in power to the pump, righted the unit and put it back. Replaced filter with the one that came with the kit.
Read less
Steve from CHASKA, MN
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
6 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
10 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Michael
July 9, 2021
Which drain pump do i order. I do not see my model number on the parts that work with this
For model number CDT835ssjoss
Hi Michael,
Thank you for your question. The part number listed under your model number for the drain pump kit is PS16219695. If you would like to place an order for it, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Jeff
October 9, 2023
Is this drain pump compatible with my GE dishwasher GDF510PSD0SS?
For model number PS16219695
Hello Jeff, thank you for the question. The drain pump kit you mentioned is compatible with your model. If you need help placing an order, customer service is open 7 days a week!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Bill
October 24, 2023
Dishwasher is not draining, replaced the pump assembly but still not draining. The pump does start and some water does leave the tub when I interrupt/Cancel the wash cycle. Is there anything else that would keep it from draining fully? I checked the hoses and the pump to make sure they are clear.
For model number GDT695SMJ0ES
Hi Bill, thank you for the question. As you have already checked the hoses and replaced the drain pump, we would recommend checking the electronic control board, part number PS12730509. It manages the functions of the dishwasher, such as washing, draining and drying. You may need to replace it to fix the issue. We hope that helps!
My pump cycles with the typical buzzing sound, but no water discharges. I’m assuming the impeller is shot. What would be the correct replacement?
For model number GDT530PGD4WW
Hi Tim, thank you for reaching out. Based on our understanding, we would suggest you checking the drain pump. You may need to replace the drain pump kit, part number PS16219695. We hope this sorts out your problem!
Was this helpful?
Thank you for voting!
Sara
December 30, 2022
Where is the check valve or back flow stopper on my dishwasher? Is there one? It drains fine, but seems to refill a bit with dirty water. I suspect a Barbie doll shoe or piece of glass is giving me the trouble.
For model number CDT725SSF4SS
Hello Sara, thank you for your question. The Turbidity sensor PS7783361 measures the
amount of suspended particles, dirt or debris of the wash water We advise to check the Ultra Fine Filter Kit PS12342852. Good luck and have a great day.
My dishwasher started leaking, we called a plumber everything as far as drains and water lines is intact and working properly. We tried to check the pump by turning it on. Nothing no lights nothing we did the reset at the breaker box still no lights. It is getting power we checked all of that. Help
For model number GDT655SMJ2ES
Hello Bridget, thank you for your question. If there are no lights after resetting the breaker, we recommend Dishwasher Electronic Control Board PS12730509. You can also use a Multimeter to test the board or timer. We hope this is of some help to you.
Dishwasher drain pump intermittent took apart found seed in pump. Reinstalled and still have issue. Drain pump buzzes then some times drain off and on.
For model number GDT68OSSH2SS
Hi Dan, thank you for reaching out to PartSelect. Based on our research, the fault is most likely with your drain pump. Replacing your drain pump is the only viable solution to your issue. To resolve your issue, we can provide you with a single-speed drain pump kit, part number PS16219695, which is compatible with your model. We hope this sorts out your problem!
Was this helpful?
Thank you for voting!
Bill
March 12, 2023
I'm looking for the correct drain pump
For model number GDT695SFL3DS
Hello Bill, We are glad you asked! Yes, the Drain Pump PS16219695 you had chosen is compatible with your model. We are pleased to have been able to help.
Was this helpful?
Thank you for voting!
Shawn
July 28, 2023
GE says this (WD26X21697) is the model number for the drain pump on this dishwasher. Please confirm either way and let me know.
For model number GDT655SGJ0BB
Hi Shawn, thank you for reaching out. Yes we can confirm that this is the correct part number for your Model. We hope this helps.
Was this helpful?
Thank you for voting!
Jeff
August 25, 2023
I would like instructions to install this part.
WD19X25187 Drain Pump kit
For model number GDT580SMF4ES
Hi Jeff, thank you for the great question. We found instructions to install the drain pump kit; they are not for the exact model but will help you:
Disconnect the power supply.
Open the door and remove the screws that hold it to the countertop.
Remove the hose clamp and the drain hose and take the dishwasher out of the cabinet.
Place the dishwasher on the side and remove all the clamps on drain pump connections with drain hose and sump.
Detach the drain pump from sump and drain hose by pulling it out.
Remove the electrical wire harness from the drain pump and take it out.
Follow back the same procedure to install the new drain pump kit.
Good luck with this repair!
