Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

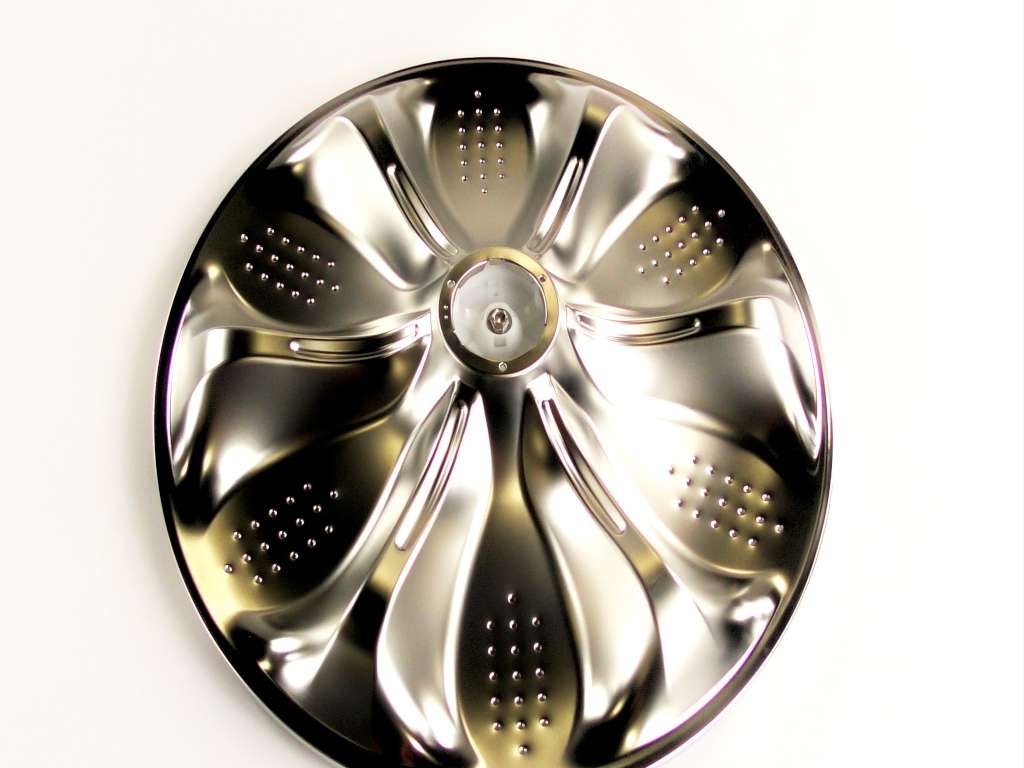

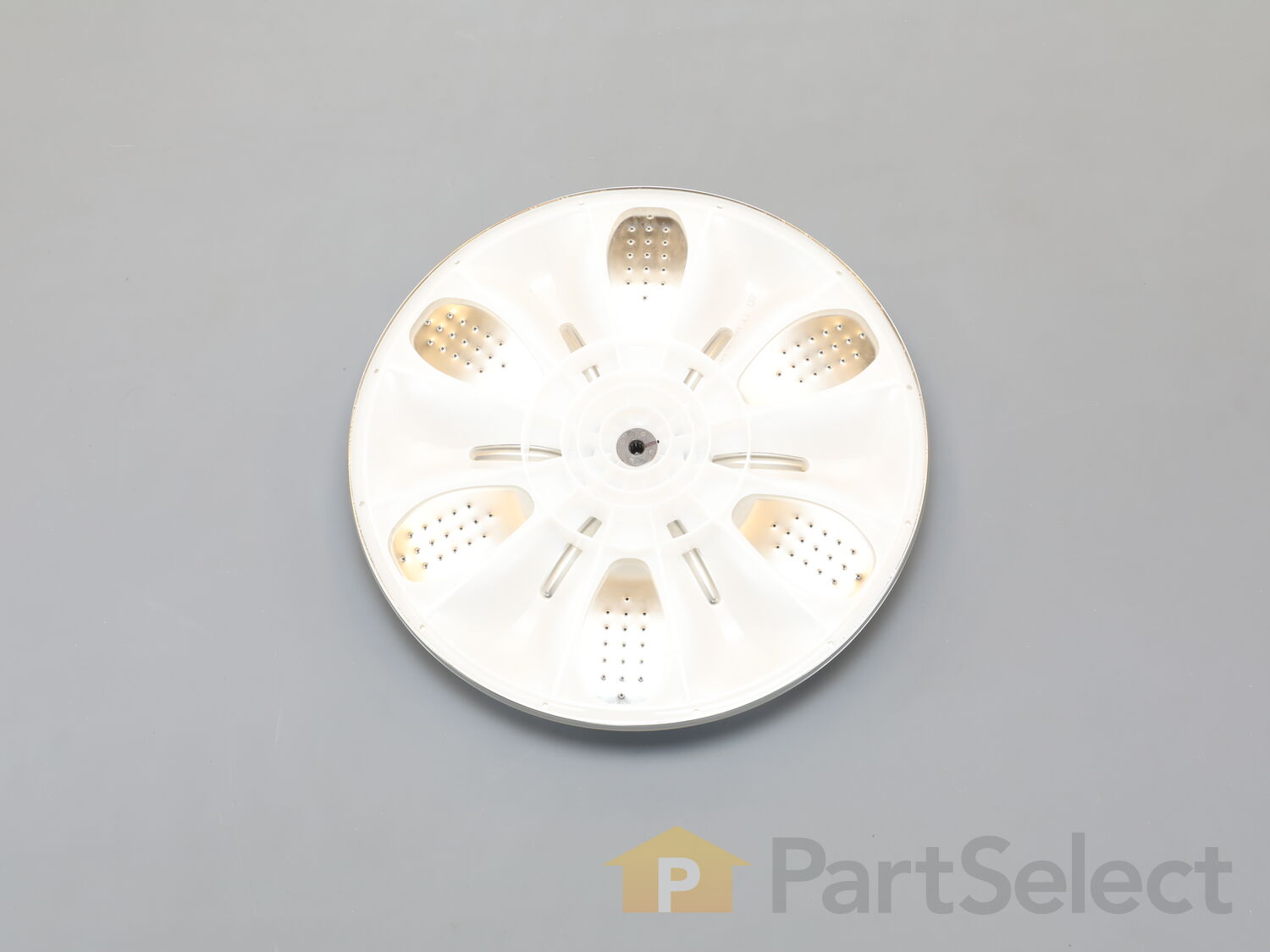

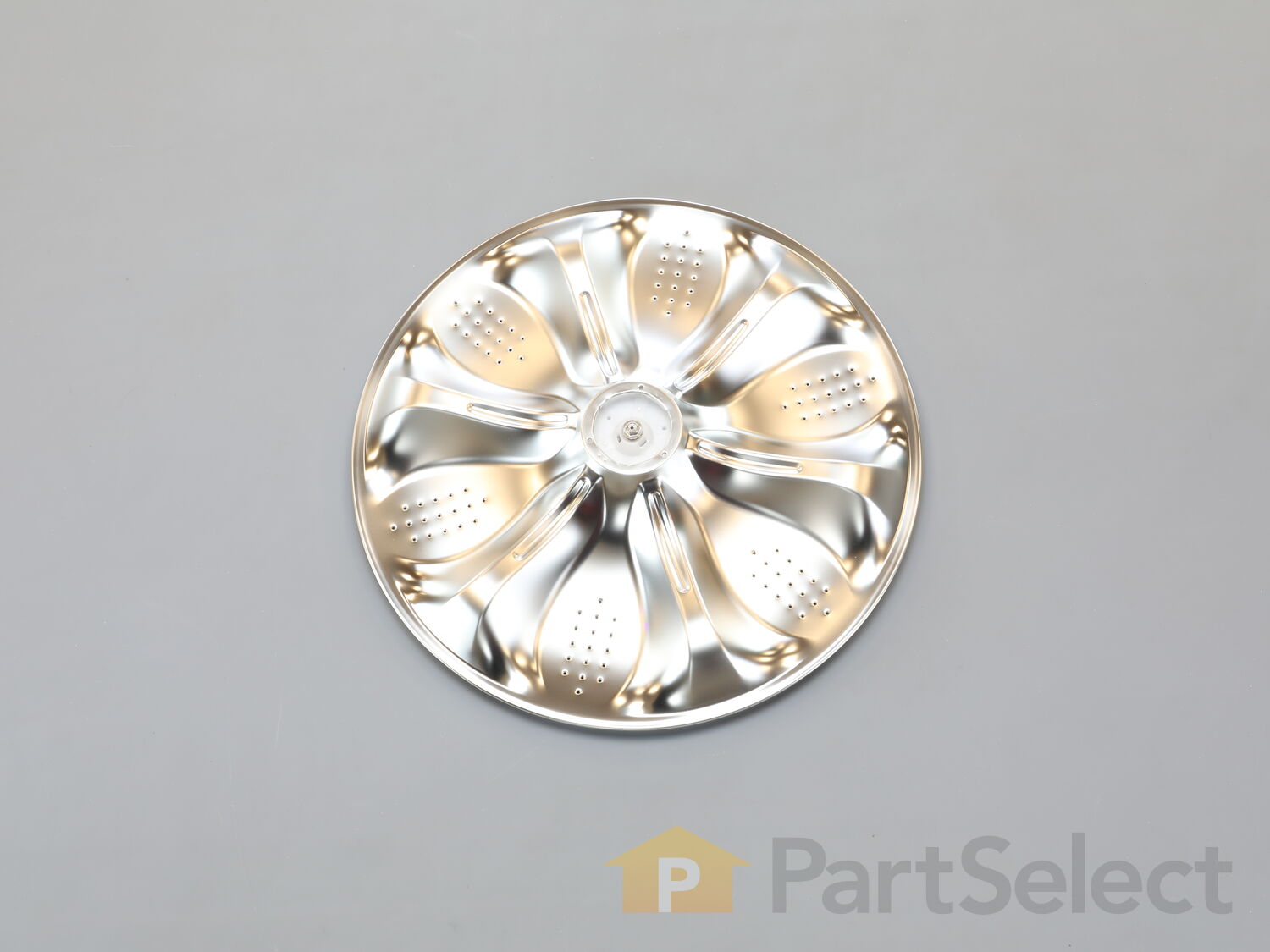

This is a pulsator assembly, also known as an agitator, for your washing machine. This pulsator sits at the bottom of your washer and is what is used as the main driving force to wash your clothes. This pulsator comes with a nut and plastic cap attached in its middle, to secure within your washing machine. If the pulsator in your washer is broken, it will need replacing immediately to continue to wash and clean your clothes evenly. The cap that sits in the center of this part is sold separately.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Sharon M - December 13, 2023
Verified Purchase
The part was the exact part needed!
The washer us up and running! Like brand new!
★★★★★
★★★★★
David N - January 27, 2022
Verified Purchase
Worked great!!
10 minutes and back in working condition. Simple I stall.
★★★★★
★★★★★
Monty N - July 30, 2022
Verified Purchase
Easy repairs
After diagnosing what was wrong with the washer I found the part online at parts select.. I have gotten parts from them before and have always been happy. This was one of the easiest repairs I have ever had. The pulsator assembly slid right on the spine, all teeth engaged and had one bolt to secure it. Again, the part worked fine.
★★★★★
★★★★★
Joseph S - April 20, 2024
Verified Purchase
Very easy repair
Pulsator assembly was the right part and very easy to put in place.
★★★★★
★★★★★
Dan C - January 28, 2019
Verified Purchase
We were given great service.
Customer service was stellar, very patient in helping to find tge correct part. Tracking imformation was helpful, arrived on time and works great!
★★★★★
★★★★★
RYAN N - February 6, 2019
Verified Purchase
Easy repair
The part is working well and was easy to install.
★★★★★
★★★★★
PHIL D - December 31, 2018
Verified Purchase
replacement of pulsator
Part was great came in one day next day air. It took 5 minutes to fix once I got the part.
★★★★★
★★★★★
Joe R - June 3, 2021
Verified Purchase
fast shipping
I was happy to see the part arrive quickly as promised.
★★★★★
★★★★★
Kevin L - September 30, 2022
Verified Purchase
Easy repair. Spot on
All went perfect.
★★★★★
★★★★★
Jason G - December 3, 2018
Verified Purchase
Easy repair
My washing machine is back in working condition. LG has a bad factory design with plastic splines. The replacement part was a factory part that was easy to install and we were washing clothes again.
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 3.5 / 5.0, 6 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
The bolt in pulsator kept coming out during the wash
I found the pulsator just spun freely, I determined the hole on underside should ribbed to align with the ribbed shaft. But it was wore away. I purchased the new part and replacement was simple. It slide right on and I replaced the bolt. Pulsator works great, washing again.
Deresa from BOLINGBROOK, IL
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
4 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
could not get the 10 mm nut to loosen
Tried everything and could not get it out I just use mesh bags for washing at this time, but LG washing machine is the worst I have ever had
Marilyn from THOMASTON, GA
Difficulty Level:
Very Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
very dirty under adjitator cap and pulsator
Tried to remove adjitator but it was stuck. Could not find any professional method of pulling it. There must be some type of puller,
Daniel from EDWARDS, IL
Difficulty Level:
Very Difficult
Total Repair Time:
1- 2 hours
Tools:
Wrench set
3 of 7 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Agitator was free spinning
Removed the center cover cap carefully on top of the agitator with a small screw driver. There are 3 (on mine) little slots around the edge of the bottom of the cap where it meets the agitator. Insert the small flat blade screwdriver and gently twist at each one till the cap pops loose and comes off.
There was a 10MM bolt under
... Read more the cap on mine that you need to remove. I used an cordless impact driver but you could use a socket wrench as well. Remove the bolt and the agitator comes off. May take a little wiggling or it may come right off.
The teeth on the agitator were wore all the way down and gone on mine so it came off easy and this was the issue I had why it was spinning freely. I took the small flat blade screwdriver and used the edge and corner of the blade to clean the teeth on the shaft where the agitator attaches and wiped it down before installing the new part as there was quite a bit of metal shavings from the damaged part.
I just reversed the order of removal to install the new part. Took about 15 min. I ran a rinse and spin cycle to remove any additional metal shavings and to check to see if it all worked properly. THATS IT! TOO EASY!
Read less
Joel from JASPER, MO
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Screw drivers
7 of 11 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Pulsator stripped out
The teeth in the pulsator assembly where stripped out on the original plate.
Ordered the replacement and it was 1 screw to undo and pop in the new assembly. Super easy repair
Anthony from FT WORTH, TX
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
2 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Washer pulsator was coming loose during wash cycle.
Since the old pulsator had actually come off during a wash cycle, I was able to place the new one on easily. Tightened the screw with a socket. Then placed the new cap on. Before placing the new pulsator on, I was able to clean all the mold and hard deposits off the mechanism under the pulsator. The hard deposits were also scrapped from
... Read morethe pulsator holding (where the screw goes) which may have caused the problem to begin with.
Ask our experts a question about this part and we'll get back to you as soon as possible!
13 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Barbara
December 20, 2018
The part called the wash plate came off in my machine and was lying sideways. I have tried putting it back on tight but it continues to come off. I bought 2 of these machines december 8, 2017. I am not happy this is giving problems already as i was told this was a great machine. Do you think the wash plate needs replacing or know why it won't stay on?
For model number wT7200C
Hello Barbara, thank you for your question. If the washplate won't stay attached we would recommend checking the shaft that comes up from under the tub to be sure the splines are not worn. If they are you would have to replace the clutch and shaft assembly part number PS7788161. If the splines on the shaft are fine, you will want to replace the following parts which include the washplate, washers, and nut that hold the wash plate to the shaft. Those parts are Screw,Customized Part Number: PS3534421, Washer,Common Part Number: PS3534424, NUT,COMMON Part Number: PS12368525, Washer,Common Part Number: PS3522866, and Pulsator Assembly Part Number: PS3532760. Good luck with your repair!
22 people found this helpful.
Was this helpful?
Thank you for voting!
Mark
January 2, 2019
Hello - thanks for a great website. I have a lgwt7200cw and my agitator quit working. It does not stay attached to the shaft on the bottom of the motor/clutch. It appears that i need a new agitator plate, cap, screw, etc. I have looked up these parts but it appears that the parts numbers have changed. The assembly i believe i need is ps3640017 with the screw but this part seems to no longer be available. Please assist. thank you.
For model number WT7200CW
Hello Mark, Thank you for the question. The Agitator Plate (pulsator) with screw is PartSelect Number PS3532760 and the Cap is PartSelect Number PS3525704. Hope this helps, good luck with this repair!
The round part in the bottom that looks like a hub cap(pulsator assembly part), came loose and was laying inside the washing machine. I put it back on and the pulsator spins but not the drum. What parts do i need, or is it worth fixing?
For model number WT4970CW
Hi Jackie, than you for your question. You may want to take a look at the underside of the pulsator itself and the parts underneath of the pulsator. Such as the nut and the clutch. It could be that those parts are all worn down. Whether it is worth it to replace parts would be up to you. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Darren
July 15, 2019
I need the part #'s for the agitator plate the bolt the cap and also the washers for the bolt and for the bottom of plate. If the old bottom washer went to the pump what are chances it will tear something else up?
For model number Wt7200cw
Hello Darren, thank you for inquiring. For your model the Wash Plate (Pulsator Assembly) is part PS12588963 (this comes with the hardware for it), and the Pulsator Cap is part PS3525704. You may want to remove the old washer from the pump to avoid future issues. We hope this helps.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Gary
November 2, 2021
My wash plate shaft broke, when I came home the part was lying loose in the tub of washer. I watched video of how to take off with 10mm socket however mine was broke.
For model number WT7600HKA
Hello Gary, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS12588963. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Graham
July 27, 2023
the washplate pulsator on the lg washing machine has plastic spline gears which have stripped off. The metal spline gears appear to be fine which mesh on the plate. There is a different gear assembly on the plate when ordering a new part.
For model number wt7200cw
Hello Graham, thank you for reaching out. The wash plate, part number PS12588963, you have mentioned is compatible with your model. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Maria
August 4, 2023
Why is the wash plate full of dirt? How do you clean it out? The bottom plastic part does not seem to come off, and you can see it is full of dirt. Many of the holes are even clogged.
For model number WT7100CW
Hi Maria, thank you for asking. We have found that dirt and detergent can easily build up on the inside of and below the wash plate, causing clothes and the machine itself to smell, if not cleaned regularly. To clean the wash plate, you may need to run a normal cycle on a high fill level, with warm water, and a deep rinse. Add ¼ cup of detergent and 1 cup of bleach to the drum of the washer. After five minutes have passed in the cycle, open the lid and scrub the inside of the wash plate with a long-handled brush. After scrubbing the inside of the wash plate, let the washing machine finish the cycle. When the cycle drains, any debris will drain through the water line, and leave your washing machine and agitator sparkling. Leave the lid of the washing machine open to ensure that everything completely dries. Leaving the lid open after every wash cycle will also help prevent odors in the future. We hope this information is useful!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Susan
September 30, 2023
The interior of my wash plate is full of black gunk. As I can't take it apart to clean it, will Part Select Number PS12588963 fit my model. It seems to have a more open design.
For model number LG WT7200C
Hi Susan, thank you for reaching out. The wash pulsator assembly you mentioned is compatible with your model. We hope this information helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Lawrence
January 10, 2023
Does the pulsator assembly comes with the hold down screw?
For model number WT1501CW
Hello Lawrence,. Thank you for writing. The Screw will be included with this Pulsator Assembly. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We hope this helps!
Was this helpful?
Thank you for voting!
Amos
March 6, 2023
Agitator stuck on shaft. Anyone have any recommendations for getting it free?
For model number WT5680HWA
Hi Amos, thank you for contacting us. To get the agitator free, we would recommend you remove the pulsator assembly, part number PS12588963. Following general instructions can be used to disassemble the pulsator: First, remove the pulsator cap using a screwdriver. Remove the central screw using a 10 mm socket wrench. The pulsator normally comes off after this screw is removed. But, if it is stuck, you might need to use some other technique to take it off. Take a wire, run it off through the small hole in the pulsator, and lift it. If this does not work, you may use a shoelace, insert it under the pulsator and lift it. The last option is to use a chisel and a hammer to break the central part. Use a vacuum to clean up the leftover pieces. Take the bolts out of the lower plate using a 10 mm socket wrench. The clutch housing assembly will become visible, and the agitator is free. We hope this helps, good luck with the repair!
Was this helpful?
Thank you for voting!
