Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

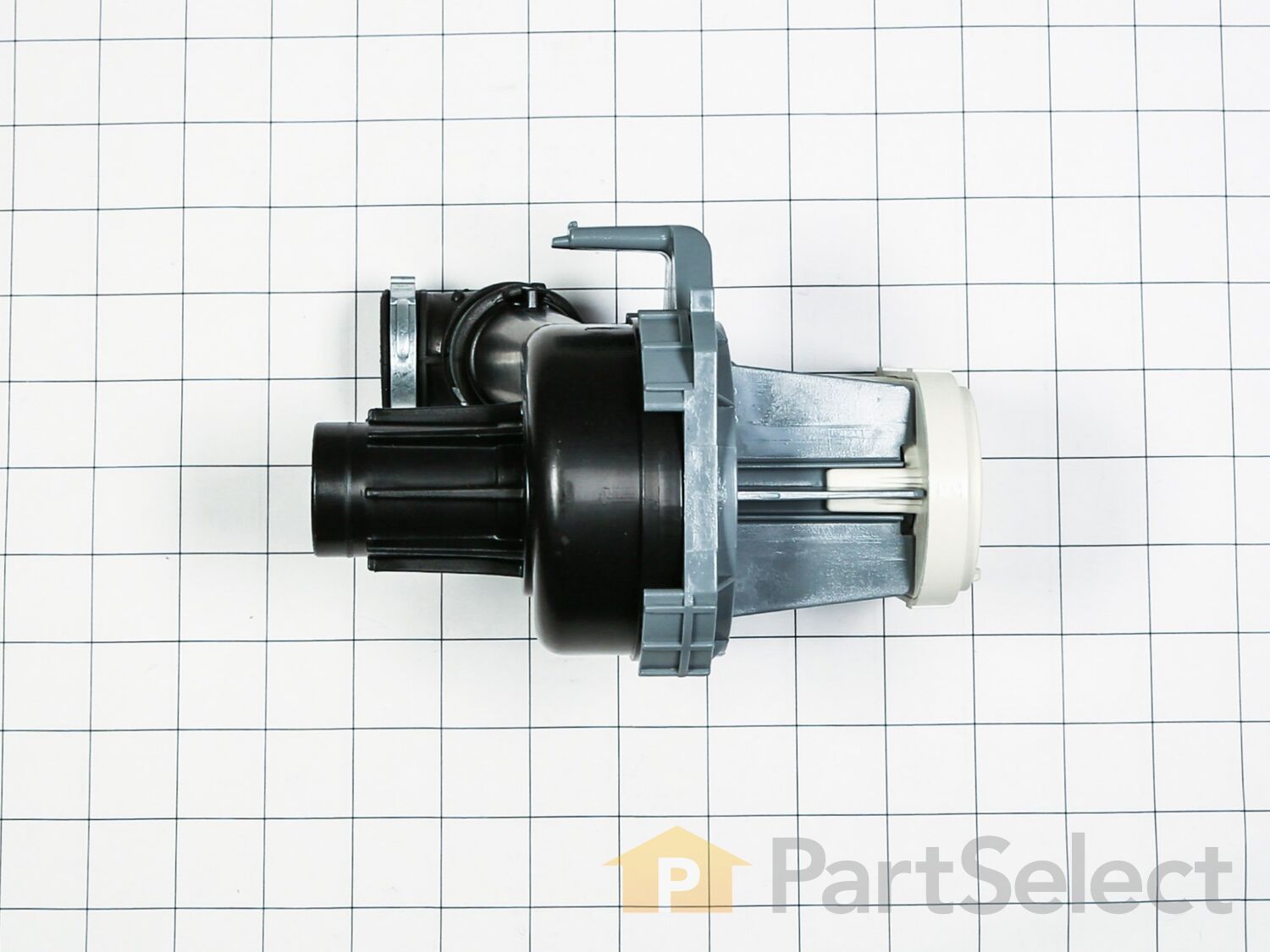

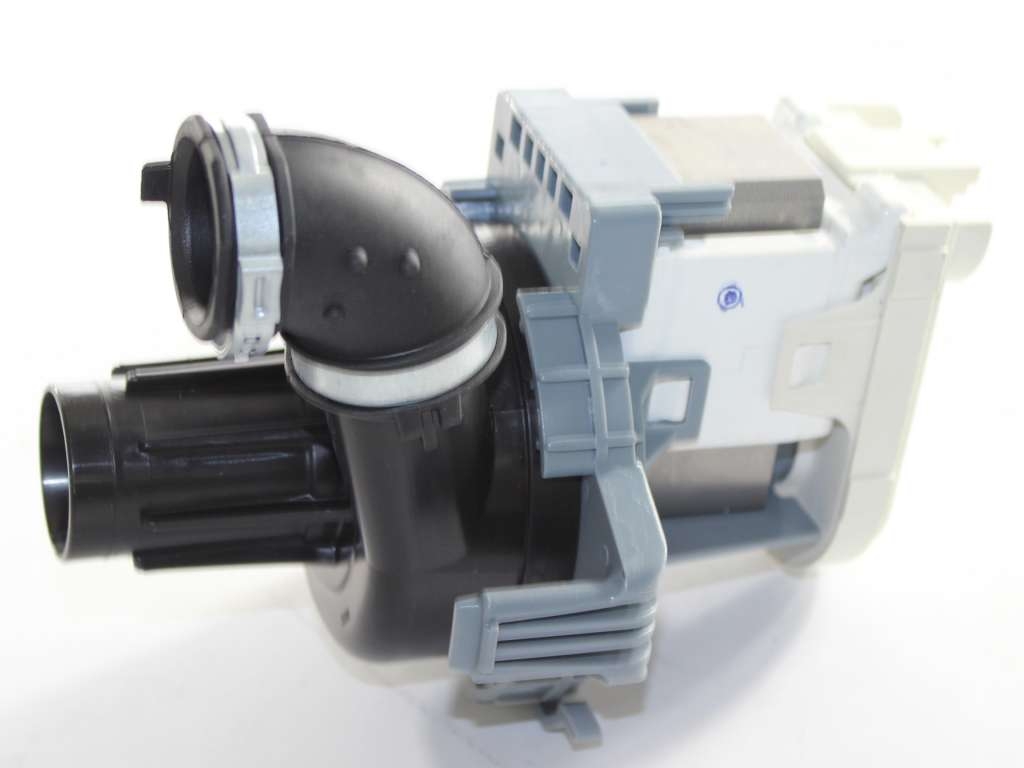

This OEM circulation pump and motor assembly fits select Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Magic Chef, and Kenmore dishwashers. It powers water flow through the spray arms, ensuring effective cleaning.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Michael P - December 2, 2020
Verified Purchase
Part was perfect
I was able to replace my dishwasher pump and it's back to brand new.
★★★★★
★★★★★
Leonard B - July 4, 2018
Verified Purchase
easy to fix, works just fine now.
the part was in good condition . fast service & delivery
★★★★★
★★★★★
Aaron R - March 19, 2020
Verified Purchase
New wash motor
The new motor fixed all problems the dishwasher was having
★★★★★
★★★★★
Zoltan S - January 23, 2019
Verified Purchase
Exact replacement
The part arrived quickly, fit precisely and worked great. Perfect!
★★★★★
★★★★★
Mark H - December 27, 2018
Verified Purchase
Works as advertised, easy install
Part came amazingly fast. Quick installation, no leaks, works great.
★★★★★
★★★★★
Edward F - December 10, 2018
Verified Purchase
Dish washer pump
Just what I needed works great!!!
★★★★★
★★★★★
Daniel M - May 25, 2019
Verified Purchase
Works
Hooked it up today and it works and shipped as expected.
★★★★★
★★★★★
Douglas S - August 13, 2023
Verified Purchase
Easy repair
Part fixed the issue I was having with my dishwasher.
★★★★★
★★★★★
Floyd K - February 14, 2019
Verified Purchase
Ease Repair!
The part worked great! It came quick and my wife is happy to have her dish washer working again.
★★★★★
★★★★★
Rose M - September 7, 2020
Verified Purchase
Dishwasher pump
My dishwasher is working again
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 3.2 / 5.0, 2 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
wash pump stopped working
change out the old pump with new one actually quieter running pump awesome
christopher from MOSES LAKE, WA
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
14 of 14 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishes not getting washed but water draining and filling working
Remove dishwasher from under kitchen counter. Lay down washer on it's back using some towels or other soft material to protect floor. Disconnect plug from pump motor and to get to the hose clamp easily I had to remove diverter motor. Be careful and slide diverter motor out slowly as it needs to engage the disc when putting back together.
... Read more This took most of the time since I had to orient the disc slot with the diverter motor shaft that has mating tongue that goes into slot. Install pump motor but use liquid dish soap as lubricant to get hose elbow and pump inlet to slide in mating parts. Be sure to lubricate with same on tang that fits into rubber slot. Tighten elbow hose clamp with proper pliers for job. Re-install diverter motor assembly. Inspect for any oops's and install washer back under counter. Hook back up to drain, water and electric power.
Read less
Bruce from Sultan, WA
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set
5 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
32 questions answered by our experts.
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jonathan
May 16, 2019
My dishwasher fills up with water and sounds like it is working for a few minutes, but then stops making noise until it drains. The water is hot, the soap dispenses, but just sits on the bottom of the tub. The dishes are not clean at the end, but they are wet. Would this be the correct part to replace?
For model number 665.13099N4212
Hello Jonathan, thank you for your question. Yes, it sounds like water is not being circulated through the unit to turn the spray arms and wash the dishes. We would recommend replacing the circulation pump/motor PartSelect Number PS11773089. Good luck with your repair!
23 people found this helpful.
Was this helpful?
Thank you for voting!
Galen
February 6, 2018
Will fill with water but will not go through spray arms drains fine is it the motor/pump
For model number KDFE104DBL0
Hi Galen,
Thank you for your question. If the water is not going through the spray arms, there are some parts that you will need to check to see which one is causing the issue. You will need to check the filter, the turbidity sensor, the heating element, the push-in retainer clip, the water inlet valve, the motor pump, the pump, the spray arms and the drain hose. I hope this helps. Thank you and have a great day!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Barb
March 9, 2018
Is there a video on changing the motor pump
For model number Wdf760sadm1
Hi Barb,
Thank you for your question. There is a video on our website that you can reference on how to install the pump. The dishwasher in the video may not show exactly like the one you have, but it will give you a general idea on how to install the part. You will find the video under part number PS11753379. I hope this helps. Thank you and have a great day!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Chad
November 16, 2017
I have water entering the dishwasher but it does not seem to be making pressure. I do not hear water going through the spray bars. It drains fine. Could this be the motor/pump or the motor?
For model number WDT920SADE1
Hello Chad,
Thanks for your question. The motor and pump assembly is the more likely cause for your issue. It can also be a good idea to examine the water inlet valve, part number PS11752927, to check if that is intact.
I hope this helps.
Hi Luwan, Thank you for the question. The most common part replaced if it is not draining would be the drain pump, PartSelect Number PS11753379.Here is a link to the video on how to do the repair. Hope this helps!
https://www.youtube.com/watch?v=LRTH3Wq_Apw
2 people found this helpful.
Was this helpful?
Thank you for voting!
Domenic
April 8, 2018
Water will not enter machine. Water valve is open. It did pump last load of water out. It will run through all cycles. Had a service man out who said it was the motor. Is it the diverted motor, or motor and pump? Unit is 4 years old.
For model number KDFE104DSS0
Hello Domenic, thank you for your question. If the unit is not pumping water through the unit, but is filling and draining you should replace the MOTOR-PUMP W11032770. Please enter the part number into the site for current price and availability. Good luck with your repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Julie
April 4, 2019
Im not exactly sure what's happening with my dishwasher. The inside of the tub is always dirty and my kids always say that the cups smell like throw up. Nothing seems to be getting clean. Ive had to manually clean out the dishwasher from black sludge. Its pretty nasty. I paid 700 for this machine and its been nothing but a pain. Ive had 3 repair s for it and and never had it actually working properly. Please help me!
For model number KDTE204ESS3
Hello Julie, thank you for your question. We would recommend removing the filter PartSelect Number: PS11759673 and screen PartSelect Number: PS11755148 and cleaning them well. You may also want to remove the spray arms and clean them well. Reassemble the unit and run a cycle with vinegar and water. If that doesn't clean the smell, you may want to replace the circulation pump, sump and the hoses. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
ALLEN
September 10, 2019
The machine drains. But it does not wash. Which pump would it be ?
For model number WDF750SAYM3
Hi Allen, If your washer fills with water but doesn't agitate, the problem is likely to be a faulty lid switch, a broken belt, or a problem with the motor. If it is a motor it likely would be the pump motor. Thank you for your question and good luck with your repair!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Mark
June 21, 2022
Are your parts genuine OEM parts?
For model number KDTE204ESS1
Hello Mark, Thank you for the question. All the parts we sell are brand new OEM parts direct from the manufacture. We never sell used or after market. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Does this pump heat the water as it circulates it?
For model number wdf760sadm2
Hello Stephen, Thank you for contacting us. The circulation pump only circulates the water to the spray arms. For the model number that you have provided, the heating element would actually help to heat the water, but you should still make sure there is hot water flowing into the dishwasher from the fill hoses. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
