Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

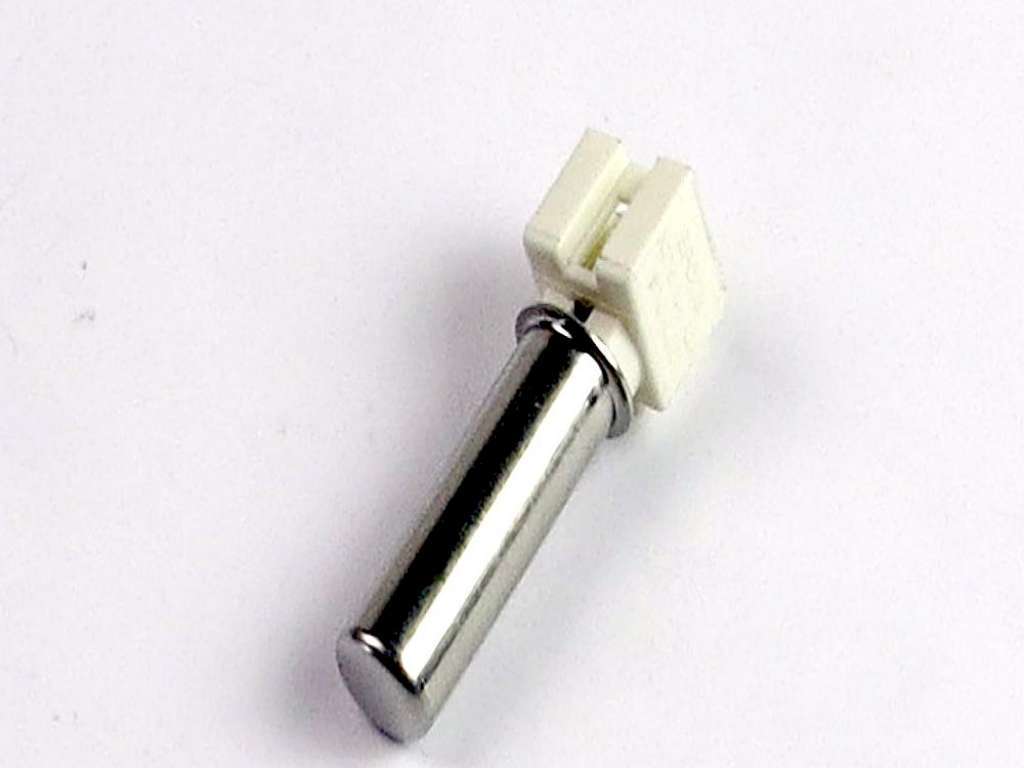

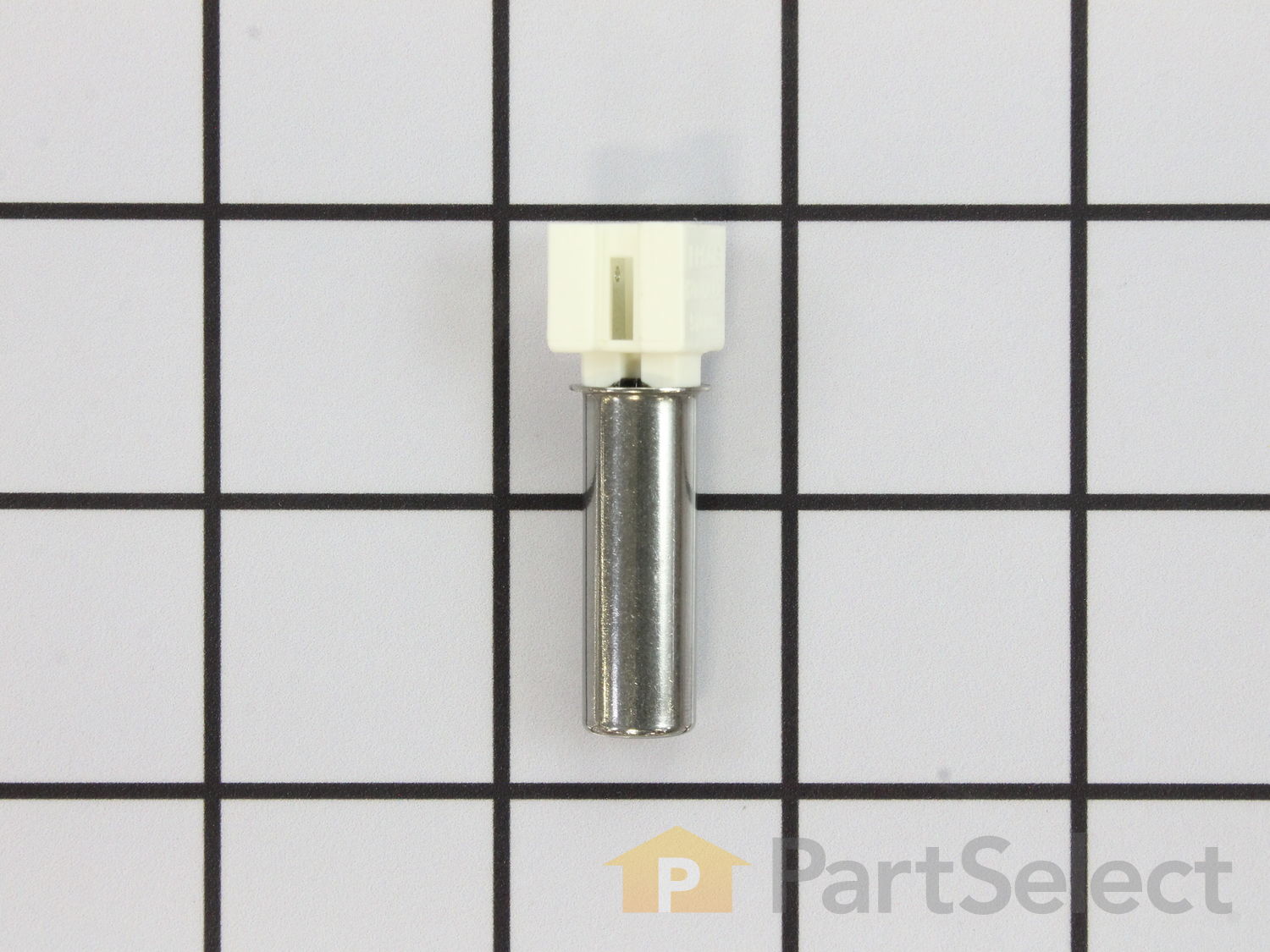

This part regulates the temperature of the water in the tub. The sensor is located in the heating element.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Yolanda R - October 27, 2021
Verified Purchase
Easy repair
The part came fast and was easy to install. My washer is now working great!
★★★★★
★★★★★
Janice S - October 31, 2018
Verified Purchase
Temperature Sensor
The part works great thanks for being quick to get it to us
★★★★★
★★★★★
JANET S - January 18, 2019
Verified Purchase
Temp sensor
perfect fit , and quick
★★★★★
★★★★★
Gordon M - September 25, 2018
Verified Purchase
Easy repair
Finally got a chance to install this. Really easy, just hope it works.
★★★★★
★★★★★
Chyral Waldron/Gerald Bean W - May 3, 2020
Verified Purchase
Very easy repair. Make sure to turn water off and drain water in washer. Sensor is behind back plate near bottom of washer.
With all the computerized equipment today, this little bugger was the problem for my Maytag washer. I had bought all the other major components before so I knew it wasn't them. Even my appliance guy couldn't figure it out so I checked the entire washer components, diagrams, manuals, etc over and voila. This water temperature sensor was the issue. Washer working like a charm.
★★★★★
★★★★★
Paul K - October 30, 2023
Verified Purchase
5 min swap
The technical manual was spot on.
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 2 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Replacing the heat sensor following an F-24 Error Notice.
I followed your repair video explicitly, simple fix. However, one should be careful when disconnecting the two prong electrical connector from the heat sensor. the two black wires can pull free easily. In that case, the rear of the female plastic wired connector must be extracted to allow the two black wires to be "pushed"
... Read moreinto the narrow slot which displaces the wire insulation and allows for a good electrical connection. If a punch tool is not available a pair of needle nose pliers works. Also, observe the orientation slots on both the male andfemale connectors - they connect one way only! I set the washer on it's face while effecting this repair to better see what I was doing (eyesight not as good as it used to be). Thanks for the timely support!
Read less
william from VIRGINIA BCH, VA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Washer posting a f6 error
This was an easy fix . PartSelect was quick and had all the info I needed to repair my washer. Plus shipping was super fast. Thanks
Robert from Salt Lick, KY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
37 of 111 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
32 questions answered by our experts.
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Bryan
November 10, 2017
Can you tell me what the approximate resistance should be in the temperature sensor. My washer turns on, the control panel lights up, the door locks and the timer starts counting down but no water ever starts running. Washer is almost 7 years old.
For model number WFW9451XW00
Hi Bryan,
Thank you for your question. This part should read around 11 ohms of resistance when testing. I hope this helps. Good luck with your repair.
9 people found this helpful.
Was this helpful?
Thank you for voting!
Barry
November 19, 2017
The washer starts to fill but then shows the code f 24. What do I need to do to fix it or do I need to replace the sensor?
For model number WFW9550WW00
Hi Barry, Thank you for the question.The "F24" error indicates that there is something wrong with water temperature. If the temperature of the water is fine the Sensor,PartSelect Number: PS11755214
will need to be replaced. Hope this helps!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Roselyn
August 8, 2018
I'm getting an F05 error code on my Whirlpool duet washer. Which of these parts if any do i need?
For model number GHW9150PW
Hi Roselyn, Thank you for your question. The F05 error code means that you are having a temperature sensor error. You would have to check the Water Temperature Sensor, and Heating Element to see which one is malfunctioning. I hope that helps. Good luck with your repair.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Rick
June 10, 2019
Hello. Whirlpool washer wfw97hedw0 after pressing power turns back off between 2 4 seconds no noises
Regardless if moving control knob it will still turn off with in 2 4 seconds
No door lock trigger like normal
Pressing go button make it shut off faster
Thank you for any input
For model number wfw97hedw0
Hello Rick, thank you for your question. There are a few parts that coudl be causing that issue. We would recommend testing the Temperature Sensor Part Number: WPW10467289, Flowmeter Part Number: WPW10110225, Dispenser Actuator Switch, Part Number: WPW10352973, Noise Filter - 275V and 50/60Hz, Part Number: WPW10367632, LOCK, DOOR Part Number: WPW10443885. I hope this helps!
Hello Peter, Thank you for the question. F8 E2 Code indicates there is a problem with the Dispenser System. Verify detergent drawer or detergent cartridge is not clogged with detergent. Hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Doug
January 22, 2018
I push the power button and all it dose is beep three time and dose not turn on?
For model number MHWE300VW12
Hi Doug,
Thank you for your question. It sounds like you may have locked your control panel. I could suggest pressing and holding the stop/cancel button for about 30 - 60 seconds to see if that unlocks your panel. You could also try unplugging the power from the machine for about 5 minutes and then plugging it back in. I hope that helps. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Jim
August 10, 2021
With cold/cold selected on the machine, it starts and begins to fill with water. However, it never gets to the washing cycle before error code 'f 05" starts flashing. The machine then drains and stops. When the door is opened, the water is hot. Any help would be appreciated.
For model number GHW9400PL4
Hello Jim, Thank you for the question. The F05 Error Code indicates a defective Water Temperature Sensor, PartSelect Number PS11755214. This part should read around 11 ohms of resistance when testing. I hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Cynthia
February 24, 2025
Maytag maxima washer have a temperature sensor and where is located
For model number MHW6000XR2
Hello Cynthia, thank you for reaching out. Your model comes with the temperature sensor, part number PS11755214, which is located within the heating element assembly. We hope this information helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Pedro
March 4, 2018
How i can test if the drain pump is no damage
For model number MHWE450WW01
Hello Pedro, thank you for your question. To test the temperature sensor you will want to remove the part and test with a multilmeter. This part should read around 11 ohms of resistance when testing. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Brian
January 1, 2018
My Maytag washer lights up, and the door locks but there is no water and the tub does not turn. Can you help?
For model number MHWE400WW01
Hello Brian,
Thanks for your question. We would advise testing the door lock/latch switch assembly with a multi-meter to test the part for continuity, and replacing it if it shows no continuity. The drive motor may also be worth checking to see if it is getting power properly.
I hope this helps.
