Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

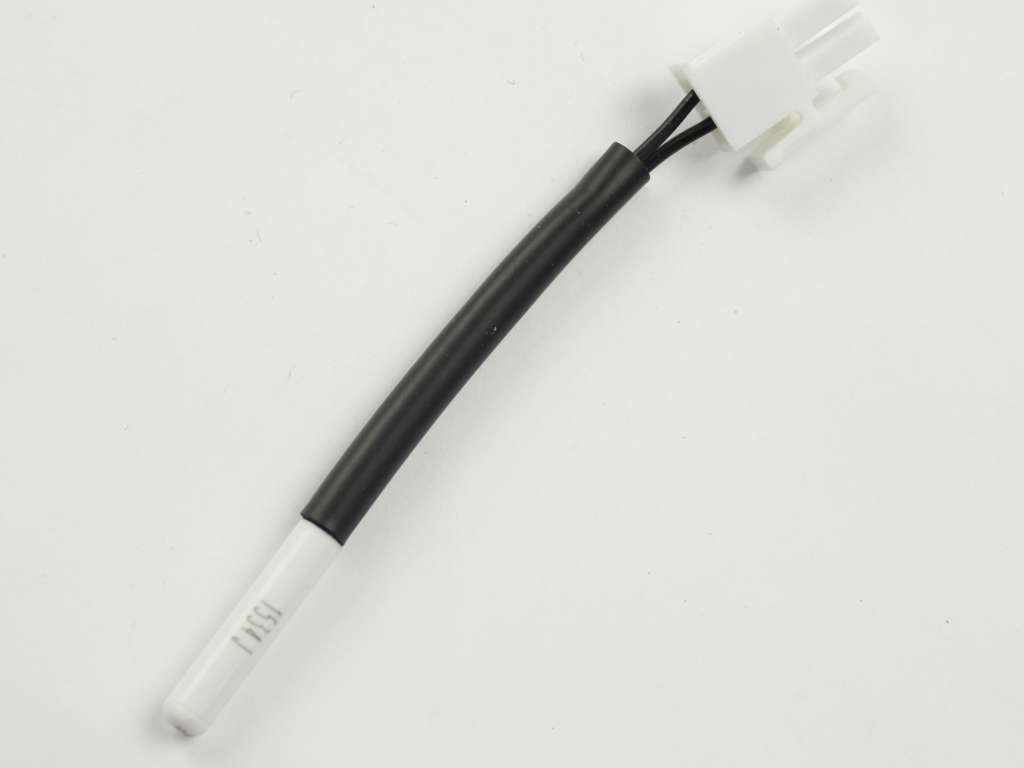

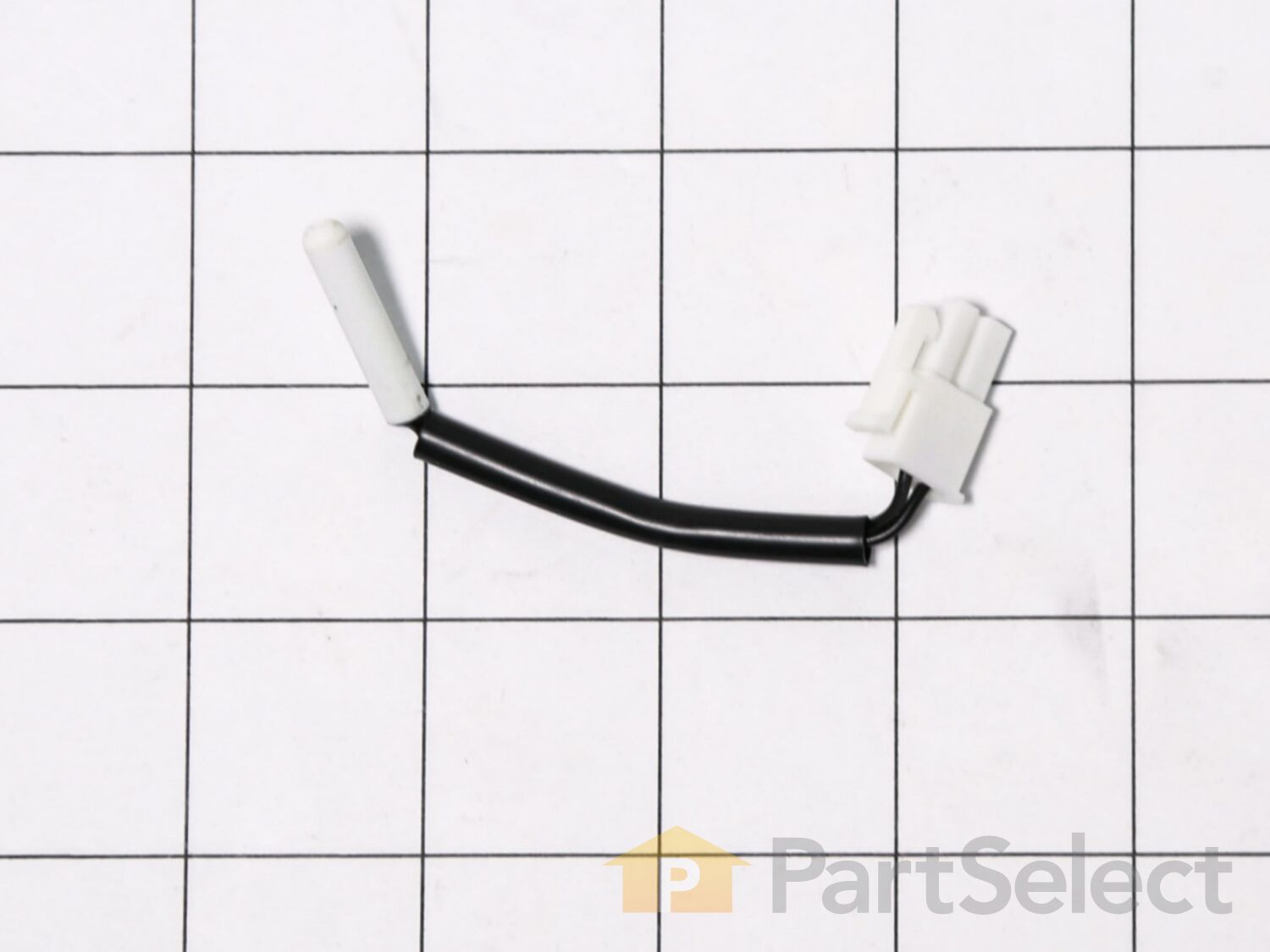

Stay assured with the Whirlpool Refrigerator Temperature Sensor, a reliable thermistor for ensuring optimal cooling in your refrigerator. This genuine OEM part, designed for a variety of Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef models, aids in accurate temperature sensing. Its size and shape are crafted to perfection to fit your appliance seamlessly. Please ensure appropriate model compatibility before purchase. Trust this dependable Whirlpool thermistor, designed with precision, to keep your refrigerator at the ideal temperature for food preservation.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Replacing your Whirlpool Refrigerator Temperature Sensor
Troubleshooting
This part fixes the following symptoms:
Fridge too cold | Too warm | Frost buildup
This part works with the following products:
Refrigerator, Freezer.
Part# WPW10384183 replaces these:
AP6020677, W10384183
Customer Reviews
Average Rating:
★★★★★
★★★★★
1 Review
5.0
Filter By Rating:
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Raymond R - October 8, 2022
Verified Purchase
Easy repair
The part worked perfectly
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
19 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
John
November 5, 2018
I would like to know what the ohms value for the thermistor, that is located on the inside, to see if it needs to be replaced. The part no. Is wpw10384183.Thank you,
john
For model number WZF34X16DW00
Hi John, thank you for your question. There should actually be a tech sheet with what the thermistor is supposed to be reading behind the bottom kickplate grill of your appliance on the left hand side. However, if you do not have that there, usually at room temperature you should be reading around 11000 ohms. In a cup of ice water you should be reading 27000 ohms. I hope that helps. Good luck with your repair.
15 people found this helpful.
Was this helpful?
Thank you for voting!
Dennis
March 8, 2019
Dear partsselect,
Where can i find the spec sheet for the freezer thermostat so i can test it's resistance throughout it's temperature range.
thanks,
dennis
For model number WRT318FZDM02
Hello Dennis, thank you for your question. There should actually be a tech sheet with what the thermistor is supposed to be reading behind the bottom kickplate grill of your appliance on the left hand side. However, if you do not have that there, usually at room temperature you should be reading around 11000 ohms. In a cup of ice water you should be reading 27000 ohms. I hope that helps. Good luck with your repair.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Darryl
October 21, 2021
My fridge and freezer are to warm. I replaced the capacitor and start relay and the evaporator fan seem to be running fine. My question is, is there any other part the could be the problem?
For model number WRT318FZDB02
Hello Darryl, Thank you for the question. We suggest testing the Refrigerator Temperature Sensor. There should actually be a tech sheet with what the thermistor is supposed to be reading behind the bottom kickplate grill of your appliance on the left hand side. However, if you do not have that there, usually at room temperature you should be reading around 11000 ohms. In a cup of ice water you should be reading 27000 ohms. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Eddy G.
November 22, 2024
Does temperature sensor come with the controller?
For model number WRT311FZDZ02
Hello Eddy, Thank you for reaching out. This is just the sensor as seen in the picture. Thank you for the inquiry, good luck with the repair!
Was this helpful?
Thank you for voting!
Scott
December 3, 2024
Why can’t I find WPW10384183 in my fridge as indicated in the diagram?
Freezer is at -2 and fridge won’t go below 40…
I’ve cleaned coils, replaced evaporator fan, diffuser…I’m running out of ideas
For model number WRS325SDHW01
Hi Scott, thank you for the question. Based on our research, the temperature sensor, part number PS11753996, is located inside the right side wall of the freezer and the fresh food section . You may need to test the sensors and replace the faulty one to fix the issue. We hope this sorts out your problem!
Was this helpful?
Thank you for voting!
Einar
July 7, 2021
The lower refrigerator section is freezing the contents, just like the top section. Would that be caused by part# 13, temp sensor for the lower section?
Hello Einar, thank you for contacting us, In order for us to locate the correct parts and repair information we will require the model number of the unit. Once you have located the model number please feel free to resubmit the question and we will be happy to help you. We are looking forward to hearing from you!
Was this helpful?
Thank you for voting!
Sharon
July 20, 2021
Our refrigerator is freezing everything. We ordered the thermistor (part w11438736) and replaced it, but it's still doing it. What would be the recommendation to try next?
For model number WRT318FZDW02
Hello Sharon, Thank you for the question. When the coils on your fridge are dirty or dusty, then the compressor needs to work harder and longer to keep the freezer temperature at freezing temperature and can cause the Fresh Food Section temperature to be lower and freeze food. We hope this helps!
Was this helpful?
Thank you for voting!
Cindy
July 23, 2021
Good morning,
I cleaned the coils thoroughly, i’ve checked the seals on the refrigerator and freezer but my food is still freezing in my refrigerator. what would be causing this the refrigerator is not even three years old. i’ve also tried multiple ways to adjust and readjust the temperatures.
thank you
For model number ART308FFDW03
Hi Cindy,
Thank you for your question. If your refrigerator is too cold, there are some parts that you will need to check to see which one is causing the issue. You will need to check the temperature sensor, the capacitor and the main control board. We hope this helps! Good luck with the repair!
Whirlpool upright freezer is not freezing and coils are frozen up. What would cause this?
For model number WZF34X20DW01
Hello Clint, Thank you for the question. This normally indicates there is a issue with the Defrost. We suggest testing the Defrost Heater. You can also make sure the Fan Motors are running and circulating the air properly. We hope this helps!
The freezer is not defrosting so the food is getting warm in the refrigerator because the ice build up in the freezer blocks the air flow. There are two thermistors. One in the freezer and one in the control panel in the frig. How do I test each one to be sure that their working? The paper that has all the diagrams under the fridge doesn't show temps for either thermistor. I could really use your help on this one.
For model number WRT311FZDW01
Hello William, Thank you for the question. At room temperature you should be reading around 11000 ohms. In a cup of ice water you should be reading 27000 ohms. We hope that helps. Good luck with your repair!
Was this helpful?
Thank you for voting!
