Model Number Locations
1Select Category Type
Select Category Type
2Select Product Type
Select Product Type
3Select {MODEL} Type
Select {MODEL} Type
Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

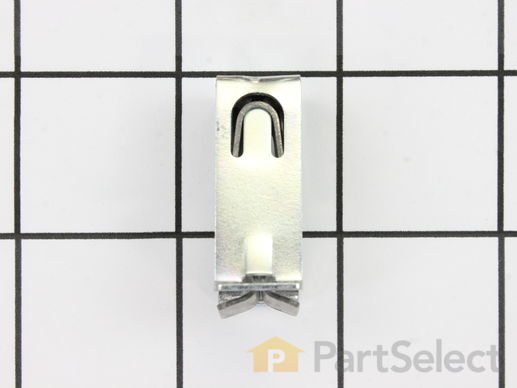

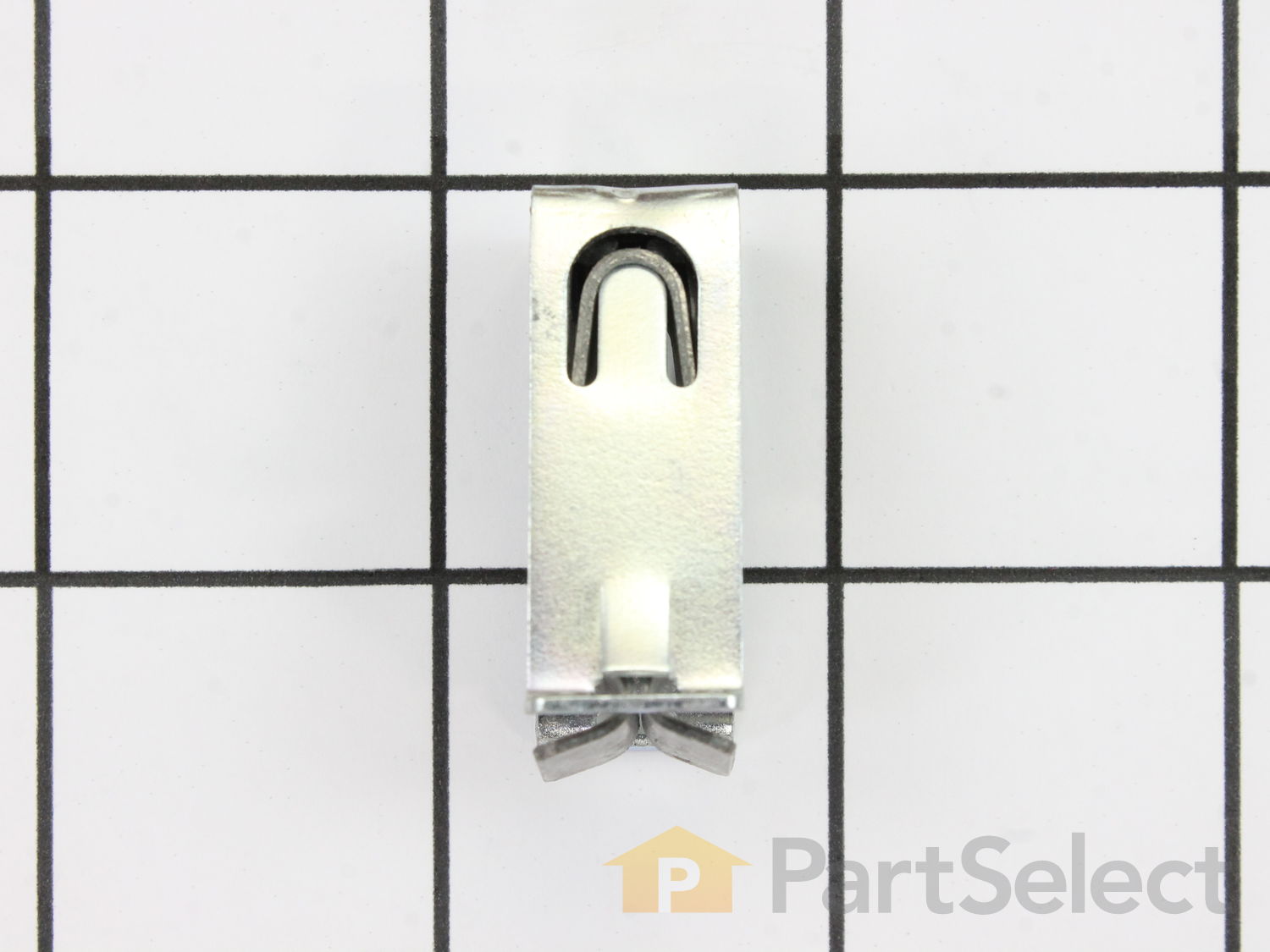

This replacement door catch is for your dryer door. If the catch is broken and the door will not stay shut, the dryer may not turn on. Use a putty knife to pop out the existing door catch by the locking tabs, and insert the new one. Make sure to unplug the dryer before beginning this repair.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Barbara B - July 18, 2019
Verified Purchase
Loose door catch
Arrived fast, installed quickly and worked perfectly. Thanks
★★★★★
★★★★★
Richard B - June 3, 2020
Verified Purchase
Easy repair for do it yourselfers
Part came well pack came on time shipped to me when promised
★★★★★
★★★★★
Kimberly R - June 2, 2021
Verified Purchase
Yassss! Perfect part!
Yassss! Perfect part, easy to replace, fixed the problem. Thank you so much for a great price and super fast delivery!
★★★★★
★★★★★
Linda M J - August 10, 2022
Verified Purchase
Exactly what we needed
The only frustration was in removing the broken one by prying off. Took two of us and once we heard a piece drop down in the dryer door, then and only then were we able to install the new one. What looked like a few minutes to do job was at least an hour. But not the fault of the new part. Needed some tapping to get it in. Very pleased with the part.
★★★★★
★★★★★
Michael H - April 21, 2020
Verified Purchase
Tricky part made easy due to help from Tech Support
The part received was the correct part; however, the installation was tricky. My support tech talked me through the steps necessary to do the installation. I only wish I knew how to tell him how much I appreciated his help.
★★★★★
★★★★★
Samantha W - September 30, 2018
Verified Purchase
Simple!
Works just the way it was intended.Would have liked that instructions were included as to how to remove the old broken one. Ended up just pushing it back through to rattle inside the door but the replacement one slipped right in the slot and works great!
★★★★★
★★★★★
Isaac R - September 14, 2021
Verified Purchase
Great!
Parts Select provided the right part for my dryer. With the video instructions, it was a easy fix.
★★★★★
★★★★★
David S - May 6, 2020
Verified Purchase
Right Part
This was an exact match part. Some door disassembly required to remove exist. part.
★★★★★
★★★★★
Holly K - January 27, 2024
Verified Purchase
Easy repair
The item came so quick and fixed my dryer door in a snap.
★★★★★
★★★★★
Craig H - September 1, 2020
Verified Purchase
Easy Repair .....
Easy to order, part was an exact fit, one problem! Ordered 2, charged for two, received one... tried several times to correct this, but because of “COVID” not answering phones! really?...check your records,charged for two like my bank records show.... would like the other one.....
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 4.4 / 5.0, 26 reviews.
What's this?
Sort by:
< Prev
1
2
3
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
pushed the broken catch into the door and snapped the new one back in. Works perfectly!
ERNST from FLOSSMOOR, IL
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door catch broken
Didn't have a putty knife, so used a flathead screwdriver to carefully pop out the top, then bottom of the catch. New one easily popped in. Took less than one minute!
Polly from POTTSVILLE, AR
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
door catch broken and fell into door
snapped new catch into door
Phillip from FORSYTH, MO
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door wouldn't shut
Looked up on the internet, saw a video, ordered the part using model of dryer, got the part in 7 days, took out old part and snapped in the new door latch. Now it works good as new
Jean from CARROLLTON, GA
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door Catch broken
Took Putty Trowel and pried out top and bottom then pulled out with needle nose pliers, new part just pops back in (be sure flanges are on top and bottom not sides).
Forrest from PARIS, TN
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door catch broken
Push in new catch...close door.
ROBERT from GAINESVILLE, FL
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Latch Replacement
Used a screwdriver to pry out the bottom of the latch then the top. Pulled old latch out, then snapped new one in. Super Simple fix.
Kathy from W TERRE HAUTE, IN
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Plastic part in door catch was broken so door would not lock to allow the dryer to operate
I tried to remove the part with pliers but could not remove it so I removed the screws that hold the front part of the door. I took the front part off, removed the broken plastic and then lifted on side of the catch so that the bottom of the front part came thru the door and then was able to remove the door latch. The installation of the
... Read more new part took about 15 seconds to put in by pushing it into the opening where the broken part was removed. I put the front part of the door back and put the screws back and the dryer works fine.
Read less
Henri from SILER CITY, NC
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door Latch Broken
Ordered new latch. Installed new latch into the dryer within one minute.
James from Oceanside, CA
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
3
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
13 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Marwa
July 20, 2017
How do I even begin with this repair? I need to install the new door catch and remove the broken one.
Hello Marwa, you need to remove the door from your unit and disassemble it. However, take note of how you disassemble it for reassembly. To access the dryer door catch WPW10111905 you will need to remove the inner door panel from the door frame. Best of luck with this repair.
25 people found this helpful.
Was this helpful?
Thank you for voting!
David
July 20, 2017
The door on my dryer was not staying closed so I replaced both the dryer door catches and it went smoothly but the door is still opening. Whats the most common solution here?
Hello David, thanks for your question. If the door springs WP3387565 are not functioning properly or are not in place, this will cause issues with your door. We recommend that you remove the dryer's toe plate and check to see if the door springs are installed properly. I hope this helps.
4 people found this helpful.
Was this helpful?
Thank you for voting!
JODY
October 4, 2017
I am looking for a door catch for this particular dryer. Do you have any in stock?
For model number WGD8000BW0
Hi Jody,
Thank you for your question. Yes, the stock status is just above the Add to Cart button by the part information. This part is in stock. Good luck with your repair.
4 people found this helpful.
Was this helpful?
Thank you for voting!
Reta
July 20, 2017
Is this the female and the male piece?
Hello Reta, great question! This is the female piece for your dryer door. For the male piece that is needed with the front panel you can find it here W10295405. I hope this helps!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Brian
January 15, 2020
I don`t need the door catch, i need the part that fits into the door catch. Model ywed8200ywo serial m21401596 Whirlpool cabrio platinum.
For model number ywed8200ywo cabrio platinum dryer
Hello and thank you for writing.
The door strike part number: PS2373322 is in the list of compatible items for your model. We hope this helps. Please contact us anytime.
Whirlpool dryer part ywed8200ywo part that fits into door latch
Hello and thank you for writing.
Yes, this is the part that the door latch on most will fit in, however as we do not have your model number we would be more than happy to confirm that is will be the correct one for your model once you supply the number. We are looking forward to your reply, please always notate the model number. Thank you.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Sharon
May 2, 2018
Need the male part of the door catch. Where can I find one?
For model number MEDB200VQ0
Hello Sharon, Thank you for contacting us. I have researched the model you have provided and have found the part you’re looking for is PartSelect Number: PS2373322. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
David
February 27, 2019
Is there any type of way to bypass the door to turn on the dryer
For model number Wed8500bwd
Hi David, thank you for your question. No unfortunately. You should not use your appliance without a working door switch as that door switch makes sure that your appliance does not run if there is something wrong. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Cathy
July 22, 2017
I need to order the door catcher. In looking at your video, my husband tried to remove the one on the left (not in use) but it is not as easy as you showed. The bottom part came out very easy, but the top did not want to come out. I need to order this part but want to make sure it will work with my dryer. Thank you.
For model number WGD6200SW
Hello Cathy, thank you for your question. According to the model number you provided, this will be the correct door catch for your appliance. You should have no problems installing it. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Que
August 27, 2017
I've replaced both thermal fuses and now a f23 is show on the control panel, wats that mean?
For model number WED7300XW0
Hi Que,
Thank you for the question. F23 error code means that the dryer heating circuit isn't working. This means that your thermistor is out of range and you'll need replace it. The thermistor is located near the thermal fuse you' replaced.
Hope this helps !
