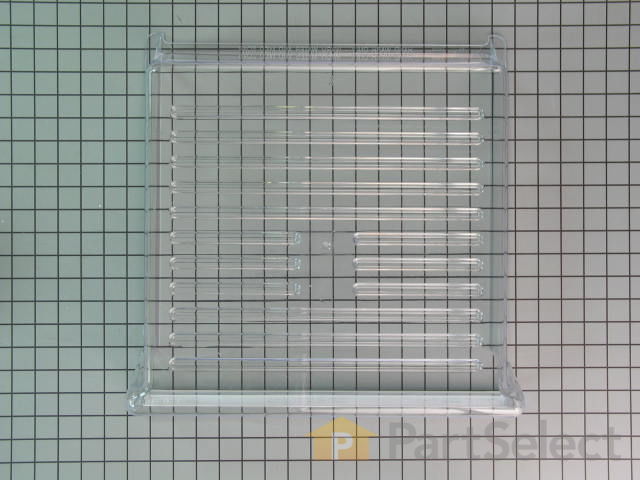

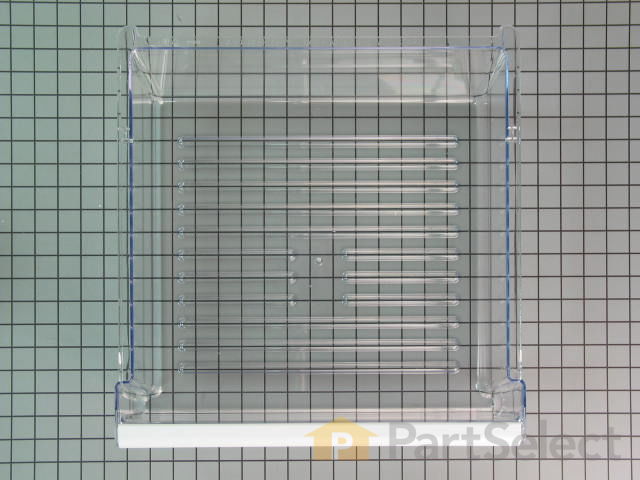

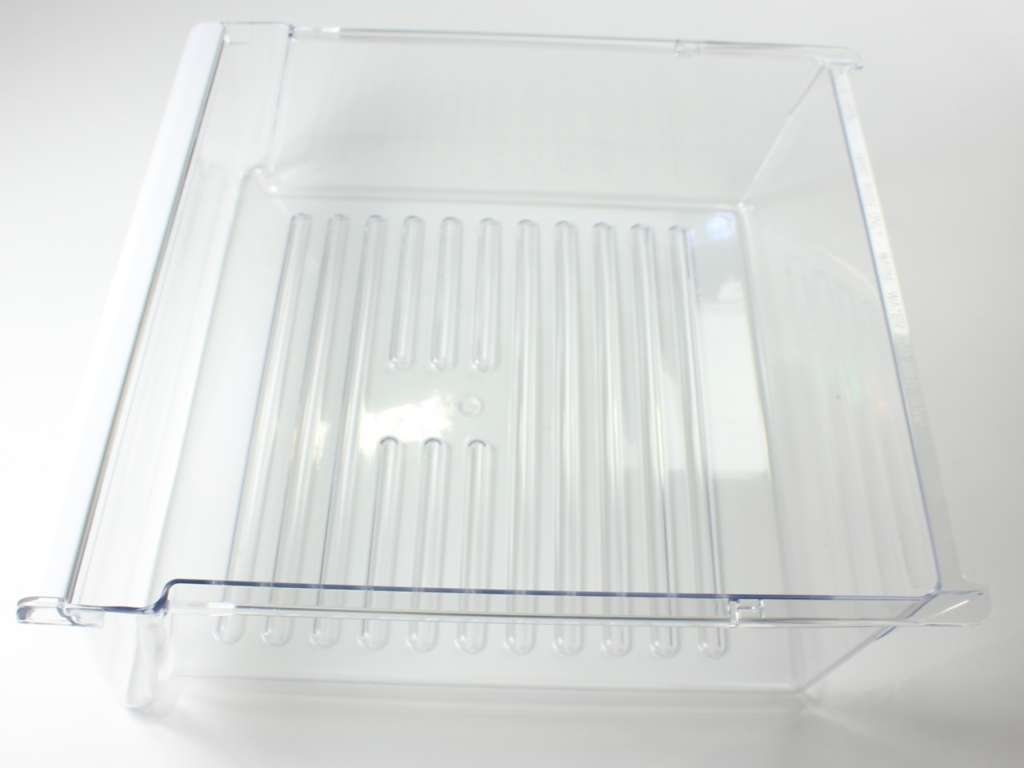

The snack pan in your refrigerator stores food and other items that you intend to keep cold. It is the top drawer in the refrigerator and is also the smallest of the three drawers in this model. It is made of clear plastic and slides into a drawer glide attached to the top glass shelf. The drawer measures 16 inches by 16-1/2 inches by 4-3/4 inches. If your snack pan is cracked or damaged, you may want to replace it. This drawer contains a series of ribs in the bottom of the drawer. Be sure to check the drawer glides and the glass shelf that correspond to the snack pan in your refrigerator if the pan will not slide in or out properly.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Much cheaper than buying a whole new fridge. Tenant had broken many parts which some we were able to retrieve from one that had gone bad. Parts are expensive but much less expensive than buying a new fridge. We bought the shelf and the snack pan , took about 10 mins to put together.
Linda from MESA, AZ
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Snack pan drawer was out when refrigerator door was closed. The snack pan drawer was cracked and needed to be replaced.
Replacing the drawer was extremely easy. The refrigerator door need to be completely opened. Drawer slides out very easily and new drawer slides in where old drawer came out. Three minute job, tops.
It was a simple process to exchange the damaged parts, no tools were necessary. The most difficult part of the repair was in determining the correct replacement part. The diagram ilustrations on the website were not really clearly identified. Luckily I chose the correct replacements and all turned out sucessfully.
pulled out the old snack pan and slid the new snack pan in.
Donald from Carthage, NY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
1 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
9 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jim
January 4, 2018
I need all 3 drawers... would you please give me the name of each drawer and the part numbers? thank you!
For model number ED2VHEXVB01
Hi Jim, Thank you for contacting PartSelect. As posted on the website, the Top Drawer is the Snack Pan,Part Number: PS11740301. The Middle Drawer is the Crisper Drawer with Humidity Control,Part Number: PS11739119 and the Bottom is the Meat Pan with Handle, Part Number: PS11739122.Good luck with the repair!
I need all three. Snack pan, crisper and meat pan, thanks.
For model number Whirlpool Refrig. ED5FVGXWS07
Hello Doug, thank you for inquiring. For your model the Snack Pan is part PS11740301, the Crisper Drawer with Humidity Control is part PS11739119, and the Meat/Vegetable Drawer with Handle is part PS11739122.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Cindy
January 25, 2018
I cannot seem to find a replacement drawer for my refrigerator. The current small drawer says "deli drawer". It is the smallest drawer. Is this what you refer to as the snack pan? If so please advise what the correct part is for my model?
For model number 10641163310
Hello Cindy,
Thanks for your question. The deli drawer for your model is part number PS11755790.
I hope this helps.
Our power went out during hurricane irma so decided to clean inside of refrigerator. Now having a problem attaching the snack drawer to the glass shelf. Keeps falling out. Doesn't hold in place. Where can i find a diagram of these pieces connecting. Please help. Thank you.
For model number ED5LVAXWQ00
Hi Delores,
Thank you for your inquiry. From reviewing the information under your model number it looks like the snack pan slides into slots on the snack shelf frame with glass, part number PS11751711. If the drawer is falling out you may have to replace the shelf. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Bonnie
August 9, 2017
Need a new drawer for my fridge...need to know measurements of replacement part....its the smaller drawer approx. 5" x 16" x 17" could you tell me the parts number for this part
For model number ED2VHEXVQ01
Hi Bonnie,
Thank you for your inquiry. Unfortunately I do not have the exact measurements on this part, however if you are looking for the very top drawer in your appliance, according to your model information this would be the part that you are looking for. Good luck!
Was this helpful?
Thank you for voting!
SUZANN
September 13, 2017
Looking for the part number of the smaller drawer. The meat or snack drawer. Thank you
For model number ED5FVGXWS
Hi Suzann,
Thank you for your inquiry. This would be the part that you are looking for. Good luck with your repair.
Was this helpful?
Thank you for voting!
Doug
March 17, 2020
I have broken the very bottom drawer on the refrigerator side. Can you tell me the name of the drawer and the part number so i can order a replacement.Thank you!
For model number WRS325FDAM04
Hi Doug,
Thank you for your question. The part number listed under your model number for the drawer is PS11739122. To place an order for the part you may order it either online, by visiting our live chat sessions, Monday to Friday from 8AM to 4PM EST, or by calling our customer service line at 1-888-738-4871 and anyone will be happy to assist you. We hope this helps. Thank you and have a great day.
Was this helpful?
Thank you for voting!
Tami
September 24, 2021
Need all 3 drawers, could you give me part number for each, please.
For model number ED5VHEXTL01
Hello Tami, thank you for your question. We have researched the model you have provided, and we would suggest the snack pan, part number PS11740301, the Refrigerator Crisper Drawer with Humidity Control, part number PS11739119, the trim, part number PS11739021, the Refrigerator Crisper Drawer With Handle, part number PS11739122 and the trim, part number PS11739021. We hope this helps!
Is this the drawer replacement for snack pan (WPW10256800)?
I only need the drawer portion.
For model number GSS30C7EYY00
Hello Don, thank you for your question. We have researched the model you have provided, and part number PS11751285 is the correct part for your unit. If you need help placing an order, our customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Was this helpful?
Thank you for voting!
