Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

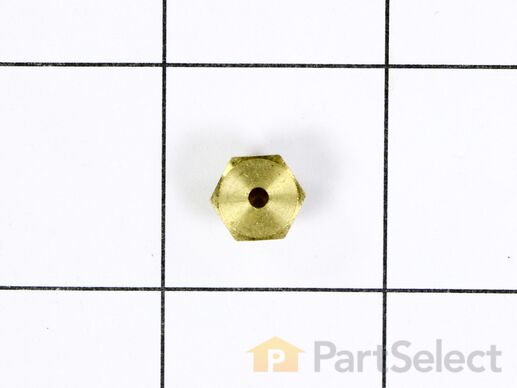

Introducing a genuine, OEM replacement part: the Whirlpool Natural Gas Burner Orifice. This important component is designed for select Whirlpool models, including some from KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef. The key function of this burner orifice is to regulate the flow of gas from the burner tube. Please ensure to disconnect the power and close off the gas supply before replacing this component. To keep your hands safe, it's recommended to wear work gloves whilst carrying out this task. Authentic Whirlpool parts ensure optimum functionality and longevity for your appliances.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Ask our experts a question about this part and we'll get back to you as soon as possible!
9 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Nathan
October 16, 2021
What parts do I need to convert this dryer from LP to natural gas?
For model number WGD9300VUO
Hello Nathan, thank you for your question. We have researched the model you have provided, and we would suggest the Orifice, Burner (Type 1), part number PS11738696. We hope this helps!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Matt
March 18, 2024
What do I need to convert my Maytag Dryer from LP back to Natural Gas? They did not leave any parts with it when changed out. Do I need anything other than the orfice? It looks like a regulator is not needed based on the manual.
thanks,
For model number MGD3100DW0
Hello Matt, thank you for getting in touch. According to our research, to convert back to natural gas, you just need to replace the LP orifice with the natural gas orifice, part number PS11738696. We hope this information helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Tanya
August 12, 2017
My dryer is now covered for lp. I need to convert it to natural gas. Is this the part i need?
For model number WGD9200SQ0
Hello Tanya, that is a great question. That would be an orifice for natural gas. You would need to purchase each one separately as they are not sold in a kit. Hope this helps!
Was this helpful?
Thank you for voting!
John
January 22, 2020
My dryer is lp now, I want to convert back to natural gas, what parts are needed ?
For model number wgd9550wlo
Hello John, thank you for your question. To change this back to Natural gas the gas valve would have to be ordered. That is PartSelect Number PS334359. Please enter the part number into the site for current price and availability. Good luck with your repair!
What size orifice is for natural gas 55? I got my dryer used and want to make sure it was not changed to lp the orifice that is in there has a 55 on it.
For model number WGD75HEFW0
Hi Bob,
Thank you for your question. Part number PS11738696 is a natural gas orifice and the size is 20M. We hope this helps! Good luck with the repair!
Was this helpful?
Thank you for voting!
Fred
August 10, 2021
What part(s) do I need to change back from LP to Natural Gas
For model number MGD3500FW0
Hello Fred, Thank you for the question. The parts that would be needed for converting back to Natural gas will be the orifice PartSelect Number PS11740485. We hope this helps!
Was this helpful?
Thank you for voting!
Matt
June 26, 2025
what do i nee dto switch my dryer from LP back to natural gas?
For model number 11078132413
Hello Matt, thank you for getting in touch. To convert your dryer back to natural gas. You may need to install the natural gas orifice, part number PS11738696. We hope this helps!
Was this helpful?
Thank you for voting!
C
July 25, 2023
Converting this dryer from propane to natural gas, is this the orifice that I need?
For model number 11076922501
Hello C, thank you for the query. According to our research, you may need to replace the orifice, part number PS11738696, to convert the dryer to natural gas. We hope this helps!
Was this helpful?
Thank you for voting!
Bradley
October 29, 2023
I need to switch this dryer from LP to natural gas what parts do I all need...thanks
For model number Mgdc200xw1
Hello Bradley, thank you for your inquiry. To change the unit back to natural gas, you would want to order the following parts: orifice, part number PS11740486, regulator spring, part number PS11743789, regulator adjustment screw, part number PS11743790, and natural gas limiter, part number PS11743791. Good luck with your repair!
