Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

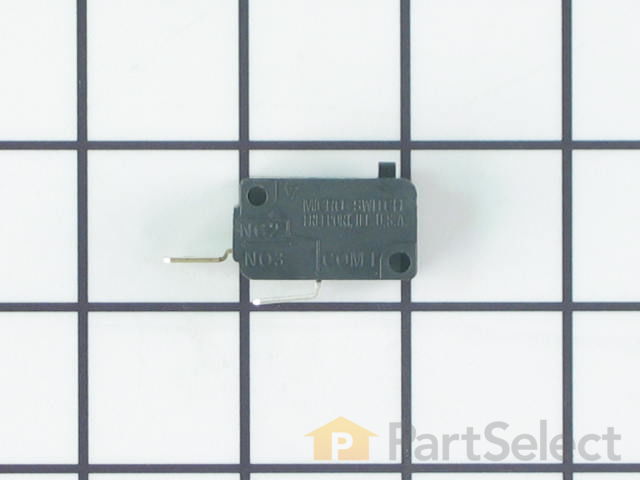

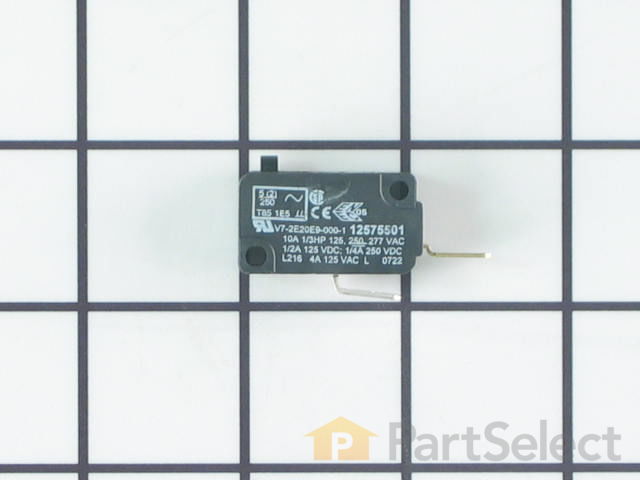

Discover the ultimate solution for your appliance repair needs with this Genuine Replacement Micro Switch from Whirlpool. This is a high-quality, authentic component specifically designed for your refrigerator. Its central function is to effectively control the dispensation of ice or water when the dispenser lever is pressed, ensuring a smooth and efficient operation. With safety being a paramount concern, remember to unplug your refrigerator and secure all perishable food items before installing this part. To maximize protection, wearing work gloves during the installation process is recommended. Rest assured, this authentic Whirlpool part offers durability and reliability for your daily needs.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Ask our experts a question about this part and we'll get back to you as soon as possible!
11 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Peter
February 25, 2018
Inside the refrigerator, on left side, there's a button for water dispensing. The water drips from dispenser constantly and steadily. Do you know if this is a water valve issue ( back of fridge,feed line connects to water & ice) or is it the switch at the dispenser?
For model number MFD2560HES
Hi Peter, Thank you for the question. Yes, I recommend replacing the water valve, PartSelect Number PS11743618. If the valve is stuck open a bit it will allow the water to flow tot he dispenser and drip. Hope this helps!
6 people found this helpful.
Was this helpful?
Thank you for voting!
Roger
July 31, 2018
I tried to use the water dispenser and no water came out so i replaced the water filter and pushed and i heard it click for a half a second and then it made no sound or any water after i pushed it. Would that be a limit switch problem and if it is how do i get the face plate off to replace it? The button, for the water dispenser, is on the inside of the refrigerator.
For model number MFD2560HEW
Hi Roger, Thank you for your question. It could be your limit switch. We do not have any installation information on this part exactly but this is a video that we have on how to take apart that area: https://www.youtube.com/watch?v=20L52LEtPNY&t=64s . I hope that helps. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Stefan
October 2, 2019
The water dispenser stopped working. Just changed to a new water filter. I run the water through filter filled up several glases to make sure the filter was operating correctly. No problem at that time. After 24hrs, the water stopped working. The panel lights was still on. Reset the filter light that was red to Green. Turned off the dispenser light. Everything went off on the control panel. It doesn't lit up or provides water or ice . . . ? Not sure what the issue might be. Ps. I even brought back the old filter to make sure the new waterfilter was not at fault. Thanks for your help. Stefan
For model number MSD2651HES MAYTAG
Hello Stefan, thank you for your question. We would recommend unplugging the unit for about 5 minutes to see if that fixes the issue. If it does not, it sounds like the dispenser control board Part #: PS11743557, would have to be replaced. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Kenneth
July 23, 2017
Water makes pumper noise and nearly stop working . Started when filter was installed it will stop a small amount of water is released and starting a loud pumping noise and the water will stop.
For model number MFC2061HEB
Hi Kenneth, thanks for the question. Based on what you have told me, it seems that once you installed the water filter, your refrigerator is only dispensing a limited amount of water, if any at all? When your refrigerator experiences this symptom, it is most often an indication of a problem with the water filter itself. Sometimes when you install a new water filter it will sputter a little when you operate it initially, which is normal. You may want to ensure you have the correct water filter installed, and in the case of your model, the one you are looking for is PS11722130. I would also recommend you take a look at our repair guide by entering your model number into our website and diagnosing your symptom. There are in fact some other parts that may be causing the problem, but the water filter is the most common. I hope this helps. Best of luck with the repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Michael
June 11, 2019
Hello, my ice maker will not run or fill with water. I have replaced the complete ice maker and the water valve with news ones from your website, and checked water flow. The water in the door will fill a glass in less than a couple seconds. I have also tried to jump the ice maker but it appears the ice maker has no power. I also rechecked all electrical connections at both the ice maker and water valve and they are clean and connected. Any suggestions on my next step. Thanks mike
For model number MCD2257HES
Hello Michael, thank you for writing. You may want to consider the Plastic Tubing part PS11747816, the Cycling Thermostat part PS11743313, or the Run Capacitor part PS11743364. We hope this helps.
Was this helpful?
Thank you for voting!
Jesse
March 22, 2022
Inside refrigerator left side water dispenser is leaking water slowly. Installed a new water valve lower back of refrigerator. And now it is still leaking slowly, no change. Could it be now be the limit switch behind the dispenser unit left side?
For model number ABD 2233 DES
Hello Jesse, thank you for your question. we would suggest checking your water fill lines. We hope this helps.
Was this helpful?
Thank you for voting!
STEVE
April 4, 2023
BOTH TEMP DISPLAY A MINUS(-) SIGN.
TRIED UNPLUGGING FOR 10 MINUTES.
THEN PLUGGED IN AND PUSHED THE DOOR SWITCH 3 TIMES
THEN HELD IN THE - TEMP BUTTON.
DID GET NUBER TO COME UP.
IT CHANGED TO A - IN 30 SECONDS.
DID PUT IN A TEMP CAPACITOR AND COMPRESSOR STARTS
For model number WRF535SWHZ02
Hello Steve, Thank you for your inquiry. If you have replaced the run capacitor, then we would recommend checking the thermistor. We hope this helps.
Water was shutoff by city. When tried to use water dispenser it took a while for water to circle through filter so in kept my finger pressed. When water came through, it didn’t stop. When I removed filter, water stoped dispensing but filter unit started leaking. Only way to stop it is to shut water to fridge. I don’t think the dispenser button is stuck as I hear it click. But it seemed constantly engaged.
For model number KBFS20EVMS5
Hello Ammar, thank you for contacting us. Based on our understanding of the issue, we would suggest you replacing the limit switch, part number PS11738544. We hope this solves your problem!
Was this helpful?
Thank you for voting!
Thomas
November 29, 2024
I have replaced the ice maker and the water valve at the back. I have no water from inside or the ice maker.Where would I trouble shoot next?
For model number KBFS25EWMS8
Hi Thomas,
Thank you for your question. If there is no water going to the water dispenser or to the ice maker, the issue may be with the water filter. If the water filter has not been replaced within the last 6 months, it is likely clogged and it will need to be replaced. Once you have installed a new water filter, run 2-3 gallons through it, so it can operate normally. We hope this helps!
I pushed for water inside the fridge as I believed water was filling the ice maker. I think it made a noise and no water will come out of inside the fridge. The pump seems to be working and ice continues. I am guessing I did something to the valve. What do you think it could be?
For model number KBFA25ERSS01
Hello Damon,
Thanks for your question. That is a likely possibility - we would recommend testing the water inlet valve with a multimeter for signs of electrical continuity and replacing it if it shows no continuity. Test the limit switch as well. You may also want to replace the water filter if it has been 6 months since the last time you changed it.
I hope this helps.
