Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

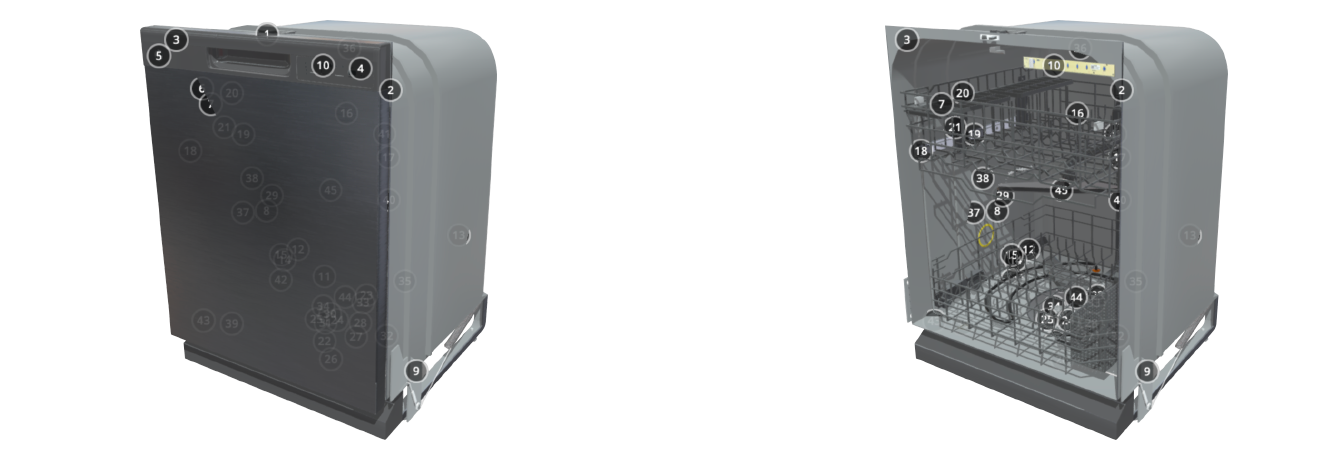

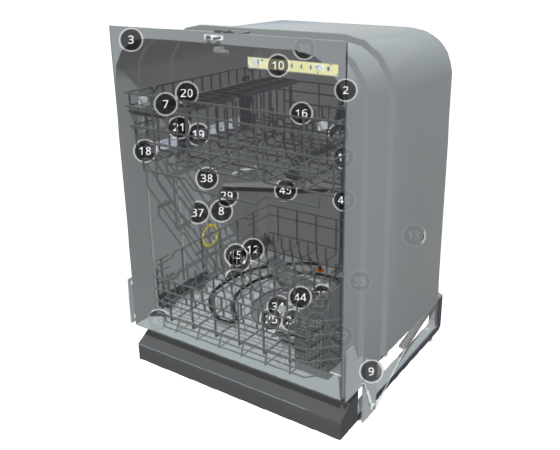

GDF510PSJ0SS General Electric Dishwasher - Overview
Save your modelModel Saved!
Save your model for later to make things easier.
Model has been saved to My Models. If you're not signed in, your lists are available on this device and will expire within 30 days.
Model has been saved to My Models.
The lower rack roller supports the smooth sliding of your dishwasher’s bottom rack. Measuring 1.5 inches in diameter and charcoal-colored, this OEM replacement part is sold individually. Replace all f...
$12.95
In Stock
Order within the next 12 hrs and your part ships today!
This part is a replacement gasket for your dishwasher. The gasket creates a seal at the bottom of the dishwasher tub, so water does not leak out while the dishwasher is running. If you notice water le...
$30.95
In Stock
Order within the next 12 hrs and your part ships today!
This lower spray arm assembly in your dishwasher distributes water and detergent during the washing cycle by spinning around and spraying water in different directions. You can usually find it attache...
$25.95
In Stock
Order within the next 12 hrs and your part ships today!
This is replacement door latch for your dishwasher. The door latch is attached to the tub frame, and connects to the door strike to keep your dishwasher door closed during operation. If you have a bro...
$45.95
In Stock
Order within the next 12 hrs and your part ships today!
The tub gasket, also known as the door gasket runs along the perimeter of your dishwasher basin and creates a seal that prevents water from leaking out when the tub is full. If you notice water on the...
$29.95
In Stock
Order within the next 12 hrs and your part ships today!
This dishrack is for dishwashers. The dishrack holds the dishes in place during the dishwashing cycle. Follow the instructions in the manual when installing this part.
The element heating assembly is found at the bottom of the dishwasher tub, and helps to warm the water in the wash cycle, and dry the dishes afterward. If the water does not heat up during the wash cy...
This is a flood switch assembly for your washer. The flood switch controls the hot and cold water filling your washer tub to ensure the proper amount of water. You may need to replace this part if you...
$47.95
In Stock
Order within the next 12 hrs and your part ships today!
This is an end cap for a dishwasher rack. This part is about 2.5 inches long, is black, and is made of plastic. You may need to replaced this part if it is broken, or if your dishwasher rack continuou...
$13.95
In Stock
Order within the next 12 hrs and your part ships today!
This is a washer inlet valve assembly for your dishwasher. This valve allows water to flow into your dishwasher at the proper rate. If your dishwasher tub is not filling with water or filling when the...
$42.95
In Stock
Order within the next 12 hrs and your part ships today!
This mounting bracket is manufactured to secure your dishwasher to your countertop. Mounting brackets should be installed so the dishwasher doesn’t tip forward. You can fit the bracket to either the c...
$34.95
In Stock
Order within the next 12 hrs and your part ships today!
Questions And Answers for GDF510PSJ0SS
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
3 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Alex
March 3, 2020
My dishwasher trips the circuit breaker during the cycle. What could be some of the reasons? The door gasket? Plug?
For model number GDF510PSJ0SS
Hello Alex, Thank you for the question. We will need a bit more information. What cycle is the breaker being tripped in (fill,wash,drain)? Is the door loose or not locking securely? In most cases a breaker is tripped due to a surge from the Door Switches. The Gasket is non electrical and will not effect the breaker. You can test the electrical plug and the door switches with a multi meter to check for continuity. Please submit a new question if you have any follow ups. We are looking forward to hearing from you.
I turn the dishwasher on but no water comes inside the machine. So what can I do to fix the problem
For model number GDF510PSJ0SS
Hello Carl, Thank you for the question. With the information provided, we suggest testing the water inlet valve. Use your multitester to test the valve for continuity. Set the device to the ohms setting x 1. Touch each of the meter's probes to a terminal. If you receive a reading of infinity, it means the valve's solenoid is faulty and the valve needs to be replaced. If your valve has two solenoids (four terminals), test the second pair of terminals in the same manner. If either pair of terminals receives a result of infinity, replace the water inlet valve. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
My dishwasher is not filling with water. Utilizing service mode, I confirmed that the drain pump is functional, and the spray arms/circulation pump are activating. I have replaced the water inlet valve, but it did not resolve the issue. The flood switch the next likely culprit?
For model number GDF510PSJ0SS
Hi Ricardo, thank you for reaching out. The problem seems to be with the Flood Switch and you may need to replace it, the part number is PS8690623. The flood switch controls the hot and cold water filling your washer tub to ensure the proper amount of water. If you need help placing an order for it, please feel free to give us a call. We look forward to hearing from you!
Took off the kickplate, diconnected the wires and removed the whole door by lifting straight up, removing spring wires from hinges. Once door is disconnected from the machine, removed one hinge by removing bolt. Slid gasket into place, secured hinge back in place, then reconnected wires at bottom, replaced hinge spring wires and slid d
... Read moreoor back down onto hinges. Now that we know how to do it, could do it in 15 min to half hour.
We tried cleaning out the filter and it clogged with a huge amount of gunk. We removed the gunk, scrubbed the filter, and tried running the dishwasher, but still no water. That took over an hour (not counting the time the dishwasher spent running). Then we tried your diagnosis center and it pointed to the flood switch or the water valve.
... Read moreI extracted the flood switch (another 30-60 minutes) to check it, and it also contained gunk and (significantly) did not rattle, which made me suspect the flood switch was the problem, so I ordered one. Once the replacement arrived, I checked it and the flood switch rattled, confirming that it should work properly. I spent 30-45 minutes installing it, plus the filter assembly and racks I had to remove to access it. Ran the dishwasher and everything came out sparkling clean. I don't know where the gunk came from, but if you aren't getting water and the filter is full of gunk, check the flood switch.
Didn't actually do the compete repair but got close. Pulled out dishwasher, disconnected and checked continuity on the existing heating element (about 16 ohms) the new element was also about 16 ohms. This indicates they both were working fine and no need for replacement. Next step would have been to swap the elements would have been
... Read moresimple. Tried to replace main board as well, still not the issue so giving up and replacing the dishwasher. It wasn't the high temp cut off thermostat either incidentally and no error codes in maintenance mode. Check continuity of your existing element before ordering to save aggravation.
