Parts That Fix Maytag Washer 7MMVWC416FW0 Spinning Issues
Spinning Issues is a commonly reported symptom for the 7MMVWC416FW0 Maytag Washer, and we have put together a full guide
... Read more
on how to fix this. This advice is based on feedback from people who own this exact appliance. We have listed the most common parts for your 7MMVWC416FW0 Maytag Washer that will fix Spinning Issues.
We have included repair instructions, and helpful step-by-step video tutorials. If you are experiencing this issue, not to worry, DIYers just like you have fixed this, and shared their experience to help you!
Read less
Spinning Issues is a commonly reported symptom for the 7MMVWC416FW0 Maytag Washer, and we have put together a full guide on how to fix this.
This advice is based on feedback from people who own this exact appliance. We have listed the most common parts for your 7MMVWC416FW0 Maytag Washer that will fix Spinning Issues.
We have included repair instructions, and helpful step-by-step video tutorials. If you are experiencing this issue, not to worry, DIYers just like you have fixed this, and shared their experience to help you!
Fixes Symptom 39% of time
This drive hub kit (part number W10528947VP) is for washers. Drive hub kit W10528947VP connects the spin basket to the spin shaft that spins the basket. The kit may include multiple parts; refer to your parts diagram for a complete list of parts included. Unplug the washer before installing this part. Wear work gloves to protect your hands.
$
28.29
In Stock
PartSelect Number PS6012095
Manufacturer Part Number W10528947
Replacing your Whirlpool Washer Drive Hub Kit
Customer Repair Stories
Waher would not spin and made noise
Removed center cap, loosened center nut, pry lightly up on center plate and tap center nut. Center plate comes loose, remove nut, remove center plate. Pry lock clip out and remove, remove screw with electric impact (screw drive will work, but slower), remove drive hub. Install new drive hub (be sure to check screw hole alignment), install
... Read more
and tighten screws (be sure to follow a skip pattern and bring it down even), install lock clip, install center plate, install and tighten nut, replace center cap. Done!
Read less
-
Andrew from SYLVANIA, OH
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers, Wrench (Adjustable)
17 of 20 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Hub had warn its grooved teeth off and washer wouldnt agitate
ordered hub and it shipped quickly. I was able to put the hub in place and screw the screws in. you want to tighten them down slowly and go around to each screw tightening a little at a time so you don't break the hub. as you tighten the screws down the hub slides down flush. its impossible to just push the hub on with your hand. Buttoned
... Read more
it back up and got caught up on laundry. good day when the washer is fixed.
Read less
-
Allison from RICHFORD, NY
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
56 of 73 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 32% of time
This is a replacement clutch assembly or cam kit for your washer. The clutch assembly is mounted on the drive shaft on the bottom of your washer. You may need to replace the clutch assembly if the splines on the clutch assembly are stripped and the washer is making noise, or if you are having problems with the wash and spin cycles. You will need to access the bottom of the washer for this repair. It is easiest to if you disconnect your washer from both the water and power source, and lay it on its back. The clutch assembly contains 6 parts, and all are included with the kit. It is also important to change out the entire assembly, rather than individual pieces.
$
37.76
In Stock
PartSelect Number PS10057144
Manufacturer Part Number W10721967
Replacing your Whirlpool Washer Washer Drive Pulley
Customer Repair Stories
Making loud noises.
The video you sent me was very helpful told me the exact tools I needed and how to do it.
Thank you
Thank you
-
Roy from BROOKLYN, NY
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
15 of 21 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Noise, grinding sounds. Wash tub stopped turning but motor and cycles kept functioning. Process of elimination, must be the clutch assembly.
Easy, just followed the repair video. Recommend also ordering the drive belt. Bought one locally during my repair.
-
David from BLOOMINGTON, IN
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers, Socket set
58 of 80 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 19% of time
This 6-pin shift actuator is an authentic OEM part supplied directly by the manufacturer for use in washing machines. The shift actuator is responsible for controlling the movement of the washer transmission during the different phases of the wash cycle. This allows the washer to switch between agitating and spinning modes. Signs of a faulty shift actuator include the washer failing to agitate or spin, incomplete cycles where the washer gets stuck in one phase, or unusual noises during operation
$
49.32
In Stock
PartSelect Number PS11769864
Manufacturer Part Number W10913953
Replacing your Whirlpool Washer 6 Pin Shift Actuator
Customer Repair Stories
screeching noise at times,Wouldn't spin out
Tip washer on its front removed belt guard and belt. Removed shift actuator. Put new actuator on, put belt and guard back on, put back panels on and it was fixed.
-
Jerry from LENGBY, MN
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Pliers, Screw drivers
1 of 2 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
4 BELT
Fixes Symptom 6% of time
This drive belt connects the washing machine’s motor to the system, helping spin the basket. If the washer is having trouble spinning, the belt may need replacement. Ensure compatibility before ordering and unplug the washer before installation.
$
44.95
In Stock
PartSelect Number PS12578772
Manufacturer Part Number W11239857
Customer Repair Stories
Screeching noise when starting the washing cycle. Especially with heavy loads.
The belt in this model is underneath the washing machine. Disconnect water lines and power cords, set up the drain hose in a bucket to avoid water spilling on the floor, tip the washing machine on its back, remove two bolt screws holding the plastic covering the belt, remove the old belt, and install the new one.
-
Armando from UNION CITY, CA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Socket set
10 of 13 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 3% of time
This includes the Tub Seal
$
178.73
In Stock
PartSelect Number PS16220910
Manufacturer Part Number W11454372

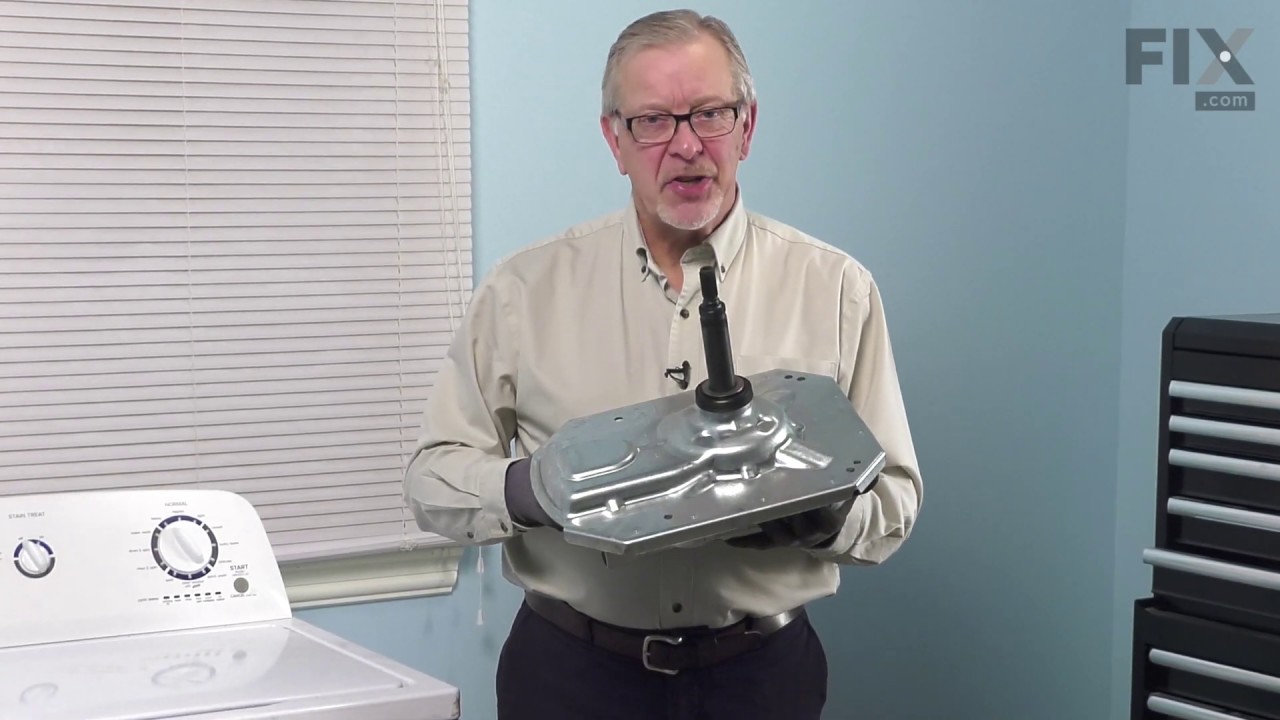

Replacing your Whirlpool Washer Gear Case
Customer Repair Stories
Noise, all the lubricant had leaked from the gearcase.
DO NOT do this repair from the top. The only thing needed to be removed from the top of the machine is the agitator and retaining clip. After removing these items, lay the machine on its front, on a table if you have a friend who will help. Remove the back cover. Simply disconnect the wiring, remove the water pump, the tub locking mec
... Read more
hanism, the belt, and motor. Remove the four bolts holding the gearcase. It should come out with little effort. Remove the old tub seal. There should be a new one on the replacement. Lubricate the new seal. Dishwashing liquid worked great. Move the drive wheel from the old gearcase to the replacement part. All the parts originally removed will only fit one way. Reverse all the removal steps and you be should be ready to go. My only problem with the replacement was there was no groove in the new part spline for the tub retaining clip. Seemed to be no problem since the agitator is bolted on so the tub is going nowhere.
Read less
-
larry from SOD, WV
-
Difficulty Level:Very Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
15 of 15 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The upper bearing in the gearcase became rusty & very noisy due to shaft seal leakage.
Changing the gear case is a basic R and R operation since the gear case is a complete assembly riveted together. It is a bit challenging though getting to it because you have to totally disassemble the entire washer nearly every nut, bolt and screw. Fortunately the washer is fairly easy to work on and I am very mechanically inclined, but
... Read more
I did cheat a bit by watching some U-tube videos first. I couldn't find the same exact model washer as mine on U-tube but there were enough similar units to obtain the basic procedure. A thing I do when disassembling things is to take pictures of the way it's put together before removing stuff. It goes without saying that you first have to disconnect the power, the water hoses and it helps to get the washer out away from the wall so you can work around it. You have to remove the top, back panels, and the inner and outer tubs first. After removing the inner and outer tubs I turned the washer upside down in order to gain access to the gear case so I wouldn't have to stand on my head or lay down. Remove everything attached to the gear case (take picture) and use a strap wrench (or a strong friend) to hold the large pulley while removing the retaining nut. To remove the condenser (large round thing in black plastic retainer) rotate it counter clockwise and lift out, it doesn't snap out. I was very happy to see that the new gear case came with the shaft seal already installed so with a small amount of liquid dish soap around the outside of the rubber it allowed a nice slip fit back into the outer tub. All the parts that were removed pretty much will only fit one way so you don't have to worry too much about how everything goes back together. After reassembly and hooking up the washer again be sure to perform the calibration procedure before you turn on the water. Instructions came in the box with the gear case. Here is a side bar: I am 76, my grandson and I replaced the gear case in just a few hours, It's no big deal. Now for the interesting part, when I ordered the replacement gear case by the old part number I was told it had been superseded by a new number so when the new unit arrived I discovered that the shaft and seal looked different so hopefully the water leaking into bearing won't happen again. I was going to drill the old gear case apart and replace the bad bearing so I am glad I didn't because the shaft and seal would continue to leak and ruin the bearing again so don't try that. One thing I would like to mention about this company from which I ordered the part was the amazing delivery, only 36 hours. I ordered the part Sunday evening late and Tuesday morning early it arrived. Wow, blew me away, also I live in California and apparently the company is in Nova Scotia, no sales tax, Woo Hoo.
Read less
-
Craig from ANAHEIM, CA
-
Difficulty Level:Really Easy
-
Total Repair Time:More than 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
20 of 23 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
