Parts That Fix Kenmore Washer 11020232711 Spinning Issues
Spinning Issues is a commonly reported symptom for the 11020232711 Kenmore Washer, and we have put together a full guide
... Read more
on how to fix this. This advice is based on feedback from people who own this exact appliance. We have listed the most common parts for your 11020232711 Kenmore Washer that will fix Spinning Issues.
We have included repair instructions, and helpful step-by-step video tutorials. If you are experiencing this issue, not to worry, DIYers just like you have fixed this, and shared their experience to help you!
Read less
Spinning Issues is a commonly reported symptom for the 11020232711 Kenmore Washer, and we have put together a full guide on how to fix this.
This advice is based on feedback from people who own this exact appliance. We have listed the most common parts for your 11020232711 Kenmore Washer that will fix Spinning Issues.
We have included repair instructions, and helpful step-by-step video tutorials. If you are experiencing this issue, not to worry, DIYers just like you have fixed this, and shared their experience to help you!
Fixes Symptom 32% of time
This is a replacement clutch assembly or cam kit for your washer. The clutch assembly is mounted on the drive shaft on the bottom of your washer. You may need to replace the clutch assembly if the splines on the clutch assembly are stripped and the washer is making noise, or if you are having problems with the wash and spin cycles. You will need to access the bottom of the washer for this repair. It is easiest to if you disconnect your washer from both the water and power source, and lay it on its back. The clutch assembly contains 6 parts, and all are included with the kit. It is also important to change out the entire assembly, rather than individual pieces.
$
37.76
In Stock
PartSelect Number PS10057144
Manufacturer Part Number W10721967

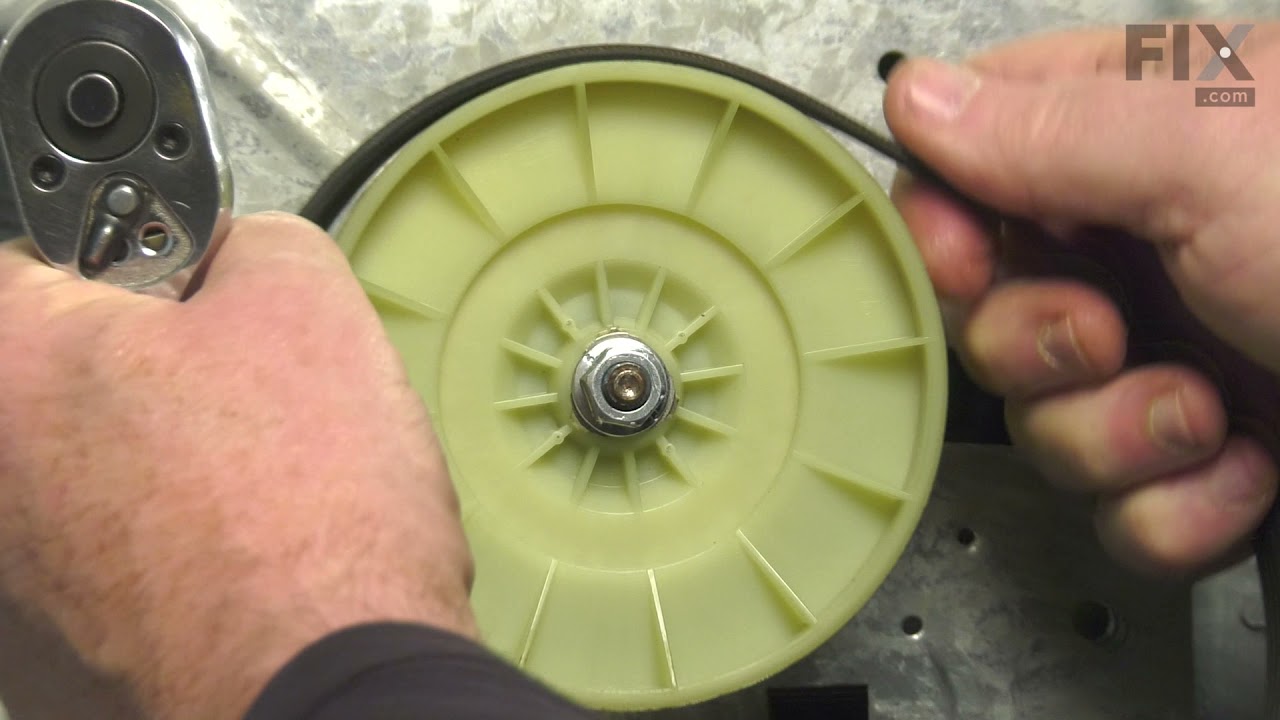

Replacing your Whirlpool Washer Washer Drive Pulley
Customer Repair Stories
Making loud noises.
The video you sent me was very helpful told me the exact tools I needed and how to do it.
Thank you
Thank you
-
Roy from BROOKLYN, NY
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
15 of 21 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Noise, grinding sounds. Wash tub stopped turning but motor and cycles kept functioning. Process of elimination, must be the clutch assembly.
Easy, just followed the repair video. Recommend also ordering the drive belt. Bought one locally during my repair.
-
David from BLOOMINGTON, IN
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers, Socket set
58 of 80 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 19% of time
The main drive belt is designed to ride on the pulley until the basket gets up to speed.
$
28.33
In Stock
PartSelect Number PS11747978
Manufacturer Part Number WPW10006384
Replacing your Whirlpool Washer Washer Drive Belt
Customer Repair Stories
squeal and chirping while in risne / spin mode
Removed belt cover from bottom of the transmission , remove old belt, clean the pulleys ,and re install new belt. The new belt fits tighter so it did a few time to get the belt fully seated. Re install belt cover.
-
Thomas from GRAIN VALLEY, MO
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver
10 of 10 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Smelled a burning odor occasionally
First, I checked the belt before ordering and then decided to order the belt, capacitor, and clutch assembly (if I needed to replace). I replaced the belt noticing the older belt came right off and new one was tighter going on. I replaced the capacitor since I had it handy and it can be known to cause this smell also. After setting wash
... Read more
er back up and started a cycle I noticed the spin cycle would not start properly so I thought maybe the capacitor (new one) was faulty or just not the exact match even though it was said to be. I replaced my older capacitor back on and again ran cycle and it ran great. Thus I decided to send the parts which were not used. I would recommend this site as I have used them in the past before on other items. They ship fast and have a great return policy if parts not used.
Read less
-
Paul from E NORTHPORT, NY
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Socket set, Wrench (Adjustable)
16 of 22 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 19% of time
This 6-pin shift actuator is an authentic OEM part supplied directly by the manufacturer for use in washing machines. The shift actuator is responsible for controlling the movement of the washer transmission during the different phases of the wash cycle. This allows the washer to switch between agitating and spinning modes. Signs of a faulty shift actuator include the washer failing to agitate or spin, incomplete cycles where the washer gets stuck in one phase, or unusual noises during operation
$
49.32
In Stock
PartSelect Number PS11769864
Manufacturer Part Number W10913953
Replacing your Whirlpool Washer 6 Pin Shift Actuator
Customer Repair Stories
screeching noise at times,Wouldn't spin out
Tip washer on its front removed belt guard and belt. Removed shift actuator. Put new actuator on, put belt and guard back on, put back panels on and it was fixed.
-
Jerry from LENGBY, MN
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Pliers, Screw drivers
1 of 2 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 15% of time
This kit is used for replacing the agitator directional cogs (Agitator Dogs, Agitator Repair Kit, Washer Agitator Dogs, Agitator Dog Ears). The agitator is what creates the thrusting motion in your washer to tumble your clothes during the washer cycle. Your agitator will rotate one way, and not the other. The agitator dogs are what prevent the agitator from rotating in both directions, while allowing it to rotate in one direction. Your agitator cogs may be malfunctioning if you can manually rotate the agitator in both directions. If broken they will need to be replaced. Cogs can be found by simply removing the softener dispenser and then removing the agitator cap. The are attached to the agitator. This replacement part features 4 agitator directional cogs. There are 4 cogs per package that are made up of high-quality plastic. This part comes in white/beige.
$
7.31
In Stock
PartSelect Number PS388034
Manufacturer Part Number 80040
Replacing your Whirlpool Washer Agitator Directional Cogs
Customer Repair Stories
top half of agitator did not move during wash cycle
pull off softner dispenser, pop off agitator cap by inserting straight screw driver into small slot, remove bolt inside agitator with socket wrench and long extension, pull agitator straight up off shaft, place agitator on floor, with feet holding bottom half pull top half apart from bottom half by pulling straight up, note direction of o
... Read more
ld cogs remove and replace with new, reassemble
Read less
-
dennis from new stanton, PA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Socket set
281 of 328 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
washer wouldn't agitate
First pry off the cap of the agitator. Then using a socket remove the bolt that holds the plastic cup in place. Remove this cup by prying it loose from the two tabs that hold it in place. Once this cup is removed you can get to the broken cogs.
Slip the new cogs into the underside of the cup, and slide the cup back down in the a ... Read more gitator housing using the slots on the side for a guide. (You may want to remove the entire agitator and assemble everything upside down, then flip it all back over to mount, so the cogs don't fall out).
Tighten the bolt, snap the cap back in place on top of the agitator and your'e done. Easy repair.
Slip the new cogs into the underside of the cup, and slide the cup back down in the a ... Read more gitator housing using the slots on the side for a guide. (You may want to remove the entire agitator and assemble everything upside down, then flip it all back over to mount, so the cogs don't fall out).
Tighten the bolt, snap the cap back in place on top of the agitator and your'e done. Easy repair.
Read less
-
mike from Kent, WA
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Socket set
943 of 1036 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 7% of time
$
72.74
In Stock
PartSelect Number PS11703288
Manufacturer Part Number W10780045
Customer Repair Stories
My tub would hit the sides of the washer during spin cycle.
Followed youtube video. The repair was easy and fast.
-
ELIZABETH from HARLINGEN, TX
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
11 of 13 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Shaking violently during spin cycle
Replaced the 4 suspension rods/springs. Only disconnect and replace one at a time. The tub will fall out if you disconnect and replace more than one rod/spring at a time.
-
Harold from MELROSE, FL
-
Difficulty Level:Easy
-
Total Repair Time:1- 2 hours
24 of 29 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 4% of time
This kit included the cam, 4 dogs and bearing.
$
13.95
In Stock
PartSelect Number PS334648
Manufacturer Part Number 285809
Replacing your Whirlpool Washer Washer Agitator Cam Kit
Customer Repair Stories
Agitator was skipping, making grinding noise
The repair was easy, first you take out the fabric softener dispenser, you will then see a plastic cap at the bottom. the plastic cap pulls right out. Once you remove plastic cap you will see the top of a 11mm screw. Use an 11mm socket with 6 inch extension to remove the screw. The screw is a fine thread so it takes alot of turns to unscr
... Read more
ew. After removing screw the whole agitator should pull out of washing machine. The agitator has two parts, lets just say a top and a bottom. Once out of the machine turn the agtitator upside down and tap the top part with a rubber mallet, it will fall off easily and the cam will come out with it. Once you have done this you will see how easy it is to replace the cam and put everything back together. My washer works like new. my only trouble was finding the part, until i found this web-site Part Select, The Whirlpool site did not even offer a diagram for my washer. So thank you Part Select from me and coworkers for the part and fast delivery. I can now wash my clothes again. Yeah !!!
Read less
-
Jeffrey from Williamstown, NJ
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
52 of 54 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dog ears worn down; upper agitator not moving
Pulled off the dispenser. Used socket set to remove bolt. Removed entire agitator out of washer. Placed both feet on bottom of agitator and then pulled up on the upper agitator. It took some muscle due to the years of washer use. I used a flat-head screwdriver to weaken the plastic clips holding down the old bearing-driven cam. Once
... Read more
I got the upper agitator off, the guts were easy to pull out. Then I just re-assembled with the 3 new parts (the Cam Driven, the Dog Ears, and the Bearing-Driven Cam).
Read less
-
shawn from la jolla, CA
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Socket set
116 of 132 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 2% of time
This agitator kit does NOT include the fabric softener dispenser (part 8575076A). That must be ordered separately.
$
140.95
In Stock
PartSelect Number PS334557
Manufacturer Part Number 285565
Customer Repair Stories
Top portion of the agitator finally quit working. Cams that engage the action wore down.
Repair was simple, after finding the correct part from Partselect. Exact match. Old part out with removal of one bolt, new agitator assembly installed in five minutes. Works great and saved me from buying a new washer. Cost of repair about $80.00, replace washing machine, about $600.00.
-
Edwin from Plainfield, IL
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:15 - 30 mins
-
Tools:Socket set
34 of 39 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Top section of agirtator not working
Removed top cap and one nut from agirtator then removed complete assembly. Replaced new assembly nut and cap.
-
Vincent from York, ME
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Socket set
38 of 47 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 2% of time
This gear case is for washers. The Gear case drives the agitator and spins the basket in the washer. Unplug the washer before installing this part. Wear work gloves to protect your hands.
$
177.95
In Stock
PartSelect Number PS16220913
Manufacturer Part Number W11454741
Replacing your Whirlpool Washer Gear Case
