JVM3160DF4WW General Electric Microwave - Overview

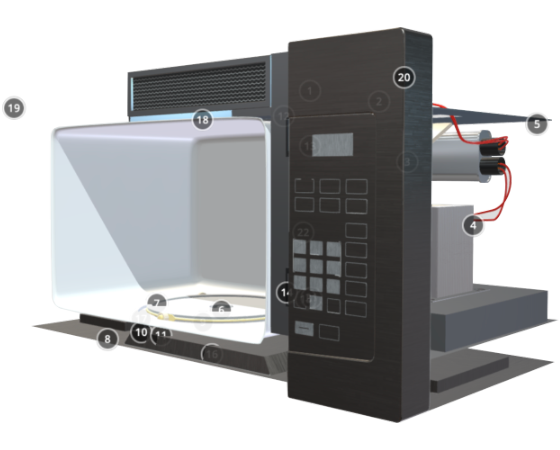

New Feature 3D Model Viewer 3D Model Viewer

Sections of the JVM3160DF4WW

[Viewing 4 of 4]
Keep searches simple, eg. "belt" or "pump".
Charcoal Filter – Part Number: WB02X11550
Charcoal Filter
★★★★★
★★★★★
(18)
PartSelect #: PS8746150
Manufacturer #: WB02X11550
This is the replacement charcoal filter for your microwave. It is silver and black in color and measures approximately 10 inches by 2 ½ inches. The charcoal filter removes cooking odors from the air ...
$22.89
  In Stock
Light Bulb - 40W – Part Number: WB25X10030
Light Bulb - 40W
★★★★★
★★★★★
(24)
PartSelect #: PS8767095
Manufacturer #: WB25X10030
This is a genuine replacement 40 watt bulb for a microwave. The bulb is meant to light up the underside of the microwave or inside of your microwave when the door is open or during use. If your bulb i...
$37.70
  In Stock
Handle Support - White – Part Number: WB06X10943
Handle Support - White
★★★★★
★★★★★
(18)
PartSelect #: PS8753758
Manufacturer #: WB06X10943
This part is a replacement handle support for your microwave door. The handle support is the part that connects the handle to the microwave door. Occasionally the handle supports can become loose and ...
$54.54
  In Stock
Grease Filter – Part Number: WB06X10608
Grease Filter
★★★★★
★★★★★
(6)
PartSelect #: PS1022452
Manufacturer #: WB06X10608
Sold individually. Most appliances require 2.
$65.99
  In Stock
Light Socket – Part Number: WB06X10929
Light Socket
★★★★★
★★★★★
(7)
PartSelect #: PS8753748
Manufacturer #: WB06X10929
This light socket is for your microwave and is designed to hold the light bulb. If the light bulb is not working, and the bulb has not burned out, it may be a problem with the light socket. This part ...
$36.13
  In Stock
Microwave Fuse – Part Number: WB27X11138
Microwave Fuse
★★★★★
★★★★★
(4)
PartSelect #: PS3486694
Manufacturer #: WB27X11138
This fuse is for microwaves. Fuse protects the microwave from damage by shutting off the microwave if there's a power surge.
$57.89
  In Stock
Microwave Glass Turntable Tray – Part Number: WB39X10032
Microwave Glass Turntable Tray
★★★★★
★★★★★
(8)
PartSelect #: PS3486810
Manufacturer #: WB39X10032
This turntable tray is for microwaves. Turntable tray rotates in the center of the microwave to help ensure the food cooks evenly. Follow the instructions in the owner's manual when installing this part.
$149.39
  In Stock
Microwave Fan Thermostat – Part Number: WB27X11213
Microwave Fan Thermostat
★★★★★
★★★★★
(3)
PartSelect #: PS8754628
Manufacturer #: WB27X11213
$31.31
  In Stock
DOOR LATCH – Part Number: WB10X32782
DOOR LATCH
★★★★★
★★★★★
(7)
PartSelect #: PS12725571
Manufacturer #: WB10X32782
$8.06
  In Stock
INCANDESCENT LAMP, 30W – Part Number: WB25X10029
INCANDESCENT LAMP, 30W
★★★★★
★★★★★
(5)
PartSelect #: PS8767094
Manufacturer #: WB25X10029
Singlular Bulb
$22.79
  In Stock
ROTATING RING Assembly – Part Number: WB06X10625
ROTATING RING Assembly
★★★★★
★★★★★
(9)
PartSelect #: PS1016203
Manufacturer #: WB06X10625
$35.40
  In Stock
SWITCH MICRO MONITOR – Part Number: WB24X10205
SWITCH MICRO MONITOR
★★★★★
★★★★★
(4)
PartSelect #: PS8754455
Manufacturer #: WB24X10205
$60.14
  In Stock

Questions And Answers for JVM3160DF4WW

Ask our experts a question about this model and we'll get back to you as soon as possible!

27 questions answered by our experts.
Sort by:
  • 1
  • 2
  • 3
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Frank
February 21, 2020
How do you replace a handle support
For model number JVM3160DF4WW
PartSelect logo
Hello Frank, Thank you for your question. You will need to remove the door lining to get access to the support, in order to remove the door lining so you can gain access to the screws holding the door handle in place, you will need to use a putty knife. Start at one side along the inside of the lining around the window edge and gently put the putty knife between the door lining and the door to release the tabs holding it place. The side where the door is hinged, you will need to pry the lining lose from the back side. Once this is complete you can remove the inner lining. With the lining removed you should see the screws holding the door in place. Sometimes the door handle may be held with 4 screws and you may not see the other 2 screws. If you remove the 2 screws and the handle does not come off you will need to remove the inner door frame with a putty knife using the same procedure as with the door lining so you can release the other screws. We hope this helps.

12 people found this helpful.

Was this helpful?
Thank you for voting!
Betty
January 7, 2020
Does this model come with the metal vent filters? I was told they are accessories by the dealer.
For model number JVM3160DF4WW
PartSelect logo
Hello Betty, thank you for your question. The filters for this unit are PartSelect Number: PS1022452. These filters go under the microwave. Please enter the part number into the site for current price and availability. Good luck with your repair!

5 people found this helpful.

Was this helpful?
Thank you for voting!
Kim
September 18, 2021
I keep blowing the fuse when i open or shut door switches test good everything tested good i can test without digging deeper what do you think
For model number JVM3160DF4WW
PartSelect logo
Hello Kim, Thank you for your inquiry. If the fuse keeps blowing in your microwave and you've already tested the 3 door switches, we would next recommend checking the magnetron and the capacitor. For safety reasons, since the microwave capacitor can still store electricity even when the microwave is unplugged, it is usually advised that you discharge the capacitor before any attempt at repair. We have included a link on how to do so. https://www.partselect.com/Microwave+discharge-capacitor+repair.htm Good luck with your repair.

3 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Steven
December 29, 2023
ON the underside of the oven are two screens. I have managed to pretty much destroy one of them. It measures 7.5" X 5"What is the part number so I may order it.
For model number JVM3160DF4WW
PartSelect logo
Hi Steven, thank you for reaching out. The part you are looking for is the grease filter, part number PS1022452. We hope this information is useful!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Charles
February 15, 2020
There was not a metal grease filter nor the charcoal filter with my GE microwave. Is this the way you ship them? How do I get these items?
For model number JVM3160DF4WW
PartSelect logo
Hello Charles, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number: PS8746150 for the Charcoal Filter and PartSelect Number: PS1022452 for the Grease Filter. You can enter the part number into the website and there will be a add to cart button to proceed with the order and choose your shipping method. You can pay with Credit card or PayPal on the site. We hope this helps.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
  • 1
  • 2
  • 3

Common Symptoms of the JVM3160DF4WW

[Viewing 2 of 2]
Won’t turn on
Fixed by
these parts
Fixing Fixing
Show All
Door not closing properly
Fixed by
these parts
Fixing Fixing
Show All
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
bulb burned out under the microwave that lights the cooktop underneath
got a screwdriver and opened the glass door over the light bulb - changed the bulb and put the glass door back with the screwdriver.
Parts Used:
Light Bulb - 40W
  • Margaret from TOANO, VA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Screw drivers
28 of 51 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Had to replace charcoal filter
Open the front cover by pushing it at the top (where it says “Push”), lifting up and pushing back on top edge of the old filter. Pull it out. Installing the new one is basically just the reverse of those steps! That simple.

Old filter did seem to be a little thicker (filter material), but the new one was the exact same dimensions, so it went in properly. Wish the filter material was white, so you knew just how dirty it was actually getting. But... :-D
Parts Used:
Charcoal Filter
  • Jared from SIERRA VISTA, AZ
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
15 of 20 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Tripping circuit breaker, broken micro switch locking pin
1. Unplug unit
2. Open door, remove two screws above the top trim piece, slide and remove trim.
3. Remove screw behind control board and top left corner, then release from position.
3b. Unplug all wire terminations and set control panel aside.
4. Remove two screws securing latch board, lift and rotate board out of position, remove three micro switches, xfer monitor switch actuator from lower pin in old board and insert in new. Install new door switches and reverse procedure to complete repair.

Note 1. Take care to located new latch board so holding tabs line up, pass through frame, and openings for door tangs line up with openings in frame before securing with screws.

Note 2. A long magnetic screwdriver is helpful.
Parts Used:
Microwave Door Latch Housing
  • Charles from CLAYTON, NJ
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
12 of 17 people found this instruction helpful.
